VESDA-EVEP-A00-P Product Guide
www.xtralis.com 83

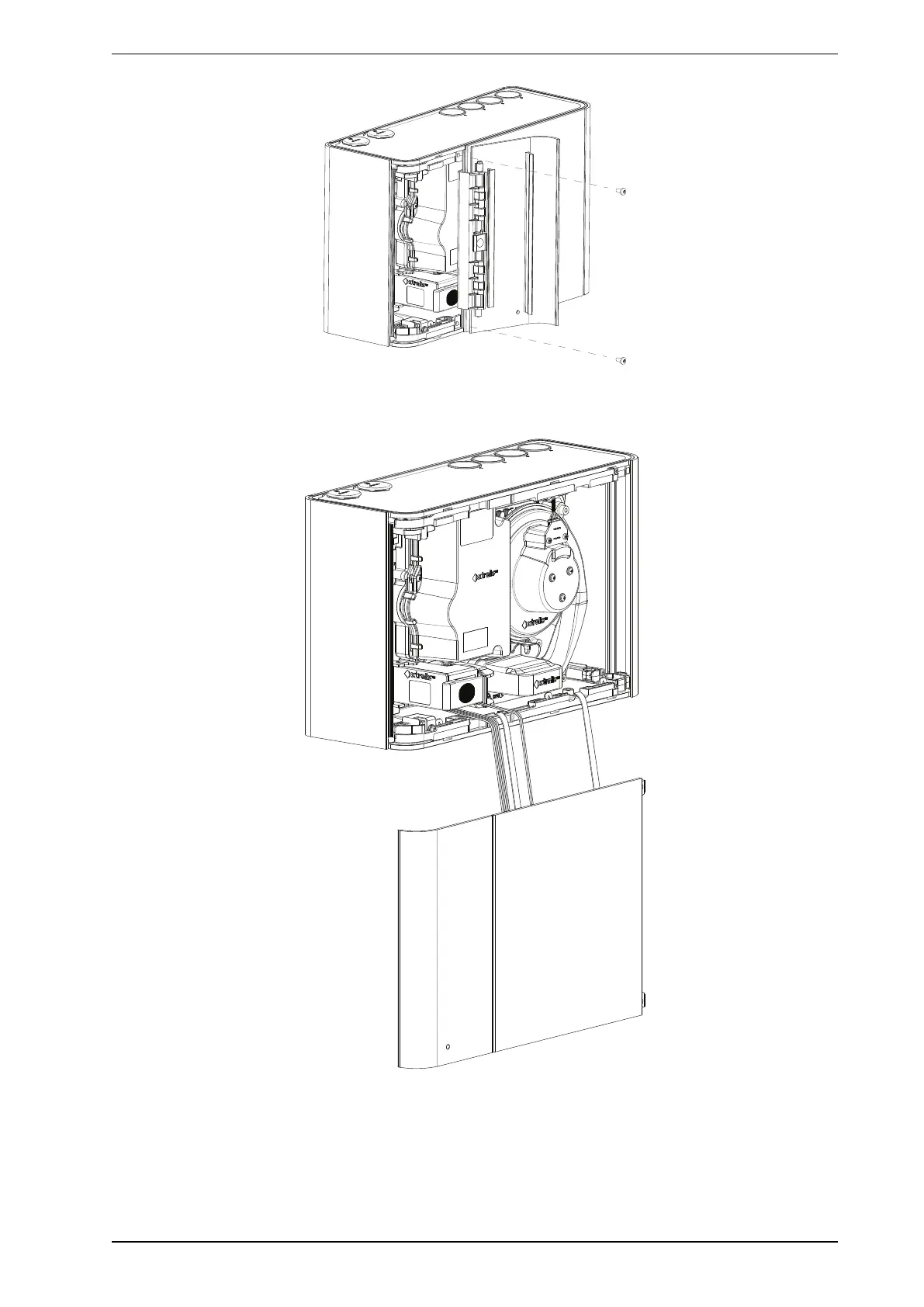

Figure7-8: Fascia removal - remove screws
3. Remove the fascia and allow it to hang by the two tether straps.
Figure7-9: Fascia hanging on two tethers
