THE PRESENCE OF DROPS OF WATER, ON THE OTHER HAND, COULD INDI-
CATE THAT WATER IS INFILTRATING. CONTACT THE PIAGGIO AFTER-SALES
SERVICE NETWORK.
03_23

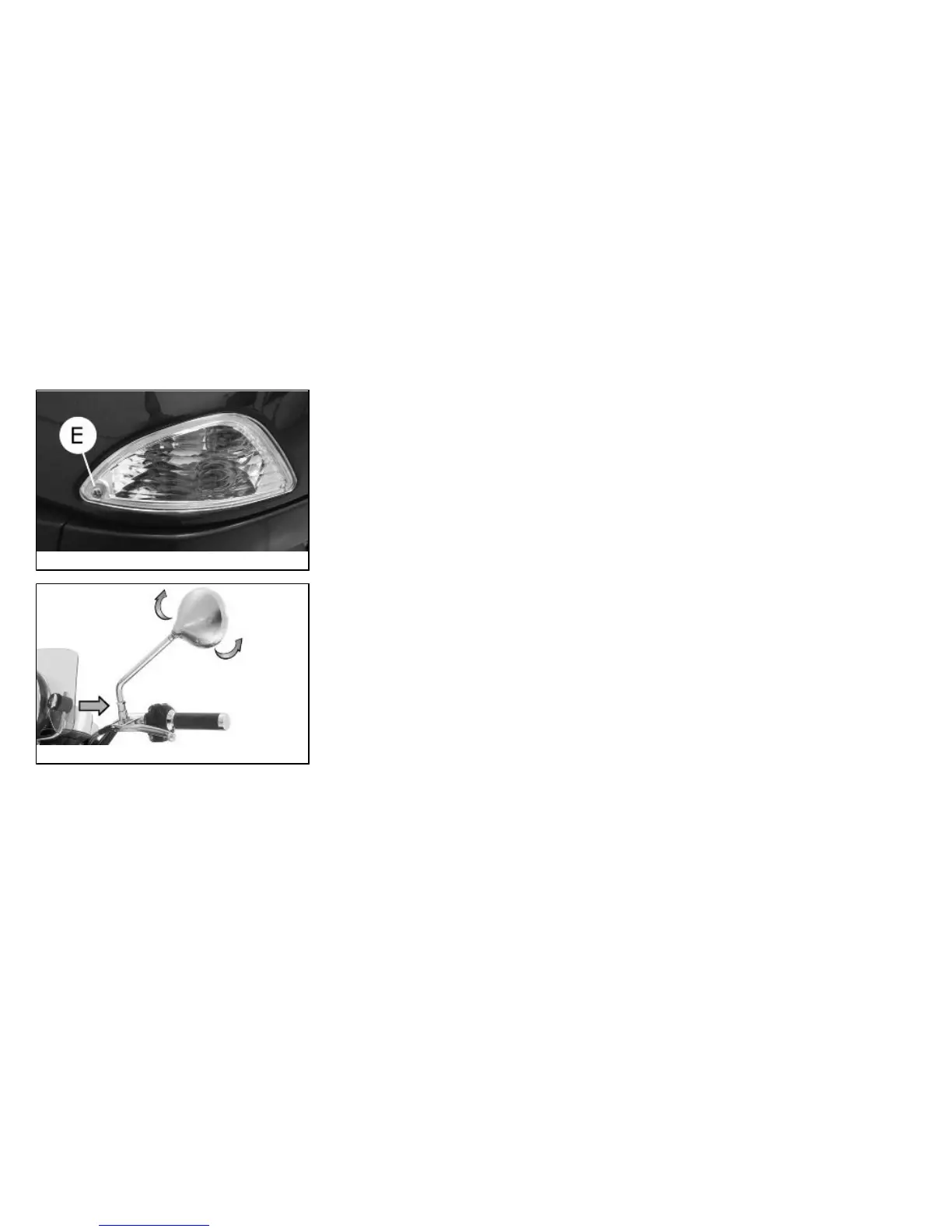

Rear turn indicators (03_23)
To gain access to the turn indicator bulbs, remove the fastening screws «E».
The bulbs have a bayonet coupling, to remove them press gently and twist anticlock-
wise about 30°. To refit follow the same steps but in reverse order.
03_24
Rear-view mirrors (03_24)
The mirrors can be set to the desired position by adjusting the mirror frame.
To remove the rear-view mirror loosen the lock nut indicated in the figure and turn the
supporting stem anticlockwise.
39
