BOTH PADS IS IN THE REGION OF 1.5 MM, BOTH PADS MUST BE CHANGED.
IT IS RECOMMENDED TO CARRY OUT THIS OPERATION AT AN AUTHORISED
SERVICE CENTRE AS SOON AS POSSIBLE.
AFTER FITTING NEW BRAKE PADS DO NOT USE THE VEHICLE UNTIL YOU
HAVE ACTIVATED THE BRAKE LEVER REPEATEDLY TO POSITION THE PADS
AND RESTORE THE LEVER STROKE TO ITS CORRECT POSITION.
CAUTION
THE BRAKING ACTION SHOULD BEGIN AFTER ABOUT 1/3 OF THE BRAKE
LEVER STROKE.
03_27

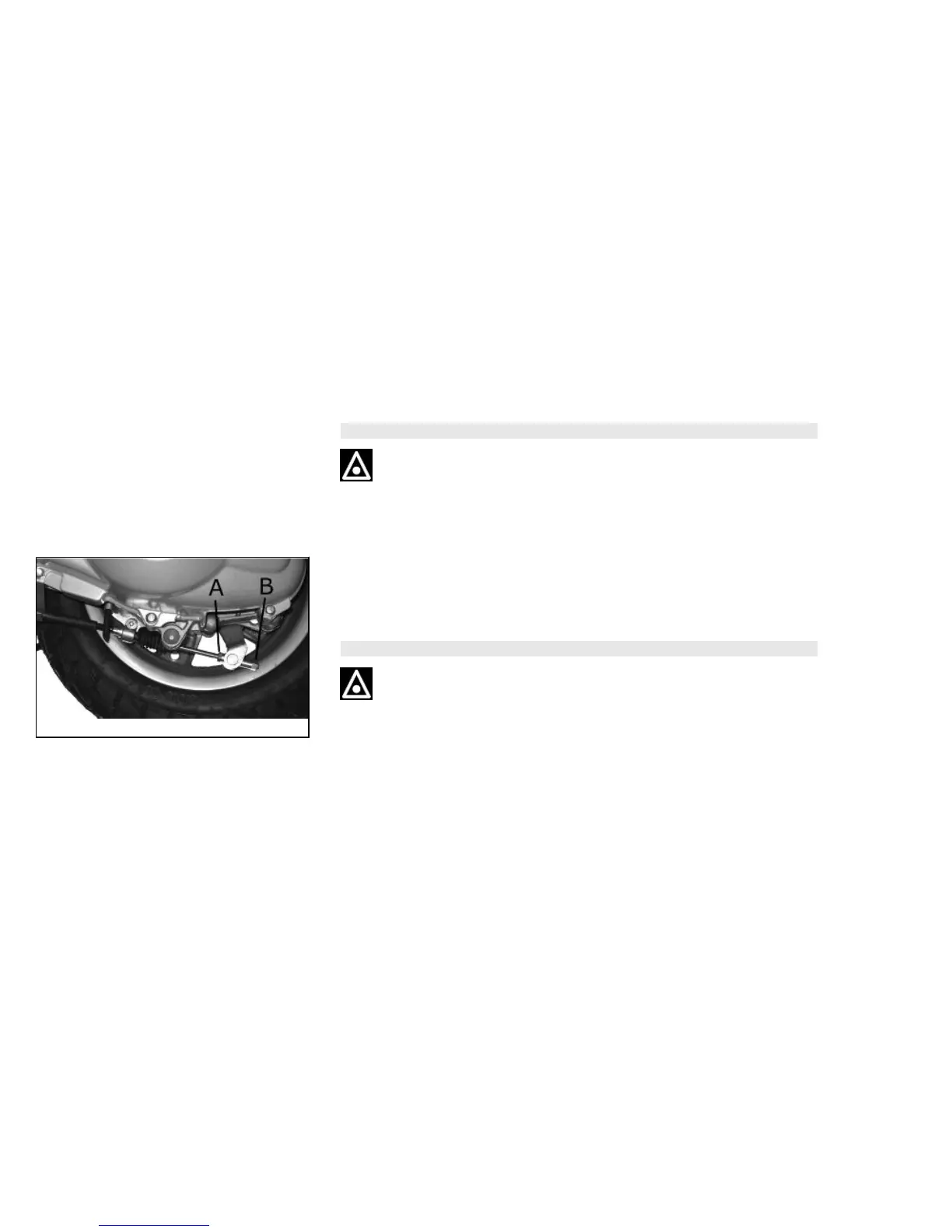

Rear drum brake (03_27)
Operate adjustment nut «B» and loosen lock nut «A» shown in the figure. Note that
when the throttle is in idle the wheel should rotate free. After the adjustment, screw
lock nut «A».
CAUTION
THE BRAKING ACTION SHOULD BEGIN AFTER ABOUT 1/3 OF THE BRAKE
LEVER STROKE.
