Rim - hub fixing nuts (front-rear) 20 ÷ 27
Shock absorbers
Removal

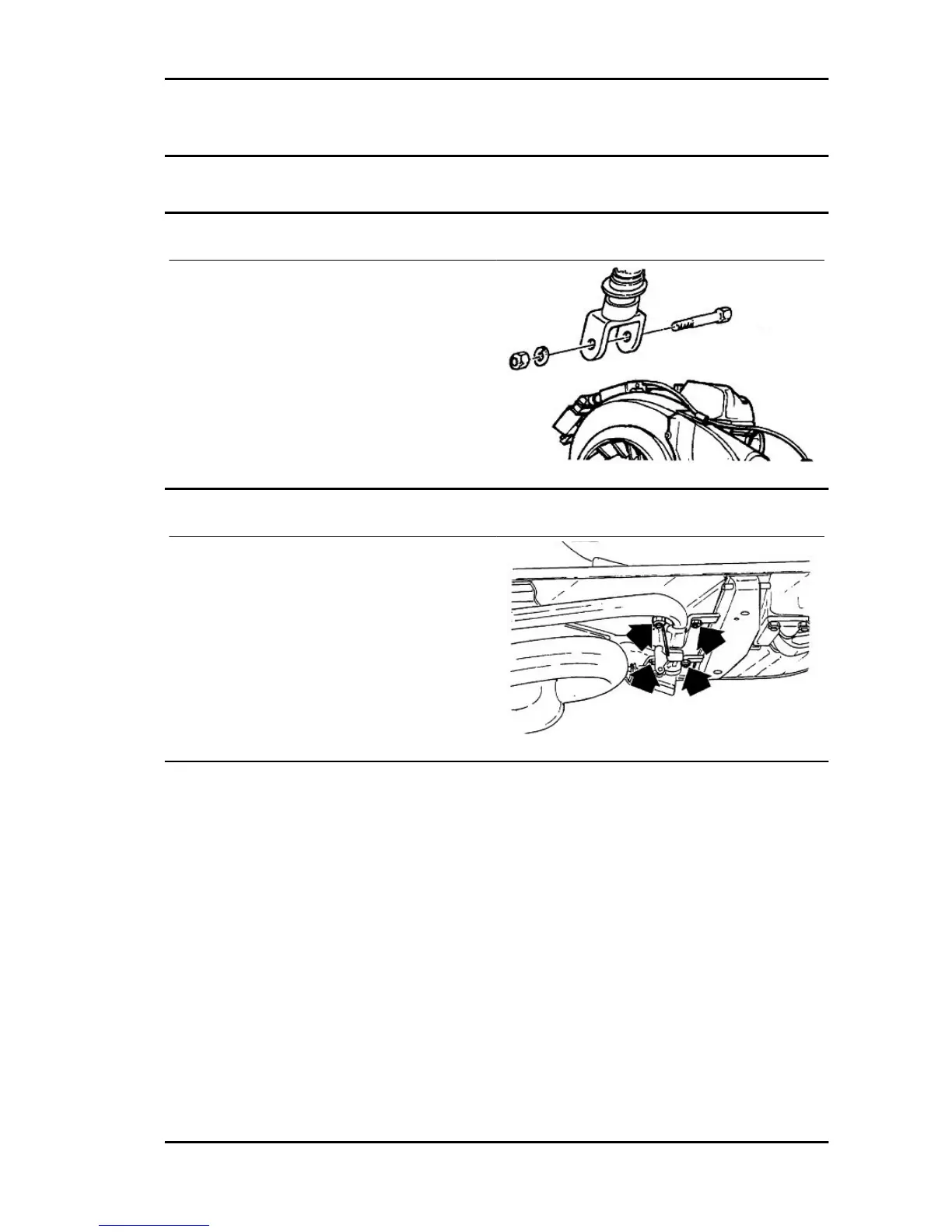

For the rear shock-absorber replacement it is nec-
essary to remove the engine - shock-absorber
fixing bolt as shown in the figure.
Remove the gasoline and oil tanks, then remove
the shock absorber upper fixing in the underseat
compartment housing.
Centre-stand
Detach the return spring from the centre stand, re-
move the 4 fasteners shown in the figure.
Vespa PX 150 USA Suspensions
SUSP - 79
