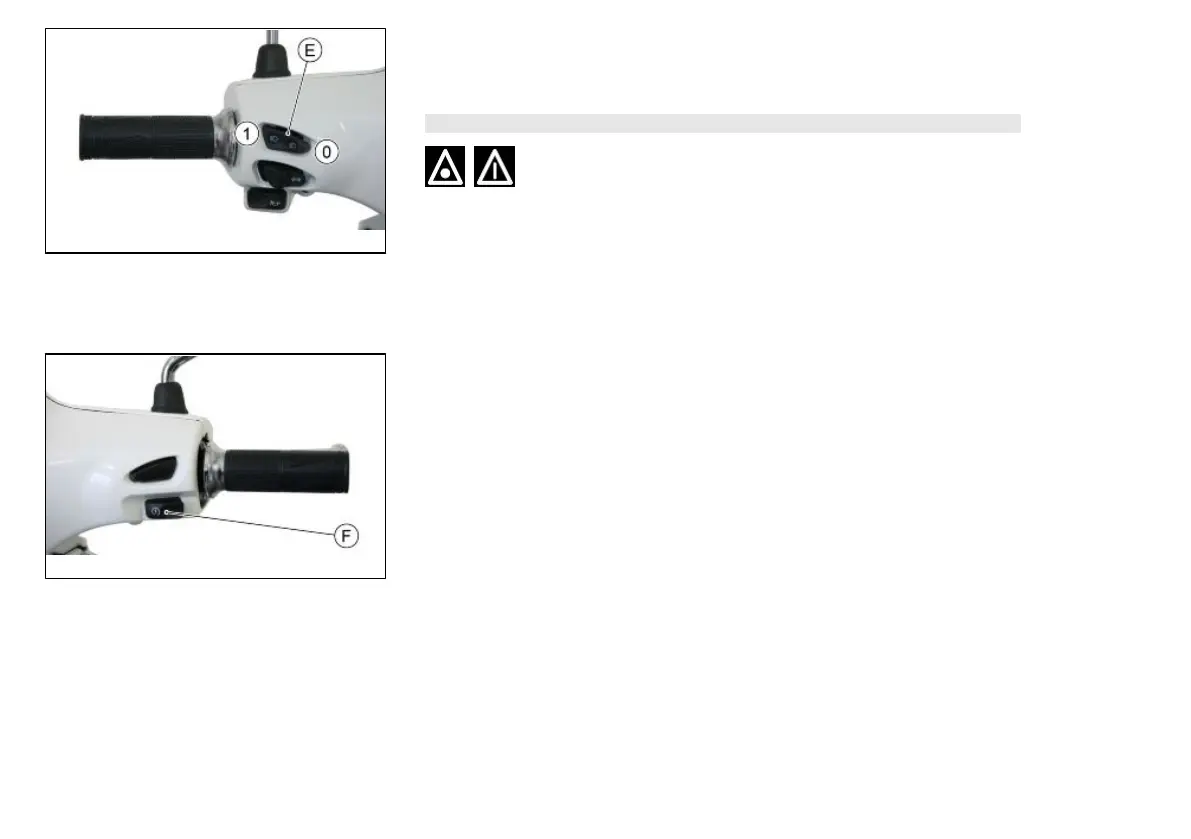

Light switch (01_09)
When the light switch «E» is set to «0», the low-beam light is on. When set to «1», the
high-beam light is activated.
CAUTION
DO NOT PLACE, TRANSPORT OBJECTS AND/OR CLOTHES OVER THE FRONT
HEADLIGHT ASSEMBLY, WHEN THE HEADLIGHT IS TURNED ON OR OFF.
FAILURE TO FOLLOW THIS PRECAUTION MAY CAUSE OVERHEATING AND
THE SUBSEQUENT FUSION OF THE GLASS.
01_10
Start-up button (01_10)
To start the engine, pull either brake lever and then press the starter button «F».
The vehicle is equipped with special starter procedure management. The starter motor
remains active until the engine starts even if switch «F» is released.
Keep one of the two brakes operated (front or rear) so as to not interrupt the starter
procedure.
The throttle grip must remain in the minimum position, because any other position
inhibits the vehicle starter.
The starter motor will remain active for a maximum of 5 consecutive seconds.
The immobilizer system
In order to enhance theft protection, the vehicle is equipped with a «PIAGGIO IMMO-
BILIZER » electronic engine locking device that is activated automatically when the
ignition switch is removed. Upon start-up, the «PIAGGIO IMMOBILIZER» system
15
1 Vehicle

Vespa S 125ie 3Valvole Specifications

General

Fuel System	Electronic Fuel Injection
Transmission	Automatic CVT
Front Brake	200 mm disc
Rear Brake	140 mm drum
Front Tire	110/70 - 11"
Rear Tire	120/70 - 10"
Seat Height	785 mm
Curb Weight	114 kg
Length	1, 770 mm
Width	705 mm
Engine Type	Single-cylinder, 4-stroke
Cooling System	Air cooled
Max Torque	10.2 Nm at 6, 000 rpm
Front Suspension	Single arm with helical spring and hydraulic shock absorber
Rear Suspension	Helical spring with adjustable hydraulic shock absorber
