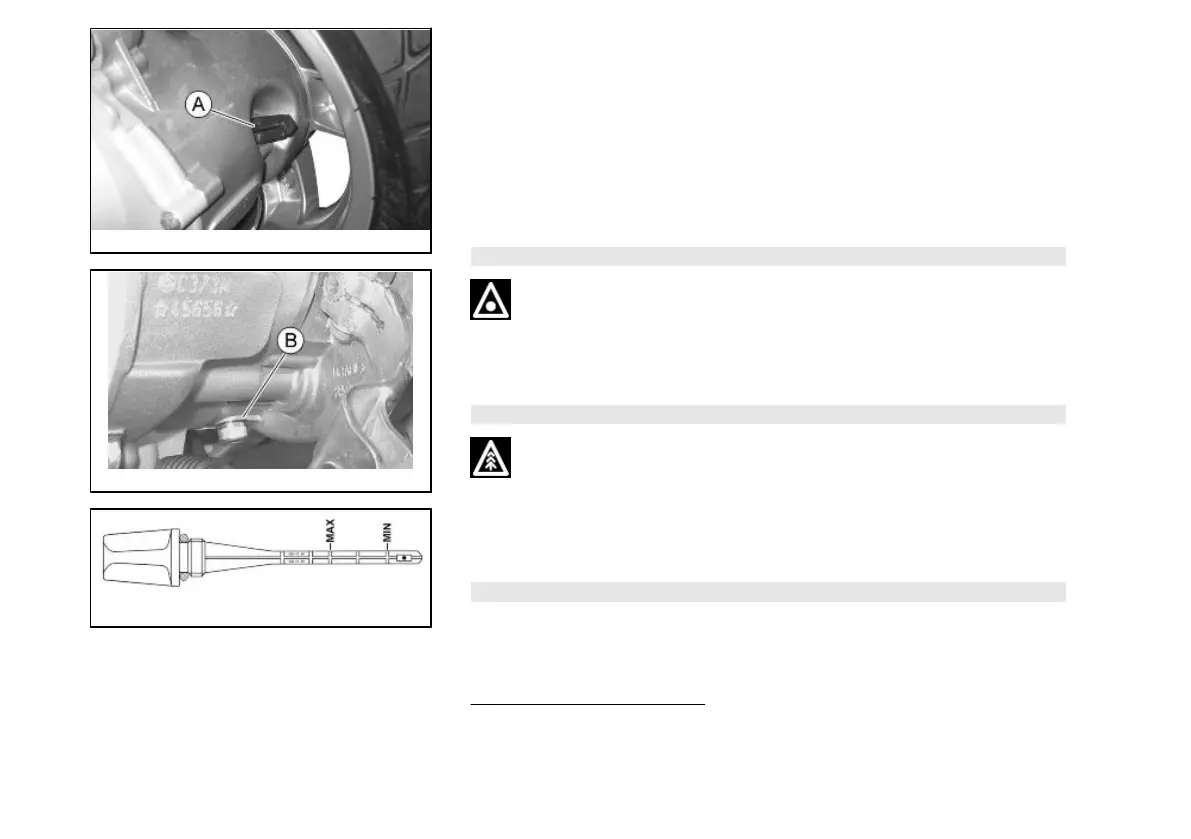

Huboillevel (03_04, 03_05, 03_06)
To check the hub oil level, proceed as follows:
1. Place the vehicle on its stand on a level surface;
2. Unscrew the oil dipstick «A», dry it with a clean rag and then reinsert it,
screwing it tightly into place;
3. Unscrew the dipstick again and check that the oil level barely reaches the
2nd notch from the bottom;
4. Screw the dipstick back into place completely.
The screw «B» is the hub oil drainage plug.
CAUTION
RUNNING THE ENGINE WITH INSUFFICIENT LUBRICATION OR WITH THE IN-
ADEQUATE LUBRICANTS ACCELERATES WEAR AND TEAR OF THE MOVING
PARTS AND CAN CAUSE IRRETRIEVABLE DAMAGE.
CAUTION
USED OILS CONTAIN SUBSTANCES HARMFUL TO THE ENVIRONMENT. FOR
OIL REPLACEMENT, CONTACT AN AUTHORISED SERVICE CENTRE WHICH IS
EQUIPPED TO DISPOSE OF USED OILS IN AN ENVIRONMENTALLY FRIENDLY
AND LEGAL WAY.
N.B.
THE NOTCHES ON THE HUB OIL LEVEL DIPSTICK, EXCEPT THE ONE INDI-
CATING THE MAXIMUM AND MINIMUM LEVEL, REFER TO OTHER MODELS BY
THE MANUFACTURER AND HAVE NO SPECIFIC FUNCTION FOR THIS MODEL.
Recommended products
AGIP GEAR SAE 80W-90
Lubricant for gearboxes and transmissions.
