Vespa S 50 2T 2012 User Manual

Rear turn indicator light bulb Type: Spherical
Power: 12V - 10W
Quantity: 1 RHS + 1 LHS
Stop and tail light bulb Type: Spherical
Power: 12V 21/5W
Quantity: 1
Instrument panel lighting bulbs Type: All glass
Power: 12V 1.2W
Quantity: 3
Warning light bulbs: turn
indicators, low-beam lights, high-
beam lights, low fuel
Type: All glass
Power: 12V - 1.2W
Quantity: 4
03_24
Frontlightgroup (03_24, 03_25, 03_26, 03_27)
To access the headlight bulbs, remove the front of the handlebar cover, as follows:
1. Remove the rear-view mirrors.

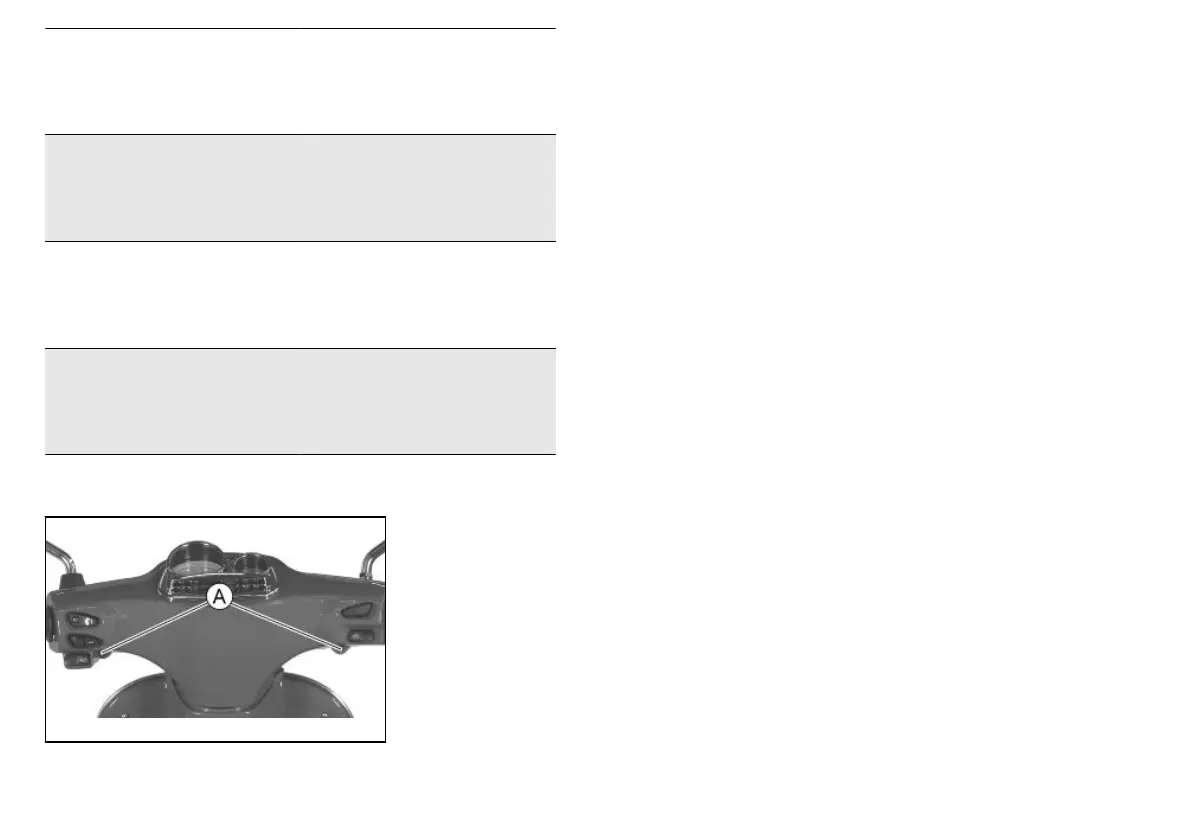

2. Unscrew the 3 screws holding the handlebar cover. The front central screw «B»
and the 2 rear screws «A». Once this is done, the handlebar cover can be removed.
To replace the high-/low-beam headlight bulb:
1. Disconnect the power contacts and remove the rubber protection «C».
2. Remove the retaining clip «D» and slide off the bulb.
45
3 Maintenance

Vespa S 50 2T 2012 Specifications

General

Engine Type	Single cylinder, 2-stroke
Displacement	49.4 cc
Transmission	Automatic CVT
Fuel System	Carburetor
Starter	Electric and kick
Brakes (Rear)	Drum
Tires (Front)	110/70-11"
Tires (Rear)	120/70-10"
Length	1, 770 mm (69.7 inches)
Power	4.35 HP (3.2 kW) @ 8, 000 RPM
Cooling	Air
Fuel Tank Capacity	8.6 liters
Front Suspension	Single arm with helical spring and hydraulic shock absorber
Rear Suspension	Hydraulic monoshock
Width	705 mm
