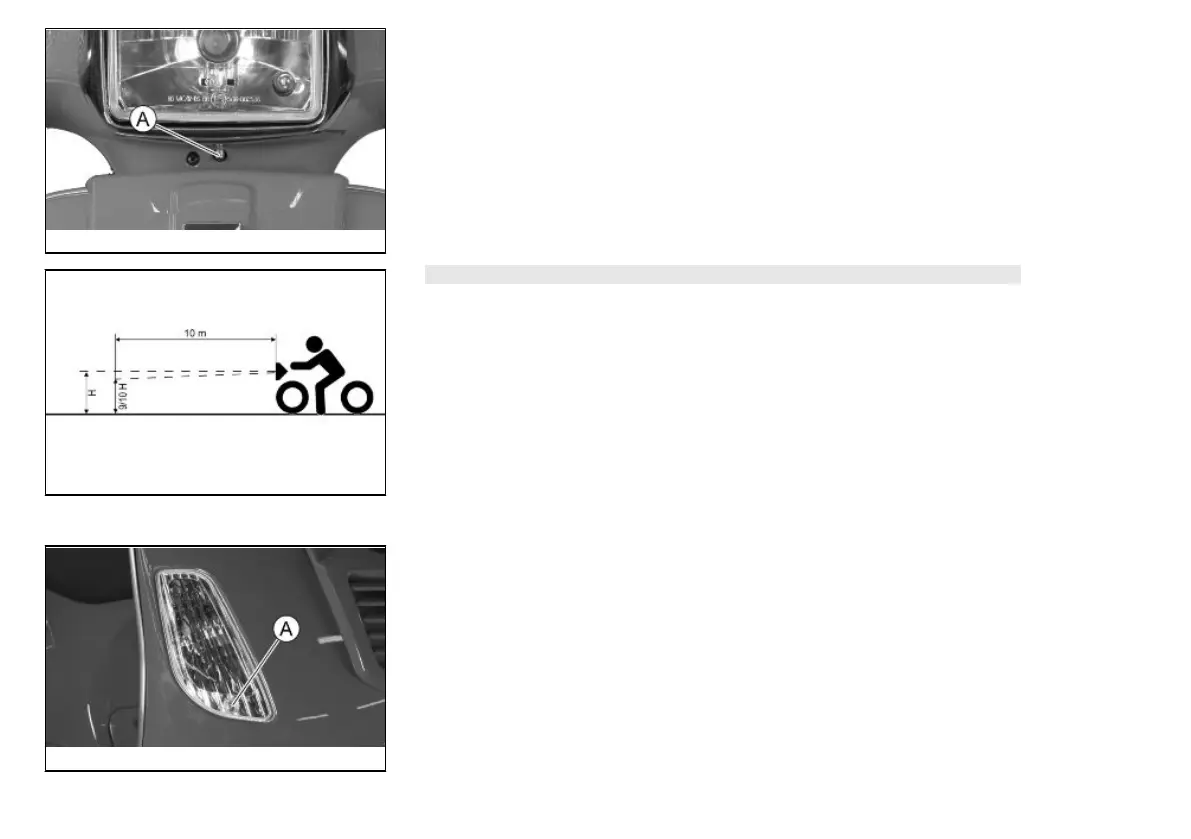

Headlightadjustment (03_28, 03_29)
Proceed as follows:
1. Place the vehicle in running order and with the tyres inflated to the prescribed pres-
sure, on a flat surface 10 m away from a white screen situated in a shaded area,
making sure that the longitudinal axis of the vehicle is perpendicular to the screen;
2. Turn on the headlight and check that the borderline of the projected light beam on
the screen is no higher than 9/10 or lower than 7/10 of the distance from the ground
to the centre of the vehicle's headlamp;
3. If otherwise, adjust the right headlight with screw «A».
N.B.
THE ABOVE PROCEDURE COMPLIES WITH THE EUROPEAN STANDARDS RE-
GARDING MAXIMUM AND MINIMUM HEIGHT OF LIGHT BEAMS. REFER TO THE
STATUTORY REGULATIONS IN FORCE IN EVERY COUNTRY WHERE THE VE-
HICLE IS USED.
03_30
Frontdirectionindicators (03_30, 03_31)
To replace the bulbs:
1. Remove the turn indicator from its fitting by undoing the screw «A».
2. Take out the bulb holder «B» from its fitting by turning it anticlockwise.
3. Press the bulb, turn it anticlockwise and then take it out.
To refit, proceed in reverse order.
47
3 Maintenance

Vespa S 50 2T 2012 Specifications

General

Engine Type	Single cylinder, 2-stroke
Displacement	49.4 cc
Transmission	Automatic CVT
Fuel System	Carburetor
Starter	Electric and kick
Brakes (Rear)	Drum
Tires (Front)	110/70-11"
Tires (Rear)	120/70-10"
Length	1, 770 mm (69.7 inches)
Power	4.35 HP (3.2 kW) @ 8, 000 RPM
Cooling	Air
Fuel Tank Capacity	8.6 liters
Front Suspension	Single arm with helical spring and hydraulic shock absorber
Rear Suspension	Hydraulic monoshock
Width	705 mm
