3.3 Raw water circuit

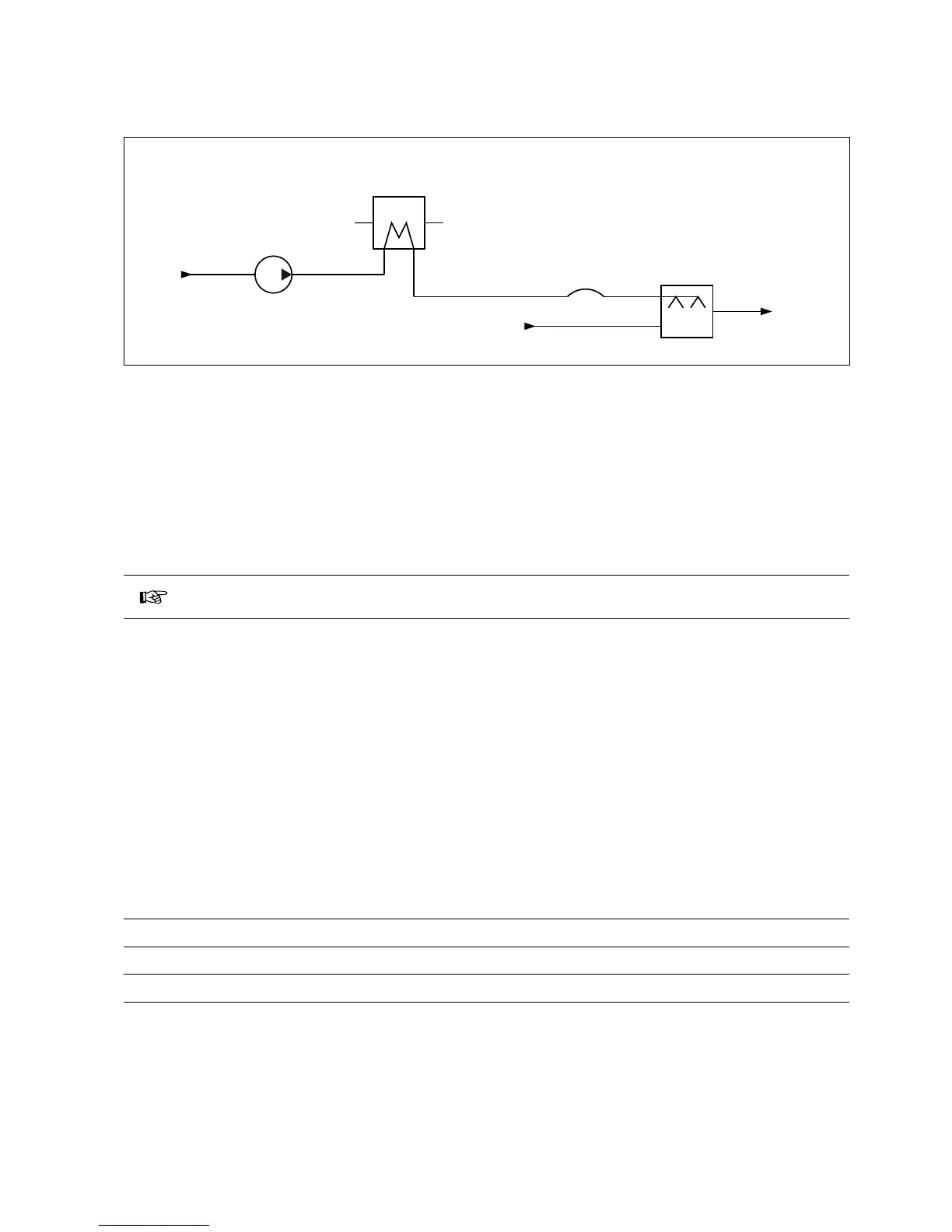

The engine heat exchange circuit is represented in the block diagram below:
The sequence is as follows:
1 the raw water cools the internal coolant circuit is cooled;
2 then the raw water passes a hose connection to the injection point
3 then the exhaust elbow is cooled
4 the the raw water is injected into the exhaust gasses and mixed with the exhaust gasses it goes overboard.
IMPORTANT
If the injection point at the exhaust bend of the engine is situated at a height less than
15 cm (6”) above the waterline an air vent must be installed; see ‘Exhaust system’.
3.3.1 Installation material
The parts needed to connect the raw water supply to the generator set are included in the scope of delivery.
These parts are: - Sea water strainer FTR330,
- Water scoop,
- Ball valve,
- Hose pillar,
- Hose clamps and
- 2 metre hose
For inner diameter:
Generator set model Diameter
GHX 8, GHX 9, GHX 14, GHX 17, GHX 24,GLX 6, GLX 7, GLX 14, GLX 17 19 mm (
3
/
4
in. )
GLX 20, GLX 24 25 mm ( 1 in. )
Sea water pump
Exhaust Gas
