4.2 Electrical system generator
The generator, automatic voltage regulator and circuit breaker are completely pre-wired.

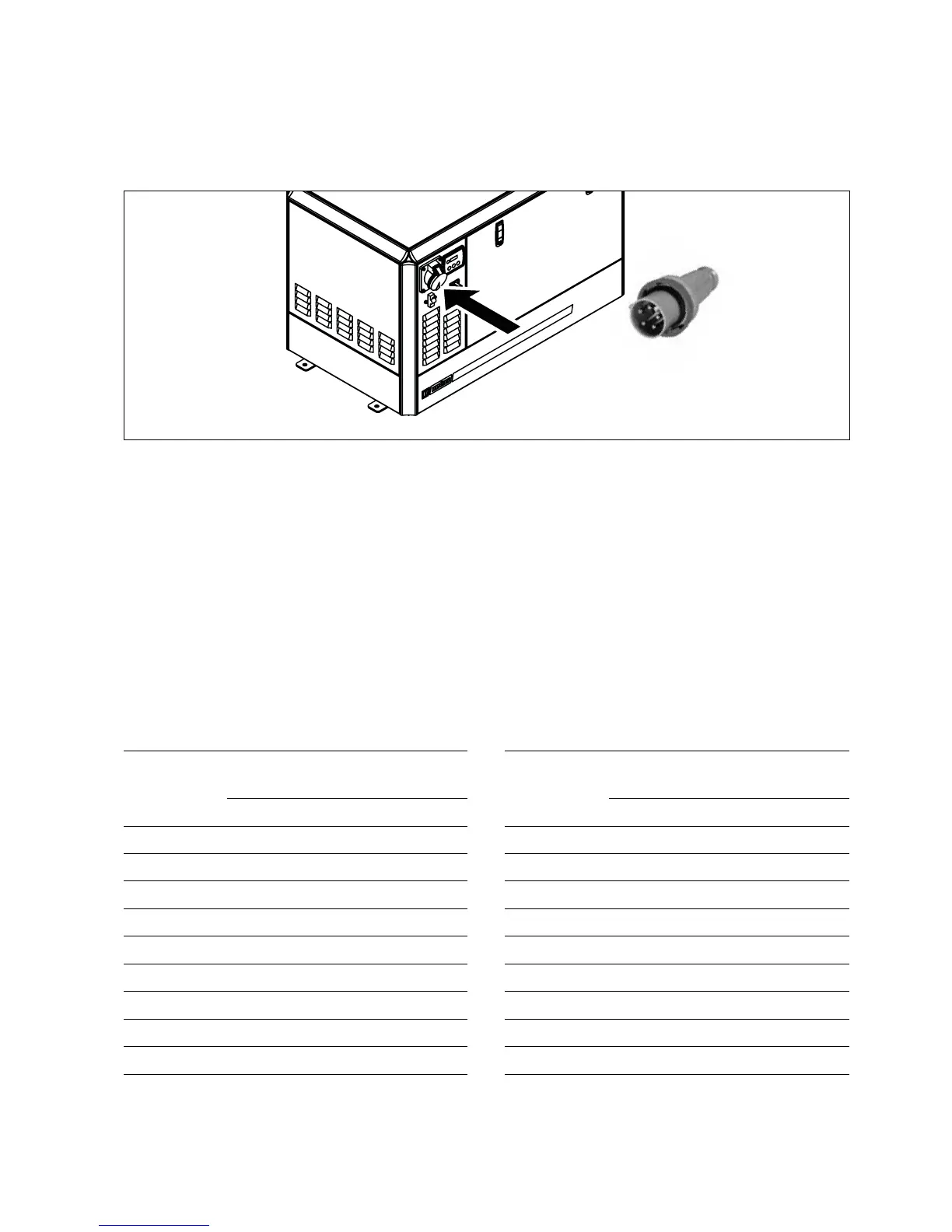

The generator set is equipped with a CEEform socket to hook up the ship’s power supply system to the generator with
the supplied plug.
Depending on the generator output voltage the plug can be:
- P+N+E (unbalanced single phase with neutral),
- 2P+E (balanced single phase),
- 3P+E (3 phase without neutral), or
- 3P+N+E (three phase with neutral).
Current rating of the plug and socket is accommodated to the maximum output current of the generator.
Use a cable with wires with sucient cross-section for the maximum current:
Based on commonly available cable with wires with an insulation temperature rating of 85-90°C use minimum cross-sec-
tions as per table below.
Note a de-rating of 0.82 for an engine room temperature of 60°C and a de-rating of 0.7 for a cable with 4 to 6 wires has
been applied.
Cross-section
in mm
2
Maximum current in Amps at number
of current carrying conductors
AWG
cross-section
Maximum current in Amps at number
of current carrying conductors
2 or 3 4 2 or 3 4
2,5 25 17 12 33 23
4 33 23 10 45 32
6 41 29 8 57 40
10 57 40 6 82 57
16 82 57 4 111 77
25 115 80 2 148 103
35 152 106 1 172 121
50 189 132 0 201 141
70 234 164 00 234 164
