VEVOR RR250 - Wiring Diagram

- 10 -

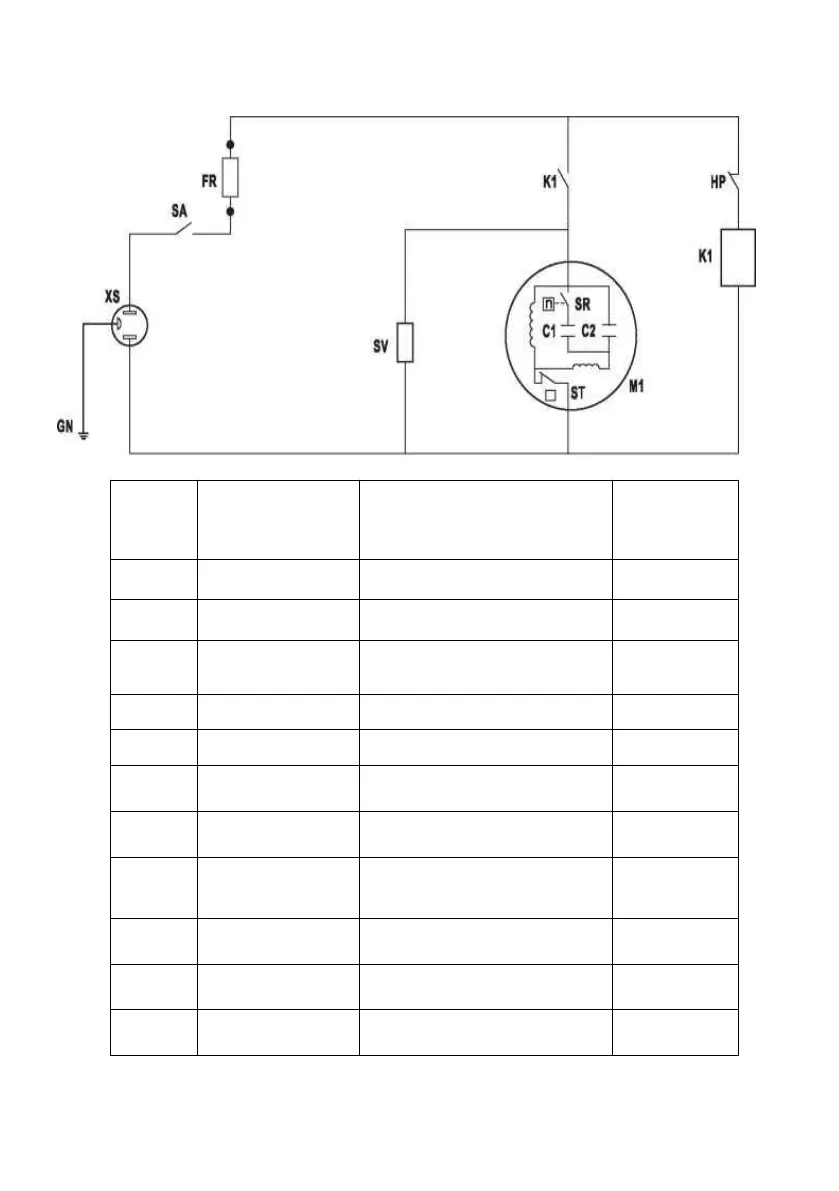

WIRING DIAGRAM
ITEM
GRAPHICS
CODE
DESCRIPTION
REMARKS
1
XS
Power Outlet
2
SA
Power Switches
3
FR
Overload Protection
Device
4
Ml
Compressor Motor
5
SR
Centrifugal Switch
6
Cl
Start Capacitor
7
C2
Running Capacitor
8
ST
Motor Thermal
Protectors
9
HP
High Pressure Switch
10
SV
Solenoid Valve
11
KI
Relay
