- 11 -
I. Install X - axis drag chain plate
Required Parts
Name
QTY
X-axis drag
chain plate
1
M4*6 Screws
2
Step：

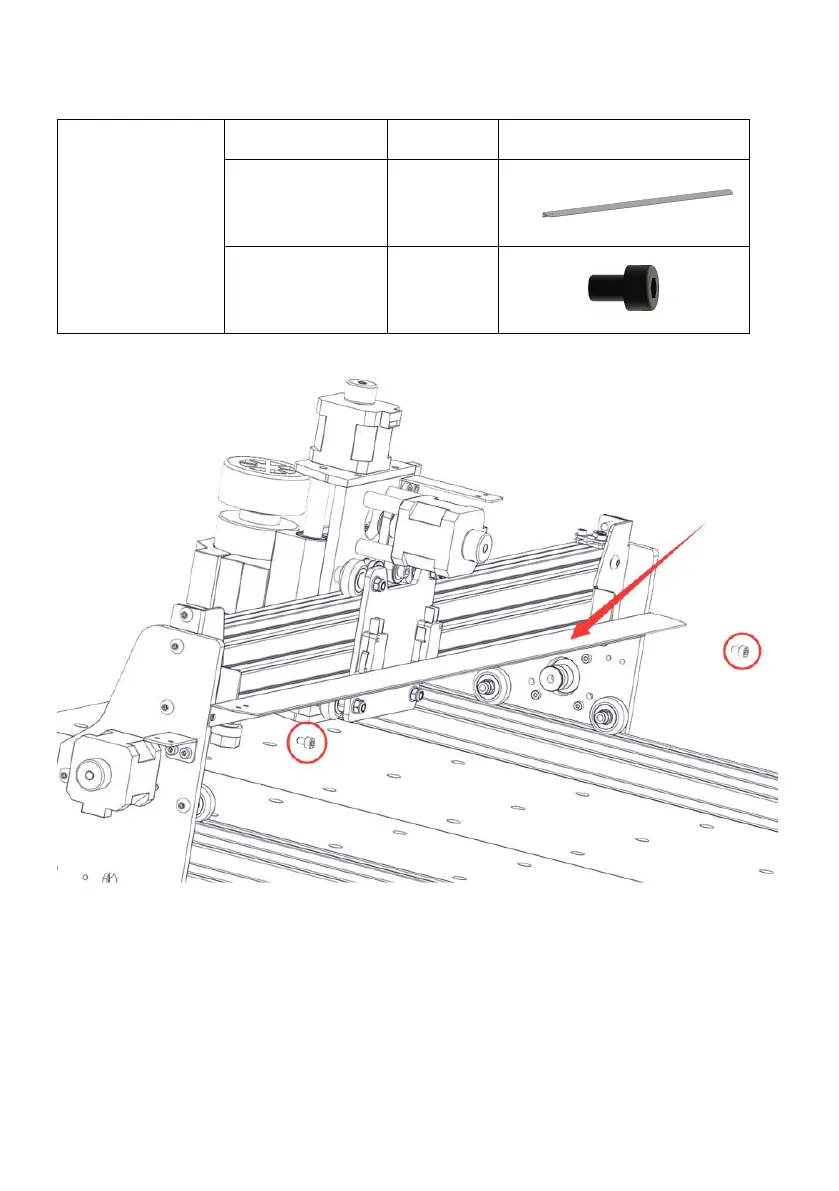

Place the X-axis drag chain plate as shown in Figure 7 and fix it with M4*6
screws.
Figure 7
