VEVOR SC-3 - Cleaning of Parts; Assembly and Maintenance; Assembly Steps

7

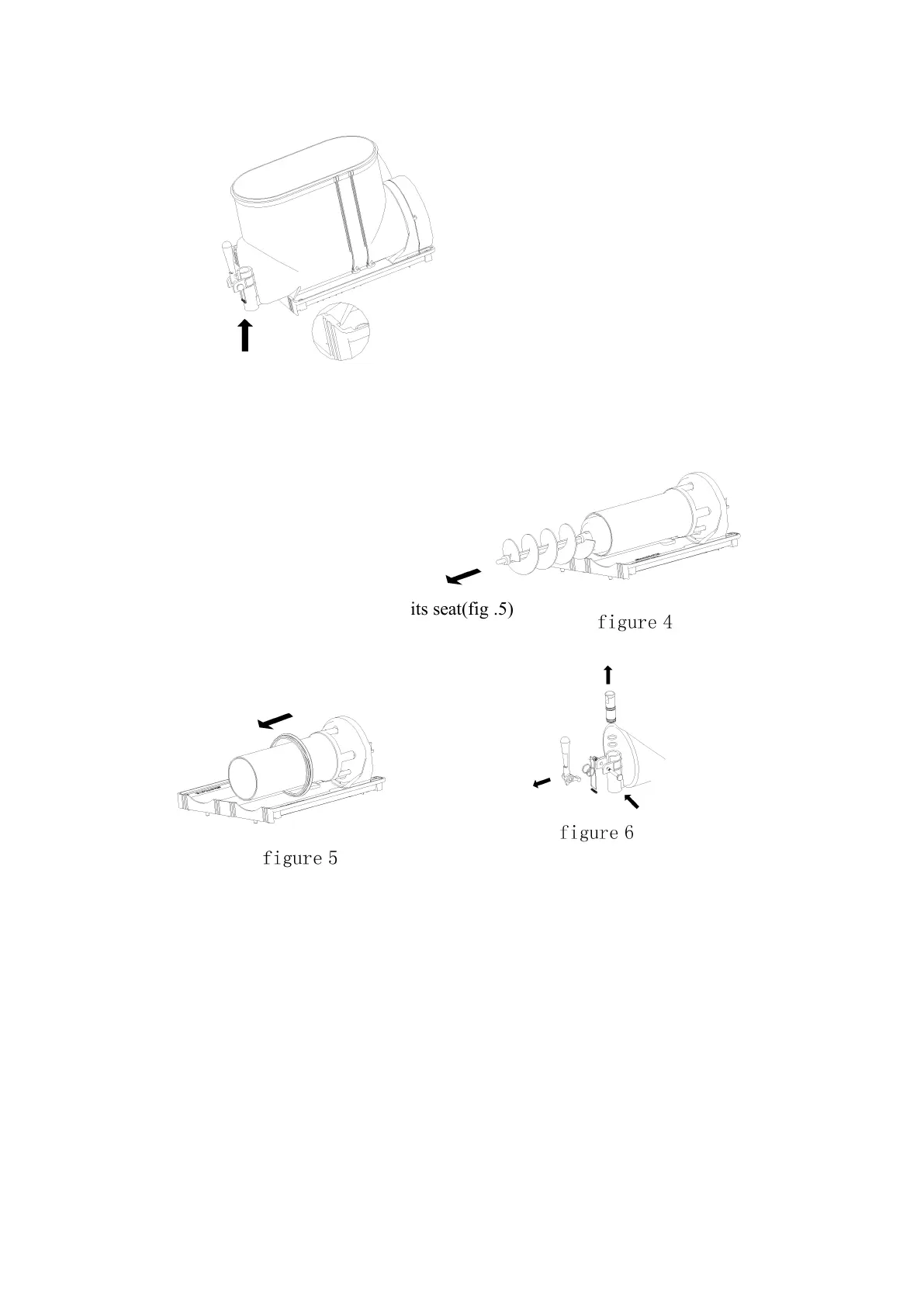

figure 1 figure 2
4.Slide the outer spiral out (fig.3)and then the inner auger (fig.4)
5.Remove the bowl gasket from its seat(fig .5)
6.Dismantle the faucet assembly(fig .6)
7.Slide the drip tray out and empty it.
Cleaning
Clean all removed parts and evaporator cylinder using warm and mild nonabrasive
food-grade detergent. Sanitize according to “SANITIZING” instructions.
Assembly:
1.Slide the drip tray into place.
