Setting the motor standstill current

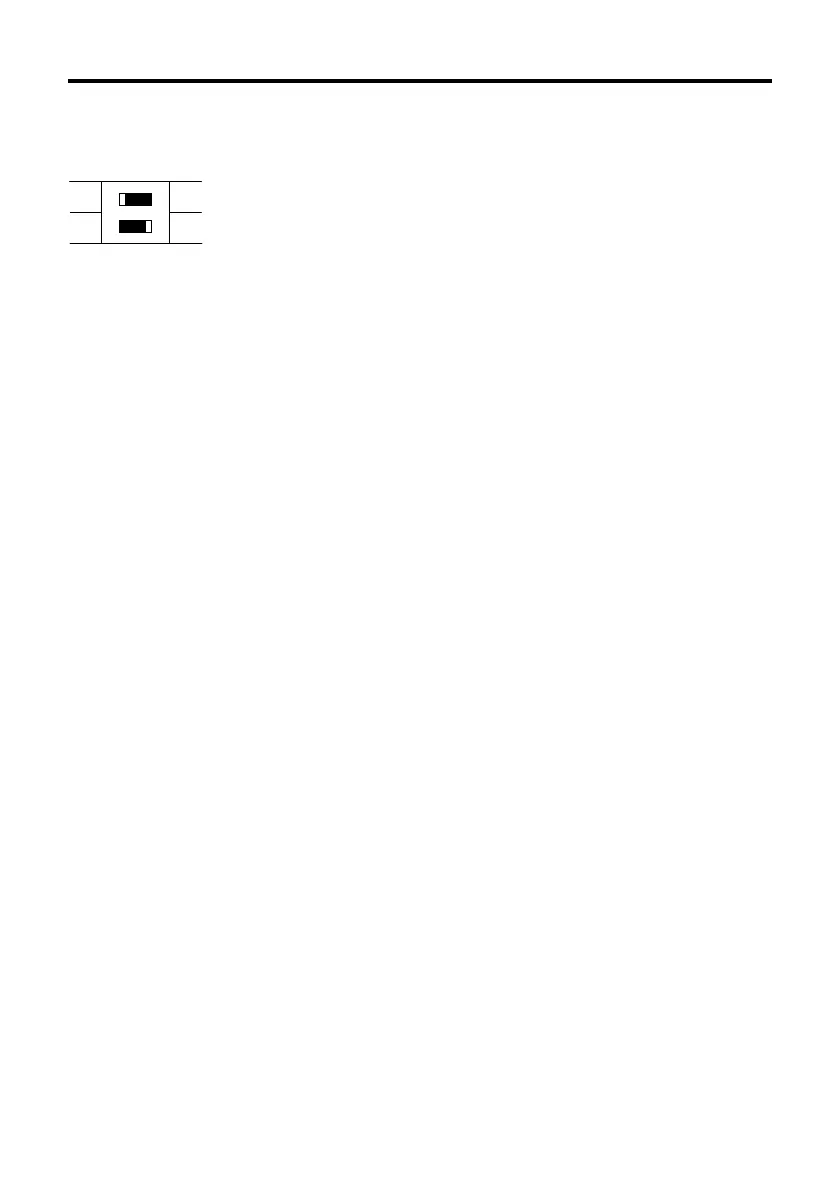

1. Confirm that the step angle switch set to F.
F
H
1
2
ON
2. Check that nothing is connected or input to the C.UP terminal, and that the SW1 switch
is turned off when using the connection shown above.
3. After connecting the motor and DC ammeter, turn the power on.
4. Set using the STOP potentiometer.
∗Set the value indicated on the ammeter to twice the desired current setting (per phase).
5. Turn the power off.
