Chapter 2
14

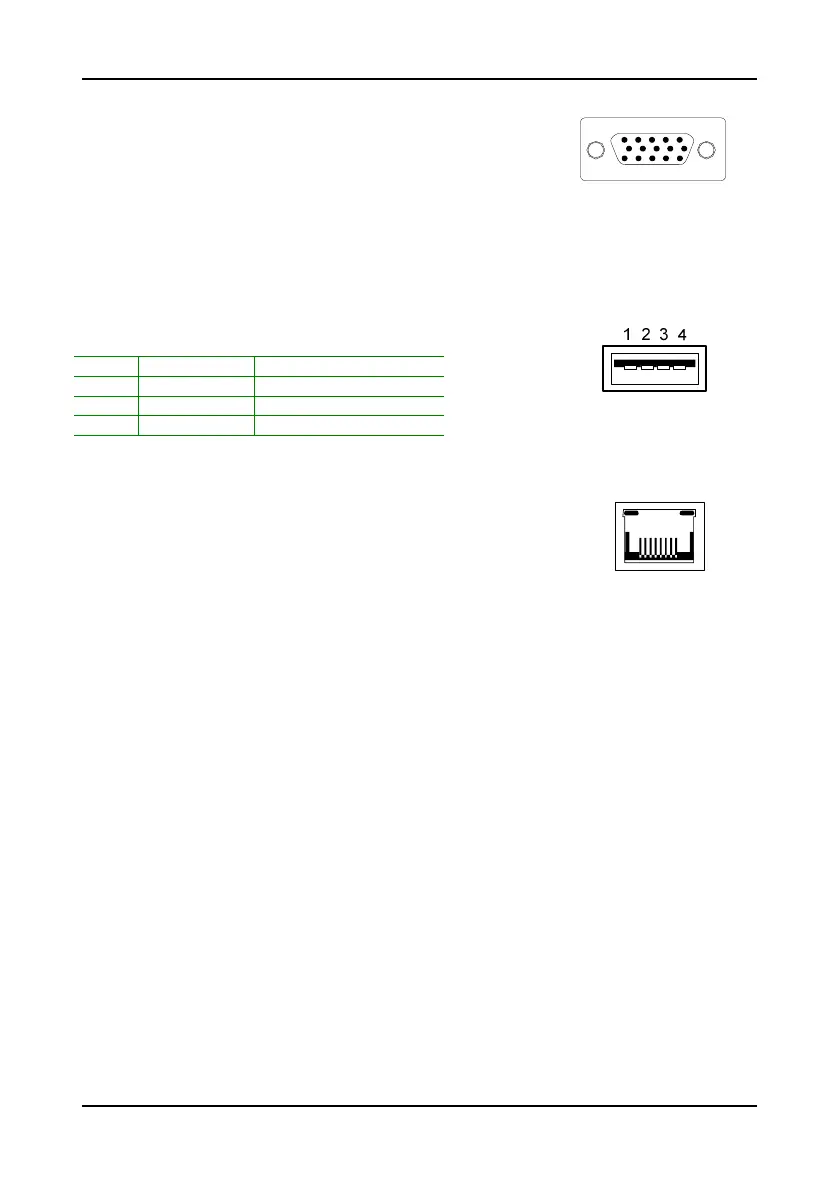

VGA Out
A DB-15 pin female connector that connects to a VGA
monitor.
USB Ports
The mainboard provides 2 USB 2.0 ports. USB-compatible devices can be
plugged directly into these ports.
Pin Signal Description
1 VCC +5V
2 -DATA Negative data channel
3 +DATA Positive data channel
4 GND Ground
RJ45 10/100 NIC Port
The mainboard provides one standard RJ-45 port for
connection to the Local Area Network (LAN). You can
connect a network cable to the LAN port.
