Installation
25
J
UMPERS
The mainboard provides jumpers for setting some mainboard functions. This
section will explain how to change the settings of the mainboard functions
using the jumpers.

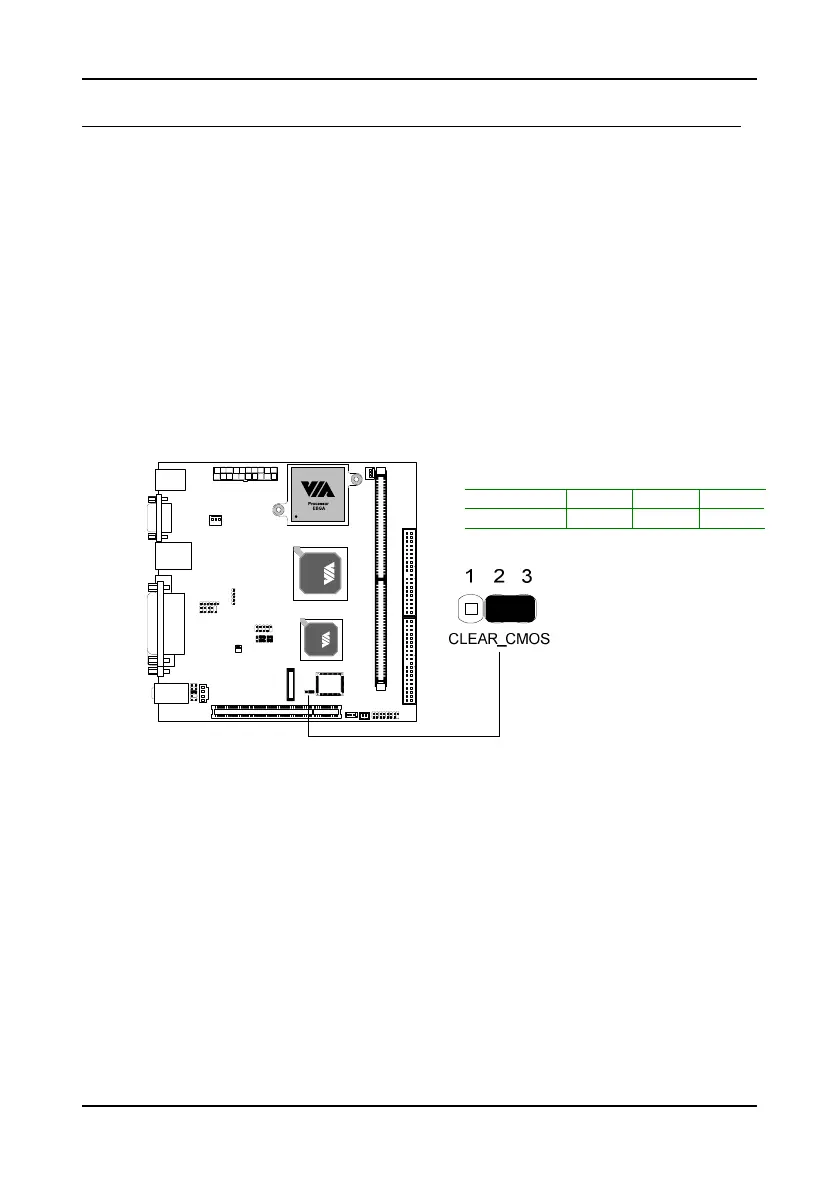

Clear CMOS: CLEAR_CMOS
The onboard CMOS RAM stores system configuration data and has an
onboard battery power supply. The long-life battery has a lifetime of at least
5 years. If you want to clear the system configuration data from the CMOS
RAM, use the CLEAR_CMOS (Clear CMOS jumper). You can clear the CMOS by
shorting 1-2 pin while the system is off. Then return it to the 2-3 pin position.
Shorting the jumper while the system is on will damage the mainboard.
Setting 1 2 3
Clear ON ON OFF
Keep OFF ON ON
