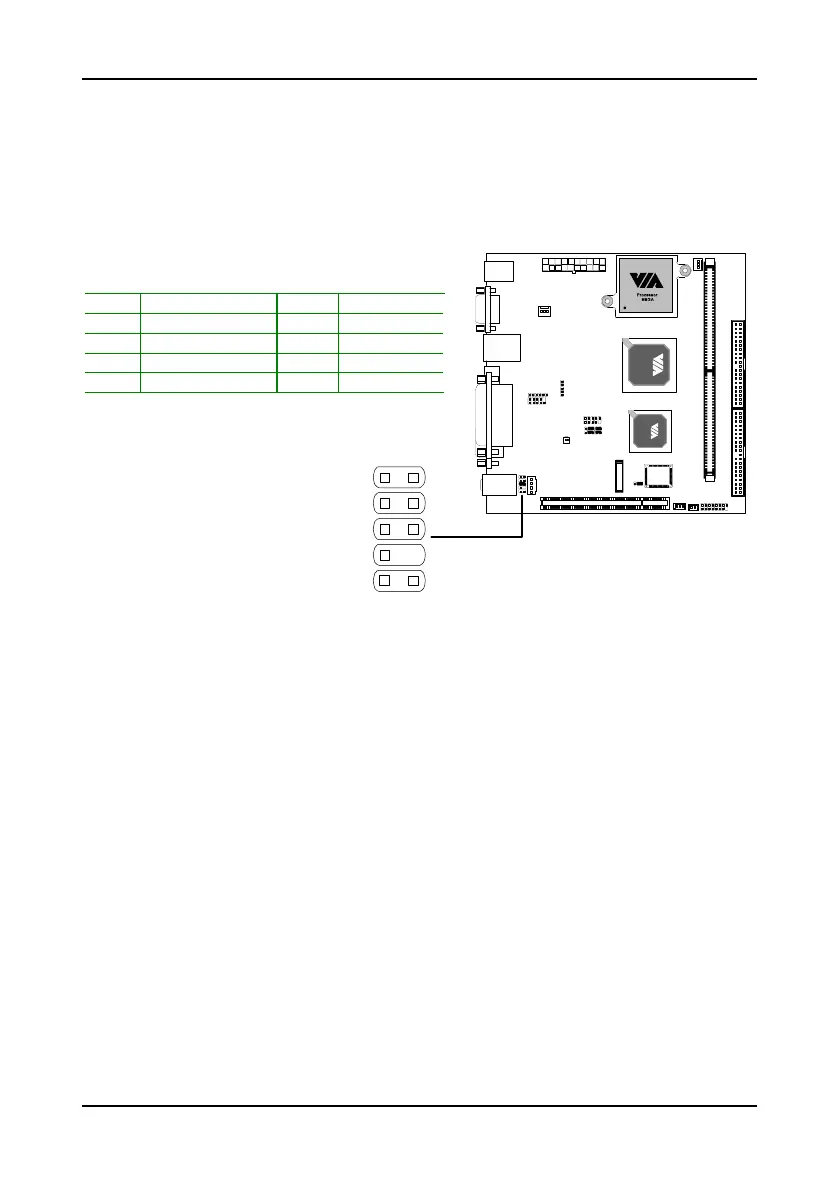

Front Audio Panel: F_AUDIO
This connector allows you to connect a front audio panel to the mainboard.
Only the line-out and microphone functions are available for use on the front
panel. To connect the front audio cable, first remove the two red plastic
jumpers.
Pin Signal Pin Signal
1 FRN_MIC 2 AGND
3 AUD_MIC_BIAS 4 +5V
5 LINE_OUT_R 6 Next_R
7 NC 8 Key pin
9 LINE_OUT_L 10 Next_L
F_AUDIO
1
9 10
2
