Installation
23

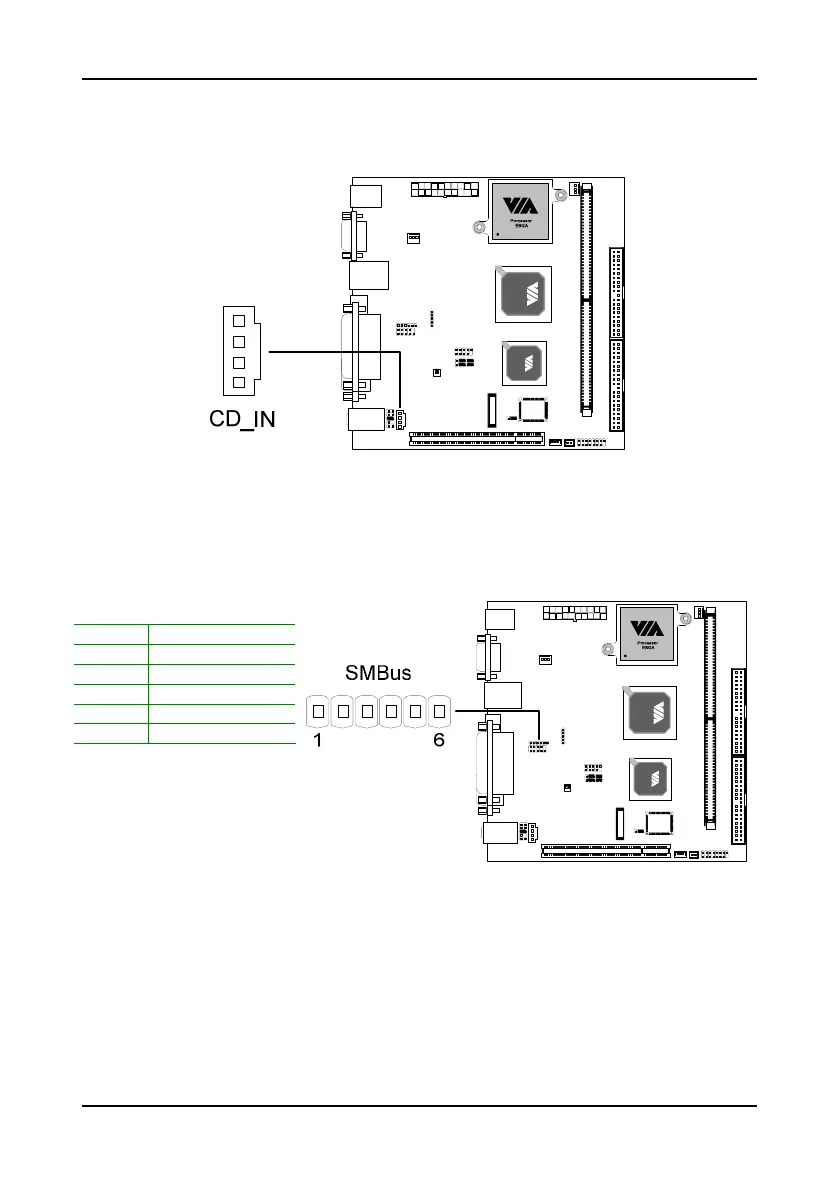

CD Audio Connector: CD_IN
This connector is for the CD-ROM audio connector.
SMBus Connector: SMBus
This is for connecting a System Management Bus device.
Pin Signal
1 +3.3V
2 +3.3V
3 EL-ON
4 SMBCK
5 SMBDT
6 GND
