These operations are described in remainder of Section 3.

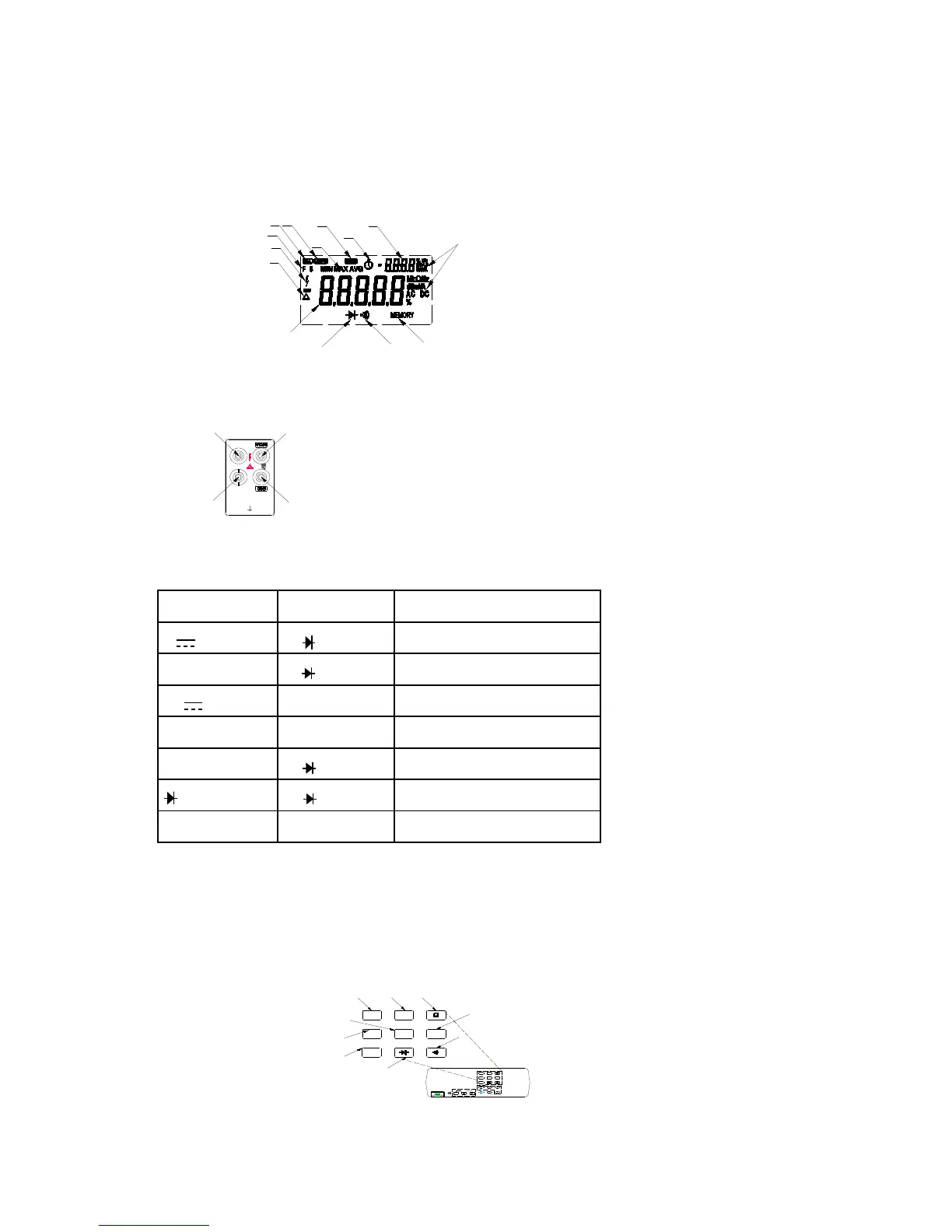

DISPLAY
The meter has a 5-digit, Liquid Crystal Display (Primary Display) and a 4-digit, Liquid Crystal Display
(Secondary Display). The display shows measurement readings, measurement units and
messages. As shown in Figure 3-1.
INPUT TERMINALS
The input terminals, as shown in Figure 3-2, are
located on the right of the front panel
The meter is protected against overloads up to the
limits shown in Table 3-1. Exceeding these limits
poses a hazard to both the meter and operator.
Figure 3-2. Input Terminals
Table 3-1. Input Limits
FUNCTION INPUT TERMINALS MAXIMUM INPUT
V VΩ and COM 1000V dc on all ranges
V ~, FREQ and dBm VΩ and COM 750V ac rms,1000V peak on all ranges
mA and mA ~ mA and COM 500mA dc or ac rms
A ~ and A ~ 10A and COM 10A dc or ac rms
Ω VΩ and COM 250V dc or ac rms on all ranges
VΩ and COM 250V dc or ac rms on all ranges
All Functions Any terminal to earth 1000V dc or ac peak
SELECTING A MEASUREMENT FUNCTION
Press a function button, as shown in Figure 3-3, to select a measurement function. When you select
a function, annunciators turn on to indicate the function selected. Rang and full scale values are
summarized in Table 3-2 for voltage, current, ohms and frequency
Figure 3-3. Function Select Buttons
8145A
MAX
750V
1000V
10A FUSED
250V
ALL INPUTS
1KV MAX
FAST FUSE
500mA
mA
Volts, Ohms, Diode Test input Terminal
Common Terminal. Retern Terminal
for all Measurements
Amperes Input Terminal. For
Current Measurements up to 10A
continuous
Milliamperes Input Terminal.
For Current Measurements
up to 500mA
