I-751.Europe / European Alarm Check Valve Stations / Installation, Maintenance, and Testing Manual
EUROPEAN TRIM DIMENSIONS: VDS, CE, UKCA, FM, EAC VERSION

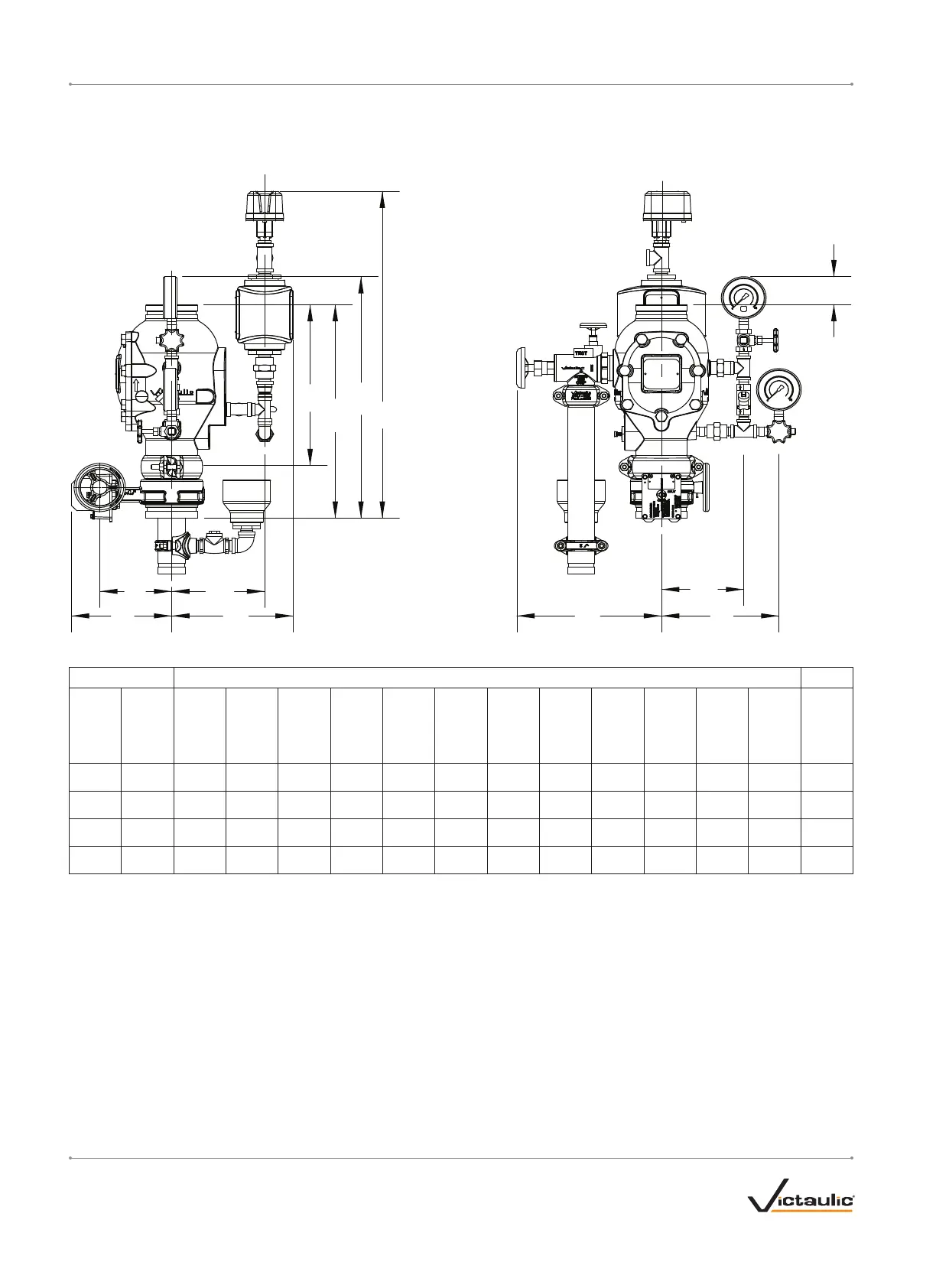

A 4-INCH/DN100 FIRELOCK™ EUROPEAN ALARM CHECK VALVE STATION WITH OPTIONAL EQUIPMENT IS SHOWN BELOW
C
E
D
F
B1
B
A1
A
K
J
H
I
Size Dimensions - inches/mm Weight
Nominal
inches
DN
Actual
Outside
Diameter
inches
mm A* A1 B B1 C D E F H I J K
Approx.
Each
kg
lbs
3 3.500 12.61 16.51 17. 22 28.88 5.50 7.71 7.47 10.21 6.72 9.76 11.41 0.67 79.0
DN80 88.9 321 420 438 734 140 196 190 260 171 248 290 18 36.0
4 4.500 15.03 19.94 22.53 30.50 6.31 8.15 8.80 10.65 7.21 10.29 14.08 2.60 105.0
DN100 114. 3 382 507 573 775 161 208 224 271 184 262 358 67 47. 5
6 6.625 16.00 22.12 24.74 32.25 8.22 9.39 10.85 11. 89 7.59 10.67 14.46 2.54 140.0
DN150 168.3 407 562 629 820 209 239 276 303 193 272 368 65 63.5
8 8.625 17.50 23.02 24.09 31.08 9.47 10.40 12.07 12.90 9.33 12.41 15.83 0.83 210.0
DN200 219.1 445 585 612 790 241 265 307 328 237 316 403 22 95.5
* The “A” dimension is the measurement from the top of the valve body to the bottom of the valve body (takeout dimension).
NOTE: Overall height “B” is the greatest height if the optional Series 752 VdS Retarding Chamber Assembly is not installed.
