Victaulic FireLock 751 Series User Manual

I-751.Europe / European Alarm Check Valve Stations / Installation, Maintenance, and Testing Manual
EUROPEAN TRIM DIMENSIONS: LPCB VERSION

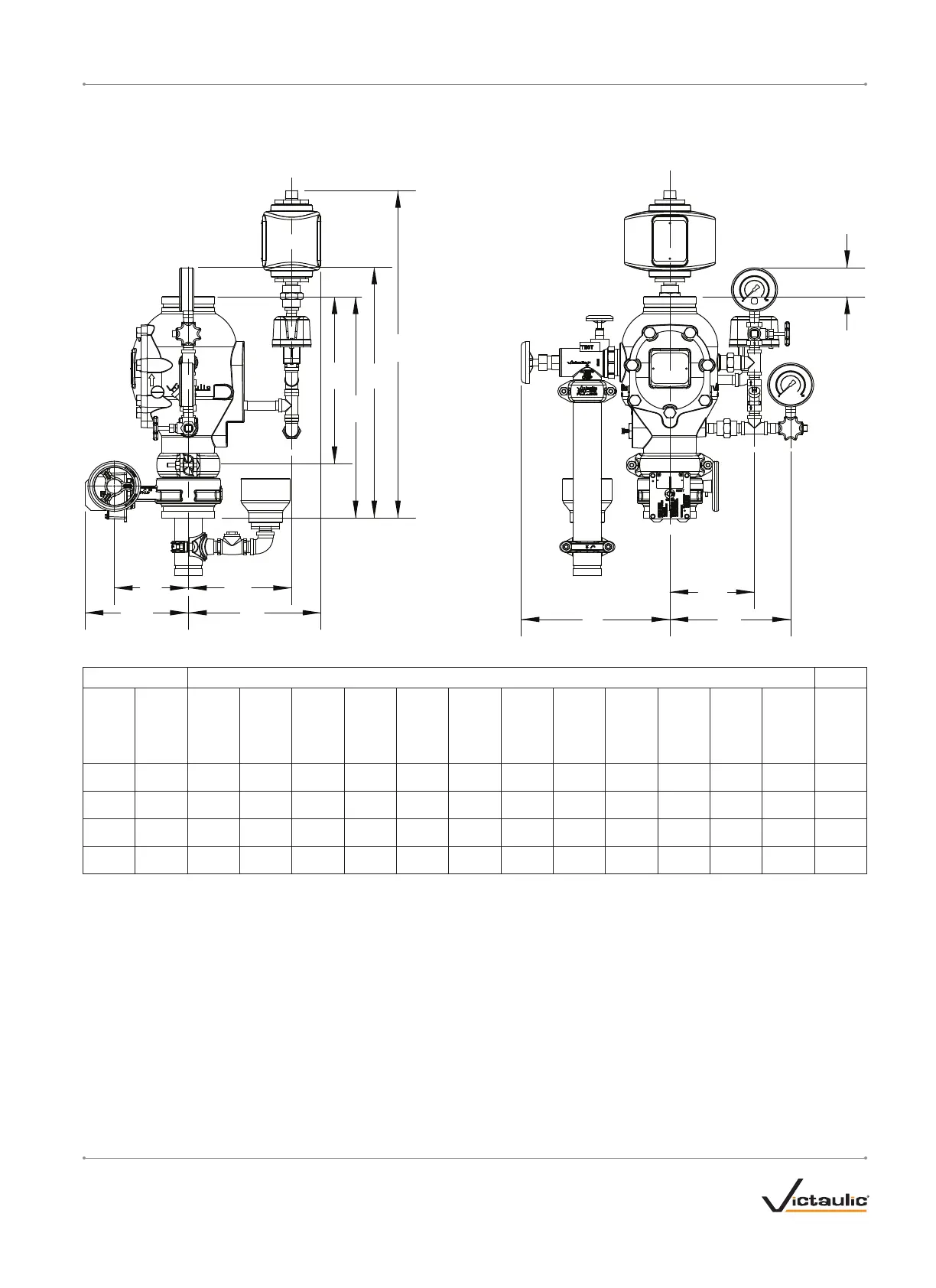

A 4-INCH/DN100 FIRELOCK™ EUROPEAN ALARM CHECK VALVE STATION WITH OPTIONAL EQUIPMENT IS SHOWN BELOW
A1
B
B1
A
F
DC
E
H
IJ
K
Size Dimensions - inches/mm Weight
Nominal
inches
DN
Actual
Outside
Diameter
inches
mm A* A1 B B1 C D E F H I J K
Approx.
Each
kg
lbs
3 3.500 12.61 16.51 17. 22 27. 87 5.50 8.36 7. 47 10.86 6.72 9.76 11.41 0.67 93.0
DN80 88.9 321 420 438 708 140 213 190 276 171 248 290 18 42.0
4 4.500 15.03 19.94 22.53 29.49 6.31 8.80 8.80 11.67 7.21 10.29 14.08 2.60 125.0
DN100 114. 3 382 507 573 749 161 224 224 297 184 262 358 67 56.5
6.500 16.00 22.12 24.74 31.24 8.22 10.04 10.85 12.54 7.59 10.67 14.46 2.54 165.0
165.1 407 562 629 794 209 256 276 319 193 272 368 65 75.0
8 8.625 17.50 23.02 24.09 30.79 9.47 11. 0 4 12.07 13.56 9.33 12.41 15.83 0.83 225.0
DN200 219.1
445 585 612 783 241 281 307 345 237 316 403 22 102.0
* The “A” dimension is the measurement from the top of the valve body to the bottom of the valve body (takeout dimension).
NOTE: Overall height “B” is the greatest height if the optional Series 752 VdS Retarding Chamber Assembly is not installed.
I-751.Europe_4REV_G
