EUROPEAN TRIM DIMENSIONS: FG VERSION

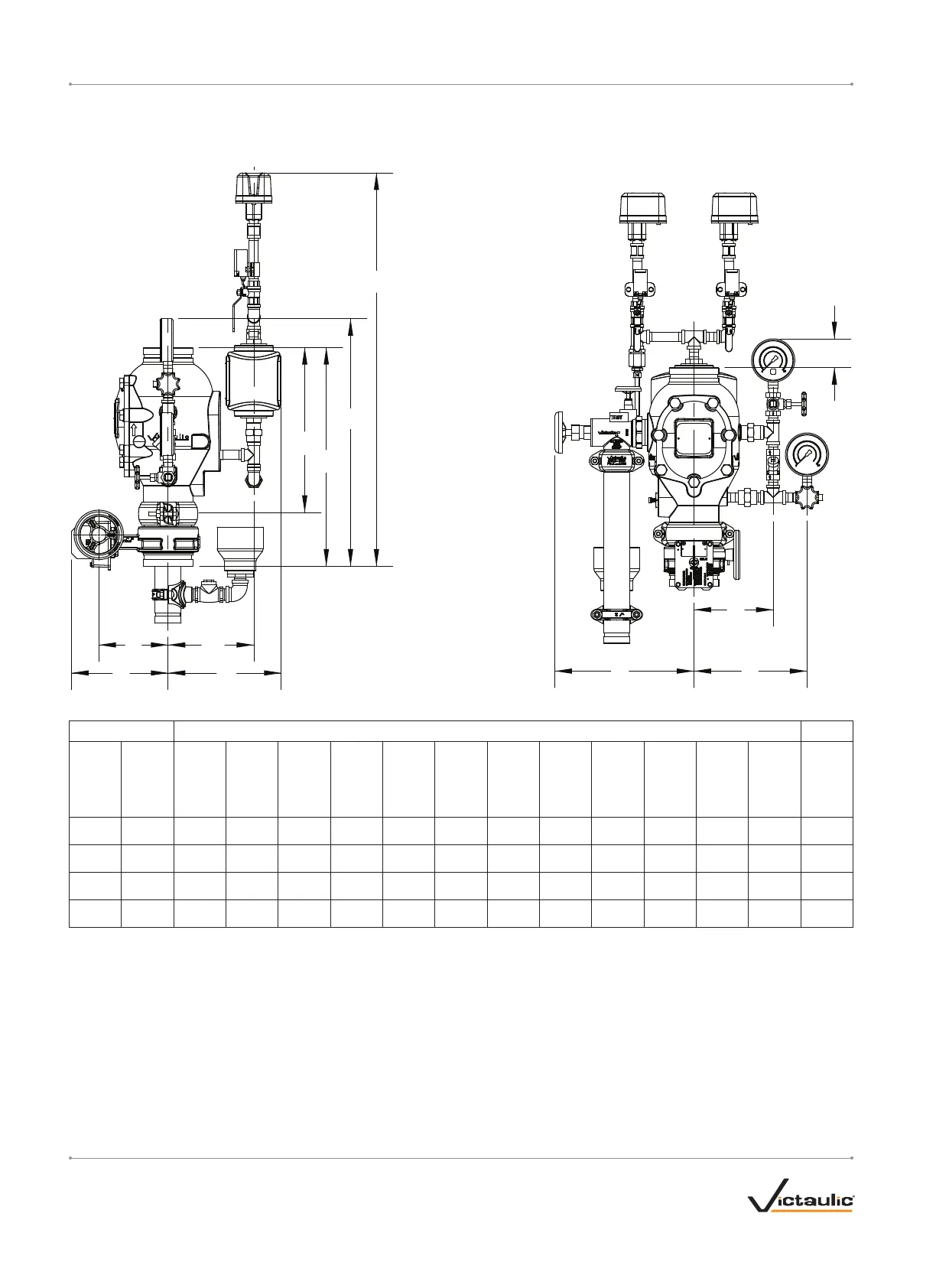

A 4-INCH/DN100 FIRELOCK™ EUROPEAN ALARM CHECK VALVE STATION WITH OPTIONAL EQUIPMENT IS SHOWN BELOW
C
E
D
F
A1
A
B
B1
IJ
K
H
Size Dimensions - inches/mm Weight
Nominal
inches
DN
Actual
Outside
Diameter
inches
mm A* A1 B B1 C D E F H I J K
Approx.
Each
kg
lbs
3 3.500 12.61 16.51 17. 22 34.20 5.50 7. 36 7.47 9.86 6.72 9.76 11.41 0.67 96.0
DN80 88.9 321 420 438 869 140 188 190 251 171 248 290 18 43.5
4 4.500 15.03 19.94 22.53 35.81 6.31 7. 80 8.80 10.31 7. 21 10.29 14.08 2.60 130.0
DN100 114. 3 382 507 573 910 161 199 224 262 184 262 358 67 59.0
6 6.625 16.00 22.12 24.74 35.57 8.22 10.04 10.85 11. 5 4 7. 59 10.67 14.46 2.54 165.0
DN150 168.3 407 562 629 955 209 256 276 294 193 272 368 65 75.0
8 8.625 17.50 23.02 24.09 37.12 9.47 10.05 12.07 12.55 9.33 12.41 15.83 0.83 230.0
DN200 219.1 445 585 612 943 241 256 307 319 237 316 403 22 104.5
* The “A” dimension is the measurement from the top of the valve body to the bottom of the valve body (takeout dimension).
For FG trim, an additional coupling and water supply main control valve are available as an option for installation above the Series 751 FireLock
European Alarm Check Valve (system side). The addition of this option will not affect the B1 dimension shown.
I-751.Europe_5 REV_G
