Victaulic FireLock 751 Series User Manual

I-751.Europe / European Alarm Check Valve Stations / Installation, Maintenance, and Testing Manual
EUROPEAN TRIM DIMENSIONS: SBSC VERSION

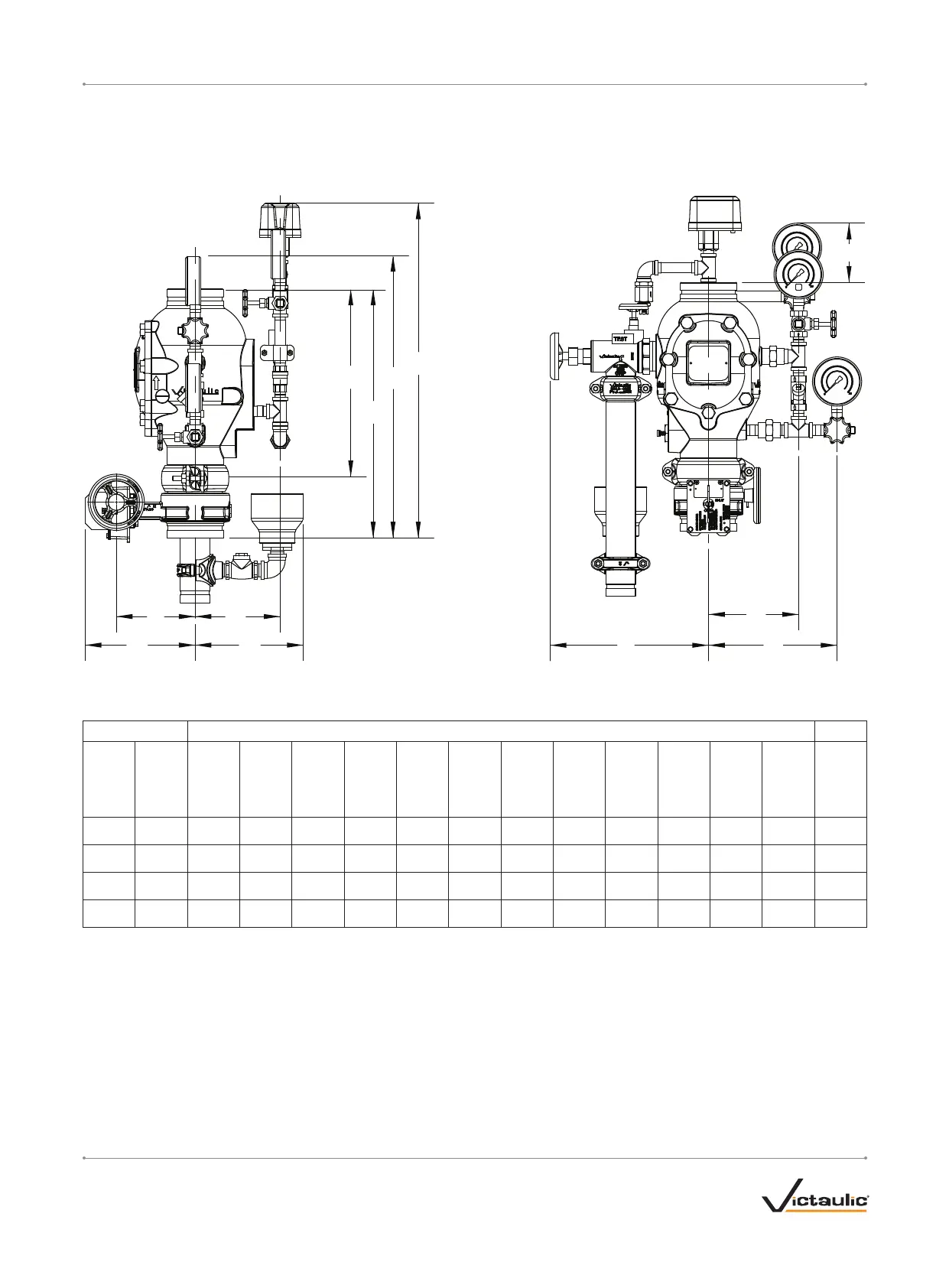

A 4-INCH/DN100 FIRELOCK™ EUROPEAN ALARM CHECK VALVE STATION WITH OPTIONAL EQUIPMENT IS SHOWN BELOW
H
IJ
C
E
D
F
A1
B
B1
A
K
Size Dimensions - inches/mm Weight
Nominal
inches
DN
Actual
Outside
Diameter
inches
mm A* A1 B B1 C D E F H I J K
Approx.
Each
kg
lbs
3 3.500 12.61 16.51 17. 22 25.19 5.50 6.36 7.47 6.21 6.72 9.76 11.41 6.50 85.0
DN80 88.9 321 420 438 640 140 162 190 158 171 248 290 165 38.5
4 4.500 15.03 19.94 22.53 26.81 6.31 6.80 8.80 8.66 7.21 10.29 14.08 4.72 115.0
DN100 114. 3 382 507 573 681 161 173 224 220 184 262 358 120 52.0
6 6.625 16.00 22.12 24.74 28.56 8.22 8.04 10.85 8.66 7. 59 10.67 14.46 4.22 155.0
DN150 168.3 407 562 629 726 209 205 276 220 193 272 368 108 70.5
8 8.625 17.50 23.02 24.09 28.12 9.47 9.05 12.07 8.66 9.33 12.41 15.83 2.71 220.0
DN200 219.1 445 585 612 715 241 230 307 220 237 316 403 69 100.0
* The “A” dimension is the measurement from the top of the valve body to the bottom of the valve body (takeout dimension).
For SBSC trim, an additional coupling and water supply main control valve are available as an option for installation above the Series 751 FireLock
European Alarm Check Valve (system side). The addition of this option will not affect the B1 dimension shown.
I-751.Europe_6REV_G
