Series 769 FireLock NXT™ Preaction Valve 17

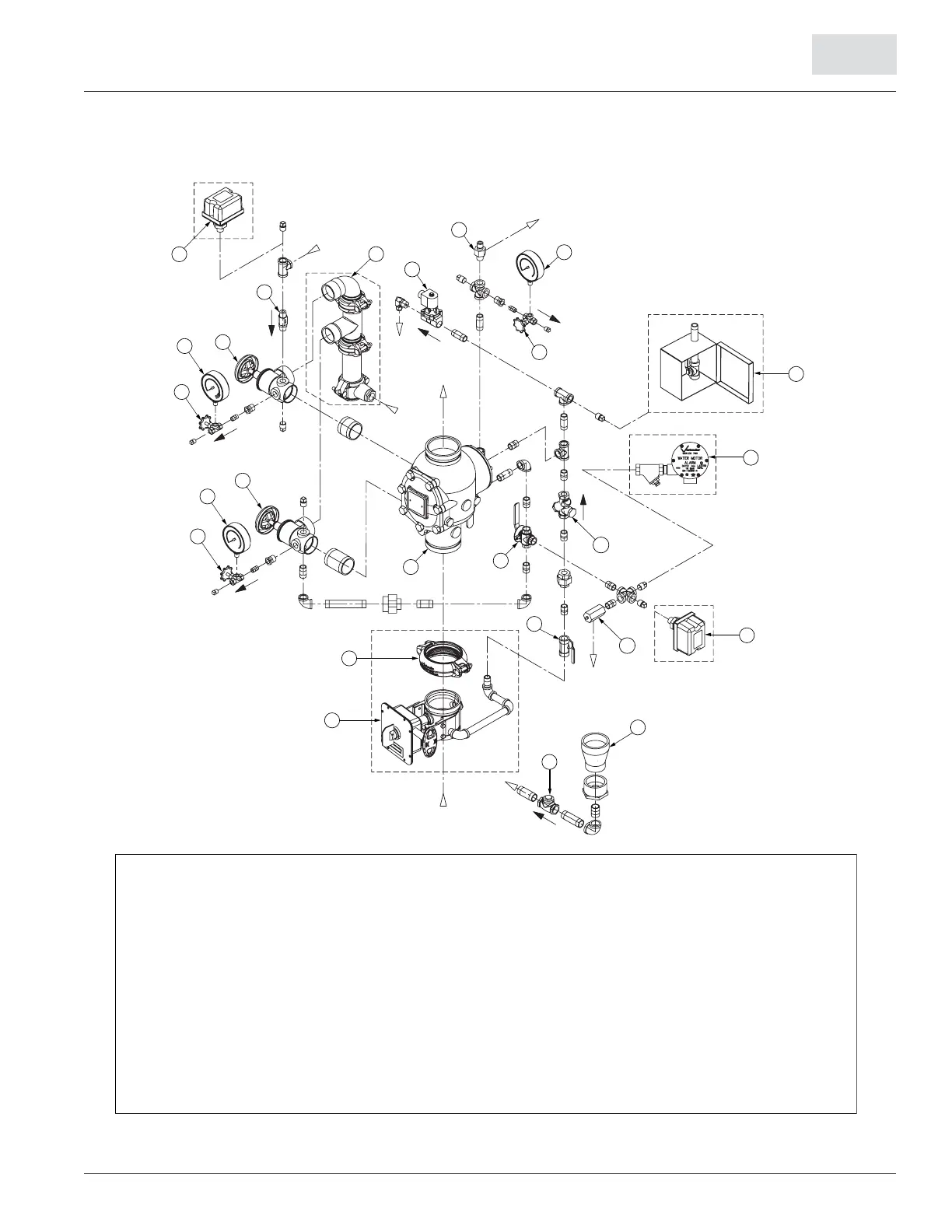

EXPLODED VIEW DRAWING – TRIM COMPONENTS
Series 769 FireLock NXT Preaction Valve – Single-Interlocked, Electric Release Trim
Double-Interlocked, Electric Release (Electric-Pneumatic/Electric) Trim
(Optional Accessories Also Shown)
2
3
1
15
11
21
23
14
13
20
18
20
16
17
5
20
19
6
10
22
12
8
4
7
9
BILL OF MATERIALS
1 Series 769 FireLock NXT Preaction Valve 13 Series 749 AutoDrain
2 FireLock Rigid Coupling (Optional) 14 Series 753-E Solenoid Valve
3 Series 705W Butterfly Valve (Optional) 15 EPS40-2 Supvervisory Switch**
4 Drain Swing Check Valve 16 System Pressure Gauge
5 Drip Cup (0-80 psi/0-552 kPa with retard)
6 EPS10-2 Alarm Pressure Switch (Optional) 17 Water Supply Main Drain Valve - Flow Test
7 Series 729 Drip Check Valve 18 Water Supply Pressure Gauge (0-300 psi/0-2068 kPa)
8 Diaphragm-Charge-Line Ball Valve (Normally Open) 19 Drain Connection Kit (Optional)
9 Strainer/Check/Restrictor Assembly 20 Gauge Valve
10 Series 760 Water Motor Alarm (Optional) 21 System Main Drain Valve
11 Three-Way Alarm Ball Valve 22 Series 755 Manual Pull Station
12 Diaphragm-Charge-Line Pressure Gauge 23 Series 748 Ball Check Valve
(0-300 psi/0-2068 kPa)
**Item #15 is optional for single-interlocked, electric release trim and standard for double-interlocked, electric release
(electric-pneumatic/electric) trim.
From System
Air Feed
To Drip
Cup or
Drain
To System
From
Drip Cup
To Drip
Cup
Water
Supply
To Drain
Connection
Assembly
or Drain
To Drip
Cup or
Drain
