2.04 Power Supply Specifications

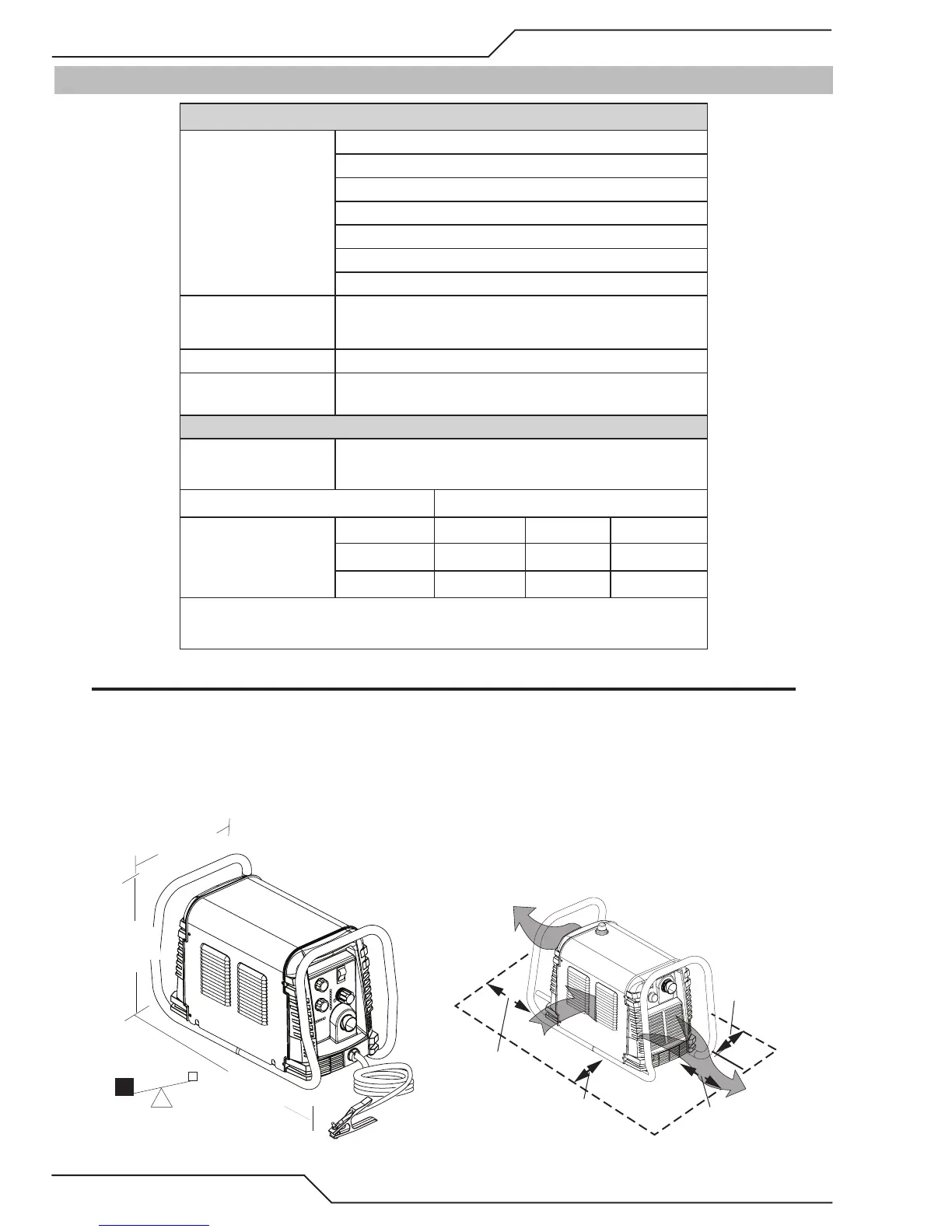

CutMaster 52 Power Supply Specifications
Input Power
208 / 230 VAC (187 - 253 VAC), Single Phase, 60 Hz
230 VAC (187 - 253 VAC), Three Phase, 50/60 Hz
380 VAC (360 - 440 VAC), Three Phase, 50/60 Hz
400 VAC (360 - 440 VAC), Three Phase, 50/60 Hz
460 VAC (414 - 506 VAC), Single Phase, 60 Hz
460 VAC (414 - 506 VAC), Three Phase, 60 Hz
600 VAC (540 - 630), Three Phase, 60 Hz
Input Power Cable
Power Supply includes input cable.
Cable for 208/230V input power includes molded plug.
Output Current 20 - 60 Amps, Continuously Adjustable
Power Supply Gas
Filtering Ability
Particulates to 5 Microns
CutMaster 52 Power Supply Duty Cycle *
Ambient Temperature
Duty Cycle Ratings @ 40° C (104° F)
Operating Range 0° - 50° C
IEC Rating
All Units
Duty Cycle 40% 60% 100%
Current
60 Amps 50 Amps 30 Amps
DC Voltage
104 100 92
* NOTE: The duty cycle will be reduced if the primary input power (AC) is low or the
output voltage (DC) is higher than shown in this chart.
NOTE
IEC Rating is determined as specified by the International Electro-Technical Commission. These speci-
fications include calculating an output voltage based upon power supply rated current. To facilitate
comparison between power supplies, all manufacturers use this output voltage to determine duty cycle.
Power Supply Dimensions & Weight Ventilation Clearance Requirements
22.5"
0.57 m
43 lb / 19.5 kg
10.75"
273 mm
16.375"
416 mm
Art # A-07941
6"
150 mm
24"
610 mm
6"
150 mm
6"
150 mm
Art # A-07925_AB
