Victoria Arduino ADONIS 3 gruoups User Manual

Fig. 3
Fig. 4
4544
EN
45

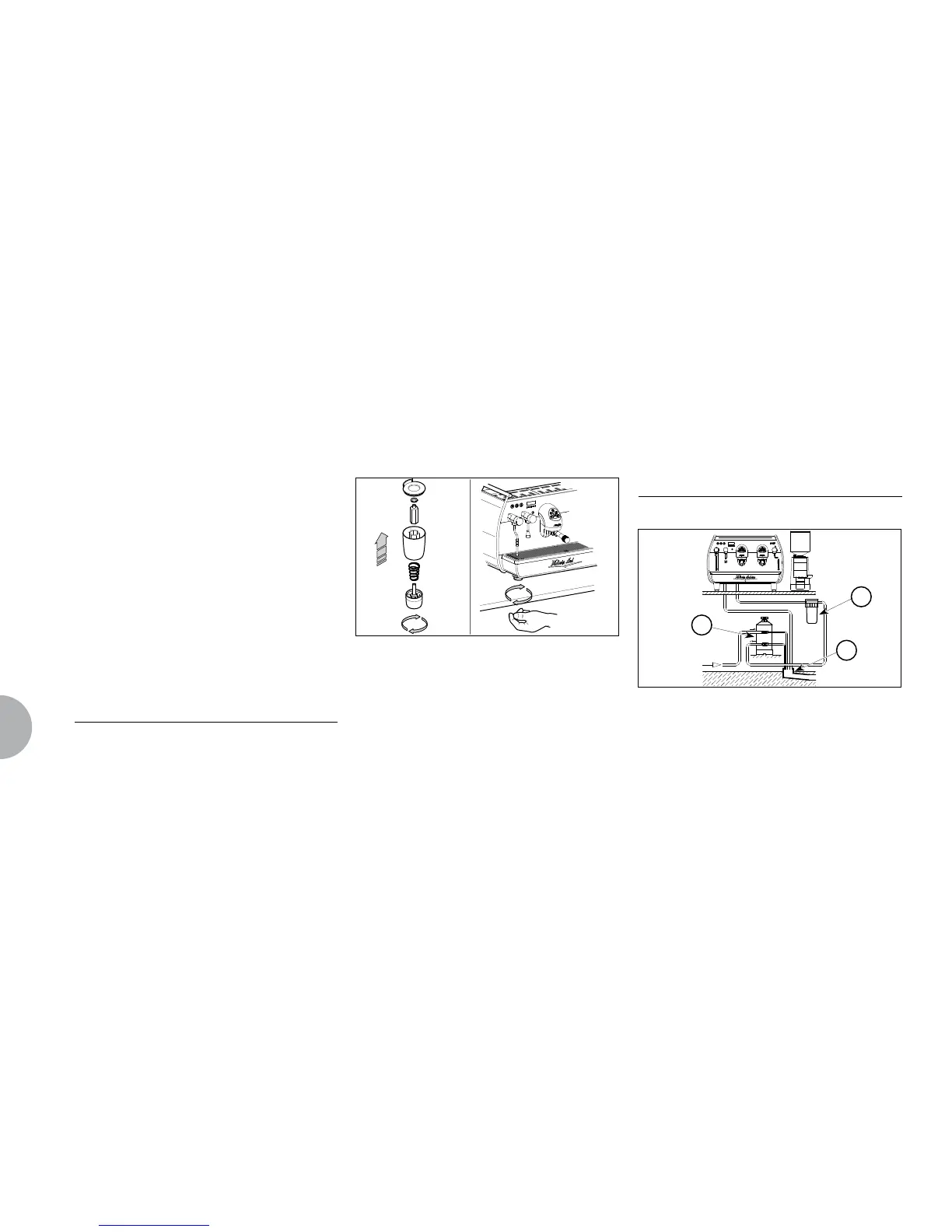

After unpacking, assess that the machine and its
accessories unit are complete, then proceed as fol-
lows:
• placethemachinesothatitislevelonaflatsur-
face;
• assembleitssupportingfeetbyinsertingtheinsert
into the cylindrical unit (see Fig. 3);
• twisttherubberfootintothe screwthreadinside
the unit (see Fig. 3);
• screwthewhole assembledunit into theallotted
setting for the machine’s adjustable feet;
• level the machine by regulating the adjustable
feet;
 NOTE
The unit grooves have to face upwards, as shown in the
following illustration.
It is advisable to install a softener (1) and then a mesh
filter (2) on the external part of the plumbing system, dur-
ing preliminaries and after levelling the machine.
In this way impurities like sand, particles of calcium, rust
etc will not damage the delicate graphite surfaces and
durability will be guaranteed.
Following these operations, connect the plumbing sys-
tems as illustrated in the following figure.
 WARNING
Avoid throttling in the connecting tubes.
Assess that the drain pipe (3) is able to eliminate waste.
KEY
① Softener
② Mesh filter
③ Drain Ø 50 mm
4. inSTALLATiOn And pReLiminARY OpeRATiOnS
2
3
1
