Victron energy Quattro 24/5000/120 User Manual

9
EN Appendix

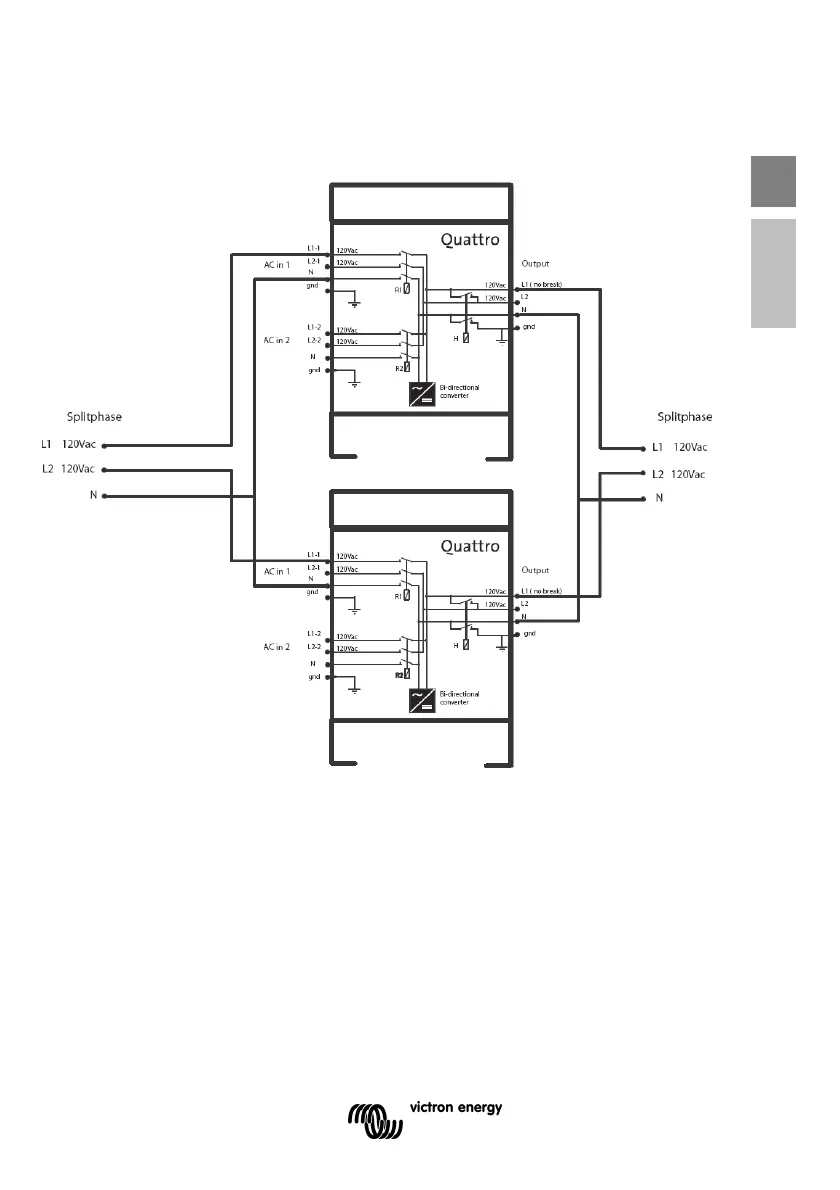

Figure 2a: Two stacked 120/240V Quattro’s (option 2a)
Ground cables and interconnection for synchronization not shown
Connection to second AC source not shown.

Victron energy Quattro 24/5000/120 Specifications

General

Model	Quattro 24/5000/120
Input Voltage	230 V AC
Output Power	5000 VA
Output Voltage	230 V AC
Output Frequency	50 Hz
Output Current (AC Transfer Switch)	22 A
Efficiency	94%
Transfer Time	20 ms
Battery Voltage	24 V
Maximum AC Output Current	22 A
Protection	Overload, Short circuit, Over temperature
Input Voltage Range	180 - 265 V AC
