Videocon Shine - 6-2. Disassembly Information - Pulsator and V-Belt

6. SERVICE INFORMATION
16

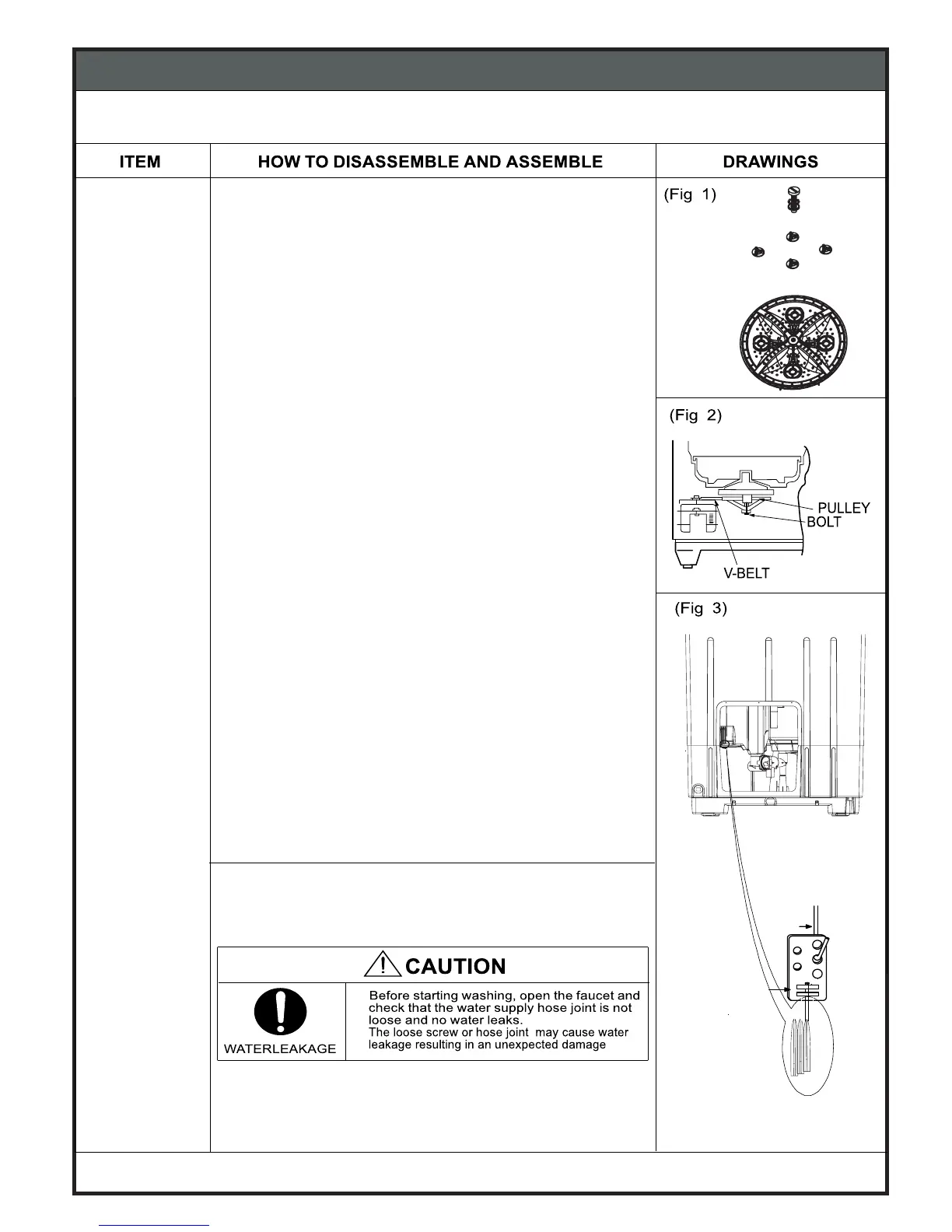

6-2. DISASSEMBLY INFORMATION
Unscrew the Pulsator Asm, using ‘+ ve’ screw driver. (Fig. 1)
1.
3.
Remove V BELT from Bearing Case Pulley and Motor Pulley.
(Fig. 2)
TUB SLOT
4.
Keeping the SPIN LID at open position,
remove the ACTUATING LEVER form the
PULSATOR
V-BELT
FLEXIBLE WIRE
FLEXIBLE WIRE
ACTUATING LEVER
FLEXIBLE WIRE PLATE (Fig 3)
5.
Remove flexible wire plate from tub slot.
PLATE
PULSATOR
PULSATOR SCREW
ROTOR
