AUDIO & VIDEO CONTROL CABINETS

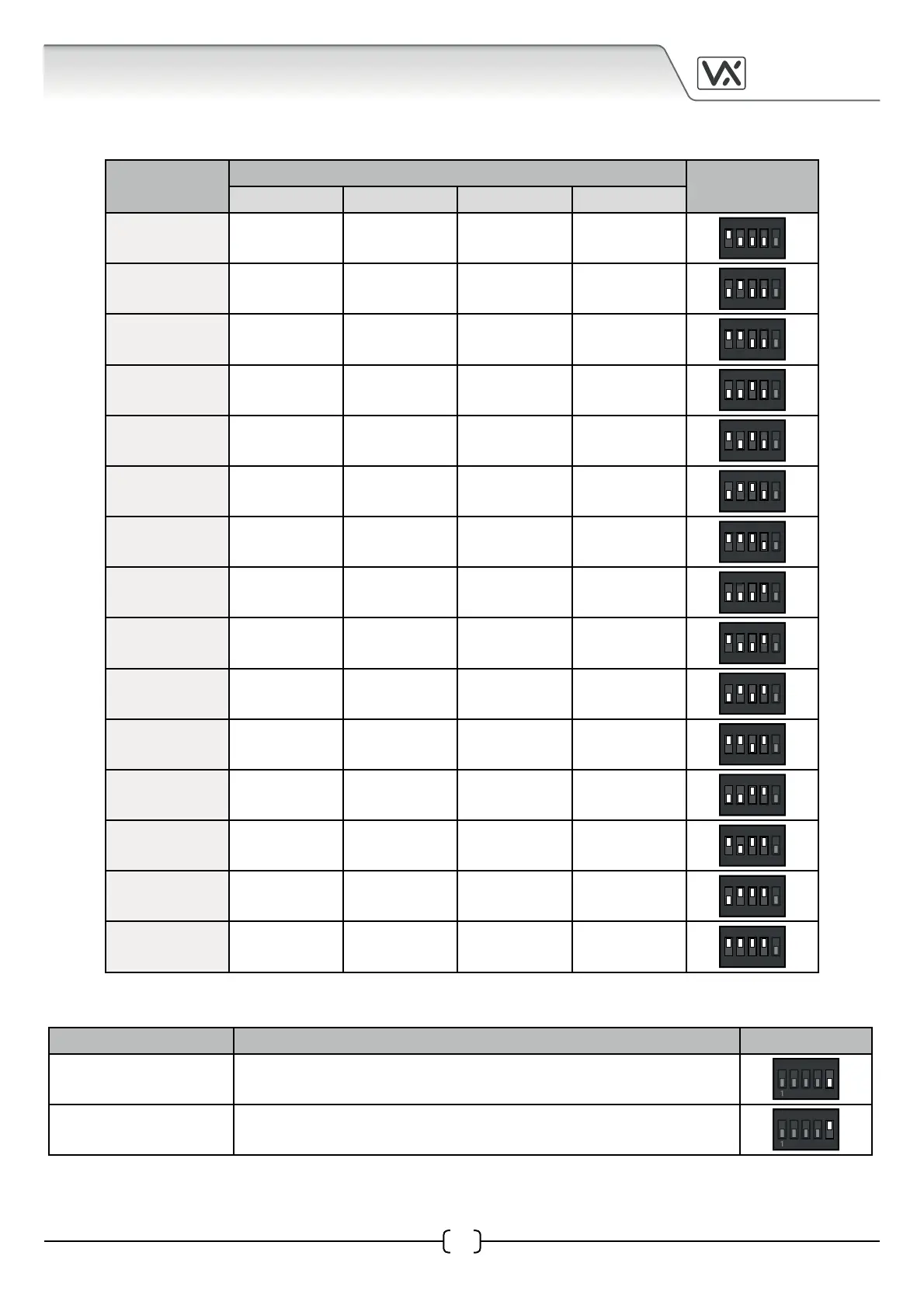

Unit Address
(Block ID)
Dip-Switch No. (status)
Dip-Switch
1234
1 ON OFF OFF OFF
1234
5
ON
2 OFF ON OFF OFF
1234
5
ON
3 ON ON OFF OFF
1234
5
ON
4 OFF OFF ON OFF
1234
5
ON
5 ON OFF ON OFF
1234
5
ON
6 OFF ON ON OFF
1234
5
ON
7 ON ON ON OFF
1234
5
ON
8 OFF OFF OFF ON
1234
5
ON
9 ON OFF OFF ON
1234
5
ON
10 OFF ON OFF ON
1234
5
ON
11 ON ON OFF ON
1234
5
ON
12 OFF OFF ON ON
1234
5
ON
13 ON OFF ON ON
1234
5
ON
14 OFF ON ON ON
1234
5
ON
15 ON ON ON ON
1234
5
ON
Dip-Switch 5 (status) Operating Mode Dip-Switch
OFF
Standard operating mode with local block door panel
connected.
1
2
3
4
5
ON
ON
No local block door panel and more than 180 users required.
1
2
3
4
5
ON
Setting Dip-Switch 5
Setting Unit Address (switches 1 - 4)
