PAGE 26 of 40 GSM DOOR INTERCOM TECHNICAL MANUAL VER 2.0.8
Please note: After making any changes to the settings and stored telephone
numbers on the PC, they must then be uploaded to the unit before they will take
affect.

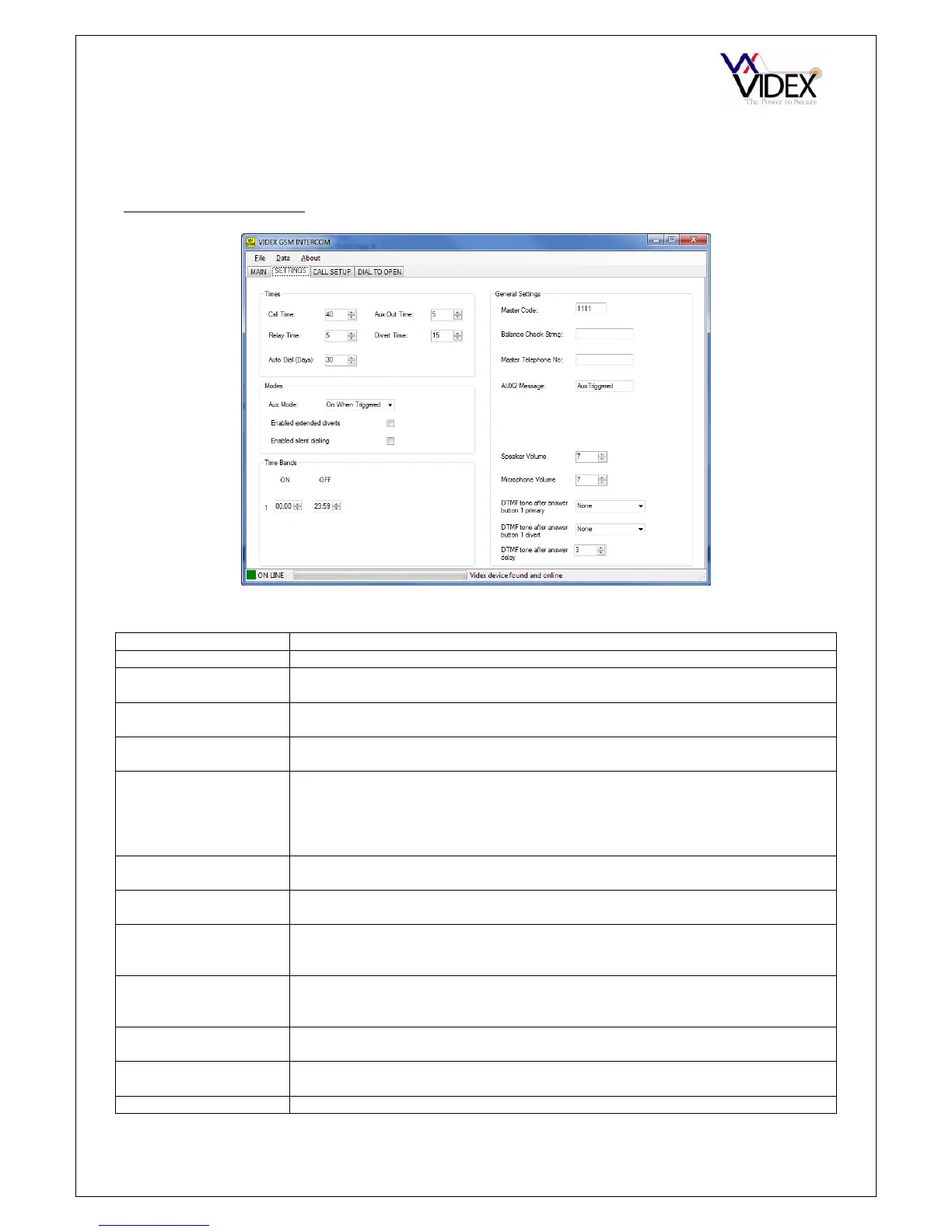

GENERAL SETTINGS:
The general settings page has the following programmable options:
Call Time: Maximum length of a call before it automatically clear down (20-240 Seconds)
Relay Time: Relay activation time (0 – 99 Seconds, 0 = latching)
Aux Out Time: Auxiliary output AO terminal, switched 0V time (0 – 99 Seconds, 0 = latching).
Only relevant for Aux mode ‘On when triggered’.
Divert Time: The time a phone is allowed to ring before the unit cancels the call and diverts to
the second number, of programmed. (15 – 99 seconds)
Auto Dial (Days): Number of days the unit will wait with out a call being made before it makes a
short call to keep the system live and on the network (1-99 days).
Aux Mode: The AO terminal is a switch 0V output. It can be programmed to trigger by the
end user pressing 6 on their telephone during a call or can be setup to switch on
when a call is made and stay on for the length of the call. Additionally this output
can be set for use with a status indicator or as a switch to transfer calls to the
master number. The four options are available in the drop down box.
Enable extended divert: With this enabled it is possible to divert to up to 5 divert numbers. See EXD SMS
message settings for more information.
Enable silent dialling When checked, dialling will not be heard from the intercom speaker, instead
beeps will be heard every few seconds.
Master Code: The master code must be 4 digits (Factory default 1111) and is required when
using the SMS facilities on the GSM unit and also when dialling in to the unit from
a number which is not stored.
AUX2 Message: The Aux2 message is a message which will be sent to the master telephone
number when the Auxillary 2 input is triggered. The message can be up to 32
characters but can’t include spaces.
Balance Check String: The balance check string allows the balance on certain pay as you go SIM cards
to be checked. This must be stored to allow the balance to be checked.
Master Telephone No: The master telephone number is the telephone number which will receive the
SMS messages for low balance and Aux 2 triggered.
Speaker volume: The speaker volume can be any number from 1-12 (12 = highest volume)
