Videx 6200 Series - Intercommunicating Call Feature; Initiating Intercom Calls; Call Status Indicators; Conversation Status Display

12

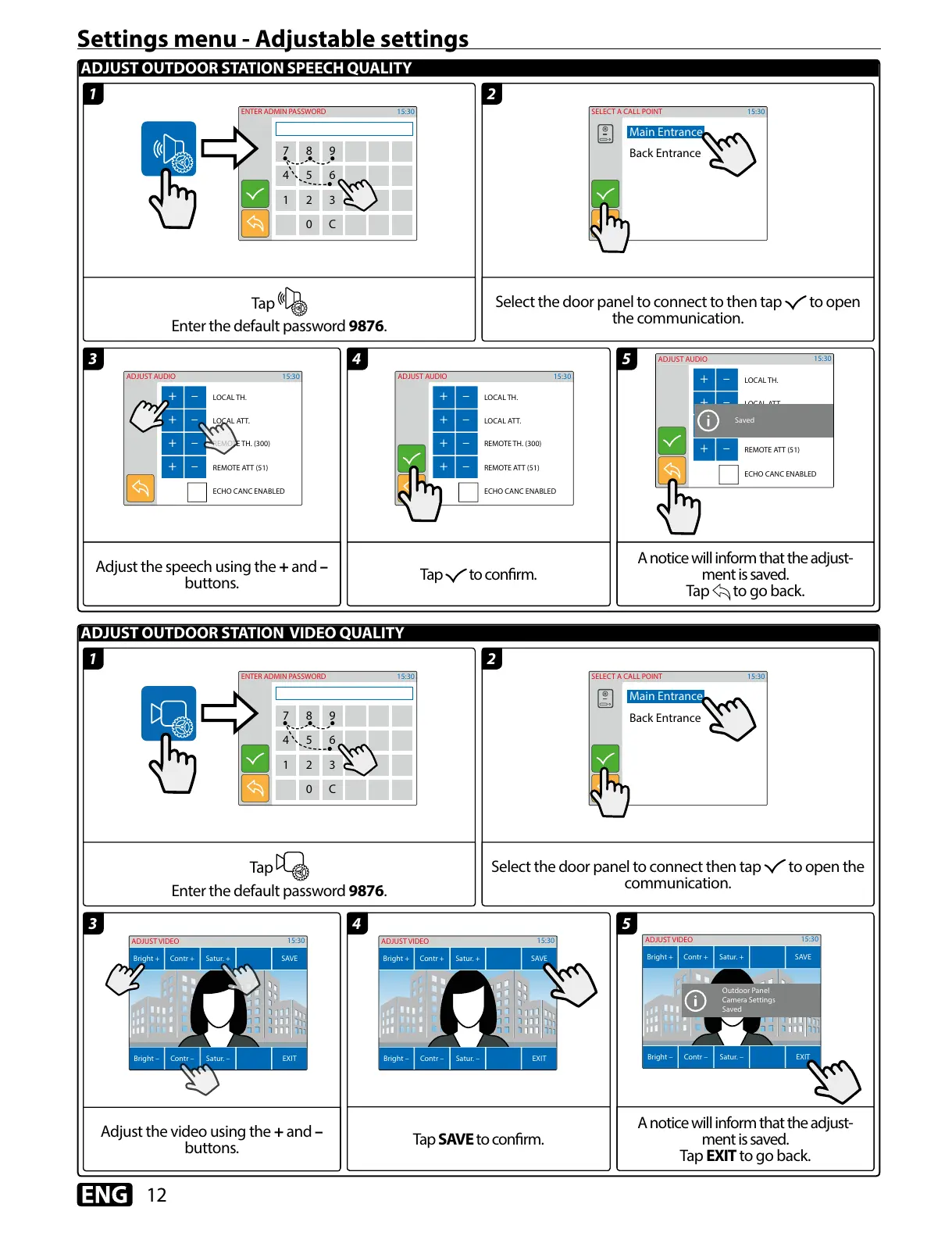

ADJUST OUTDOOR STATION SPEECH QUALITY
ADJUST OUTDOOR STATION VIDEO QUALITY
Settings menu - Adjustable settings
Main Entrance
Back Entrance
15:30
SELECT A CALL POINT
Main Entrance
Back Entrance
15:30
SELECT A CALL POINT
7 8 9
4 5 6
1 2 3
0 C
15:30
ENTER ADMIN PASSWORD
7 8 9
4 5 6
1 2 3
0 C
15:30
ENTER ADMIN PASSWORD
+ –
+ –
+ –
+ –
LOCAL TH.
LOCAL ATT.
REMOTE TH. (300)
REMOTE ATT (51)
ECHO CANC ENABLED
15:30
ADJUST AUDIO
Saved
Bright + Contr + Satur. + SAVE
Bright – Contr – Satur. – EXIT
15:30
ADJUST VIDEO
Outdoor Panel
Camera Settings
Saved
Bright + Contr + Satur. + SAVE
Bright – Contr – Satur. – EXIT
15:30
ADJUST VIDEO
+ –
+ –
+ –
+ –
LOCAL TH.
LOCAL ATT.
REMOTE TH. (300)
REMOTE ATT (51)
ECHO CANC ENABLED
15:30
ADJUST AUDIO
Bright + Contr + Satur. + SAVE
Bright – Contr – Satur. – EXIT
15:30
ADJUST VIDEO
+ –
+ –
+ –
+ –
LOCAL TH.
LOCAL ATT.
REMOTE TH. (300)
REMOTE ATT (51)
ECHO CANC ENABLED
15:30
ADJUST AUDIO
Tap
Enter the default password 9876.
Tap
Enter the default password 9876.
Adjust the speech using the + and –
buttons.
Adjust the video using the + and –
buttons.
Select the door panel to connect to then tap to open
the communication.
Select the door panel to connect then tap to open the
communication.
A notice will inform that the adjust-
ment is saved.
Tap to go back.
Tap to conrm.
Tap SAVE to conrm.
A notice will inform that the adjust-
ment is saved.
Tap EXIT to go back.
2
2
1
1
54
4
5
3
3
