Connections
Progressive Component
(DTV Y/PB/PR)

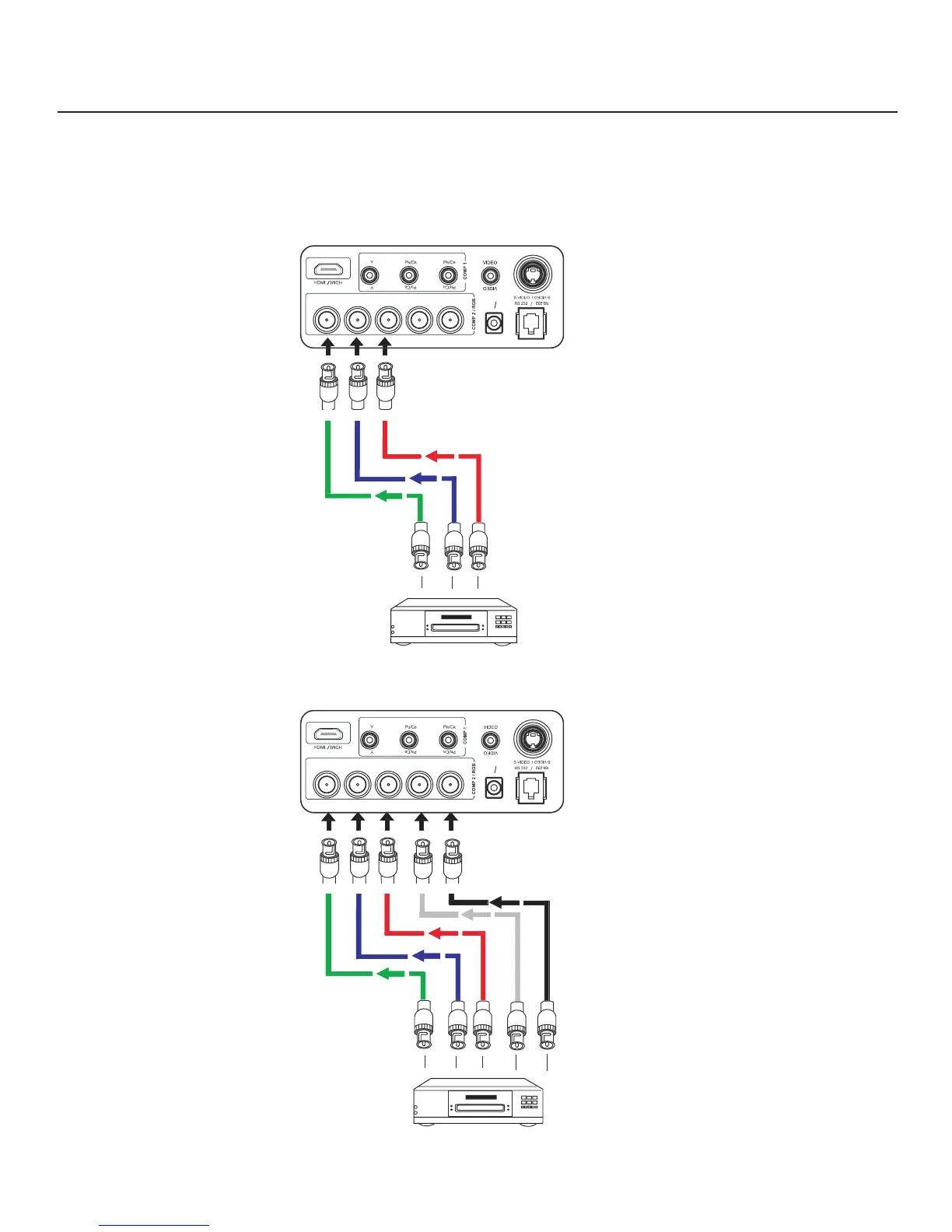

The RGB BNC input (labeled COMP 2 / RGB) supports two kinds of HDTV formats:
progressive component (DTV Y/PB/PR) and DTV RGB. The projector automatically detects
the resolution.
RGBHV (DTV RGB) 
DTV Source
Green Blue Red
(G) Y
