Viega ProPress - ProPress XL-C Installation; XL-C Fitting and Ring Procedures

Installation Instructions
30 of 38
IM-PP 724607 1218 ProPress
For Types K, L, and M Hard Copper Tubing in 2½ inches to 4 inches.

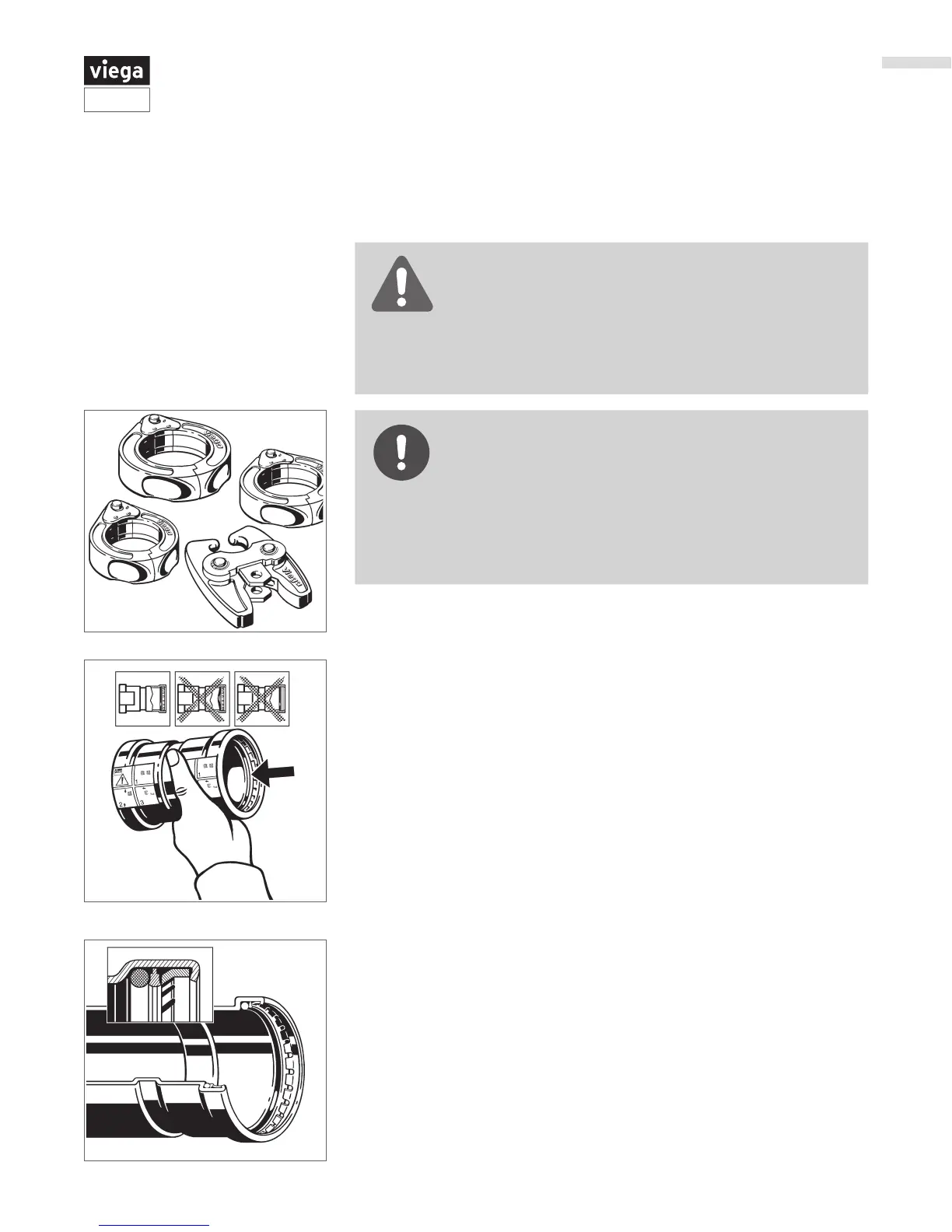

4.8.1 Viega ProPress XL-C Installation
WARNING!
Read and understand all instructions for
installing Viega ProPress XL-C (Copper)
󶈵ttings. Failure to follow all instructions may
result in extensive property damage, serious
injury, or death.
Use only rings that are compatible with ProPress
XL-C 󶈵ttings.
■ Use of incompatible rings will result in an improper
connection.
■ Do not mix actuators and rings from di󶈴erent
manufacturers.
■ Do not use rings intended for XL Bronze 󶈵ttings.
▶ Check the sealing element, separator ring, and grip ring for correct 󶈵t:
■ The tube end is not bent or damaged.
■ The tube is deburred.
■ The correct sealing element (EPDM) is in the 󶈵tting.
Illustration demonstrates proper 󶈵t of grip ring, separator ring, and sealing
element.
