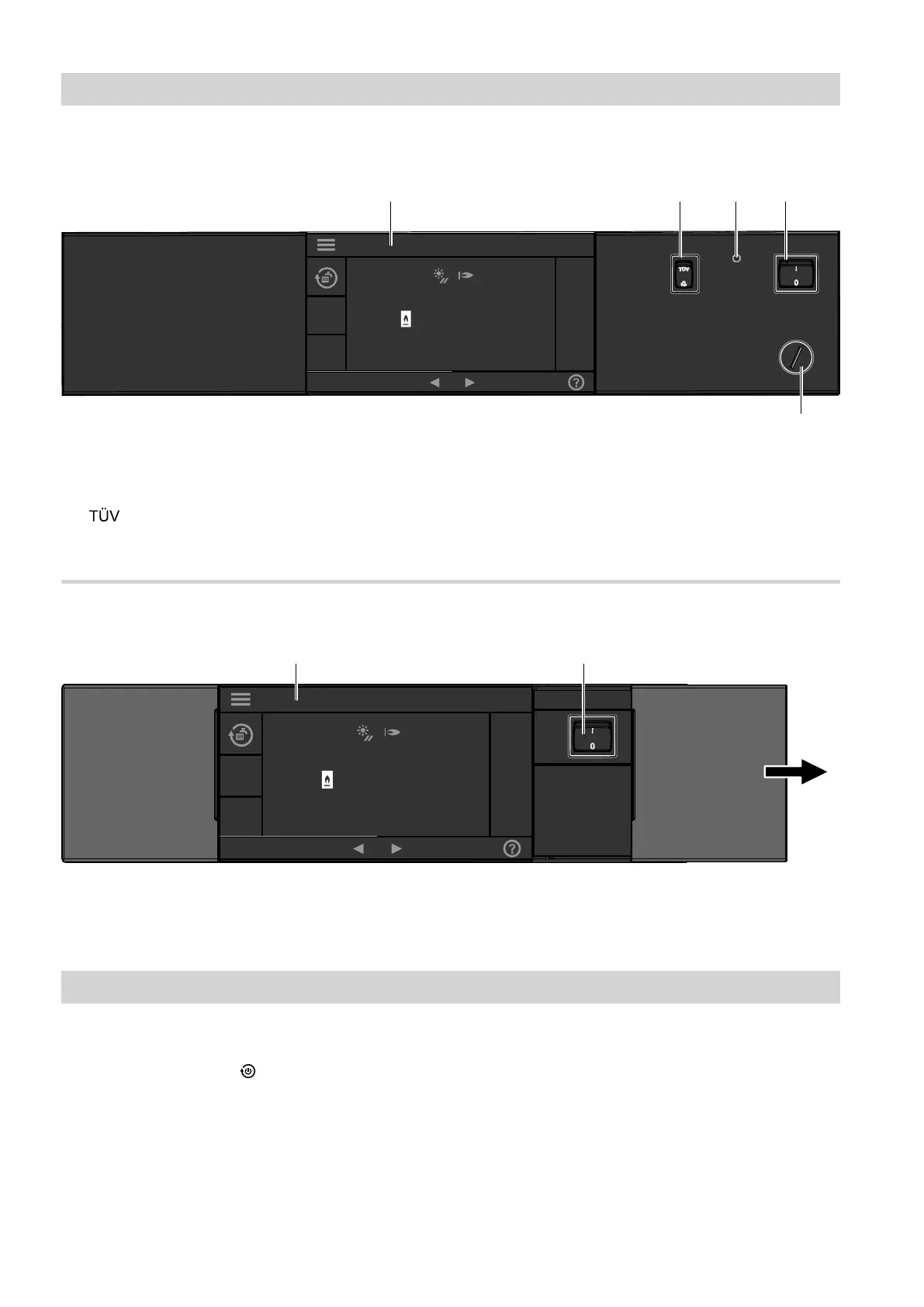

Vitotronic 100, type CC1E
Example: Single boiler constant control
50
°C
23.02.17
16:55
+
-
BA C D
E
Fig. 4
A
Display
B
For contractors only:
-button to test the high limit safety cut-out
C
For contractors only:
Reset button for high limit safety cut-out
D
ON/OFF switch
E
For contractors only:
Temperature controller
Vitotronic 100, type CC1I
Example: Single boiler constant control
Fig. 5
A
Display
B
ON/OFF switch
Shutting down the heating system
With frost protection monitoring (single boiler constant control only)
Select operating program "Standby mode".
■
No central heating
■
No DHW heating
■
Frost protection for boiler and DHW cylinder
See also chapter "Switching off the central heating" on
page 21.
Note
The circulation pumps are briefly started every 24
hours to prevent them from seizing up.
Switching on and off
Control unit controls
