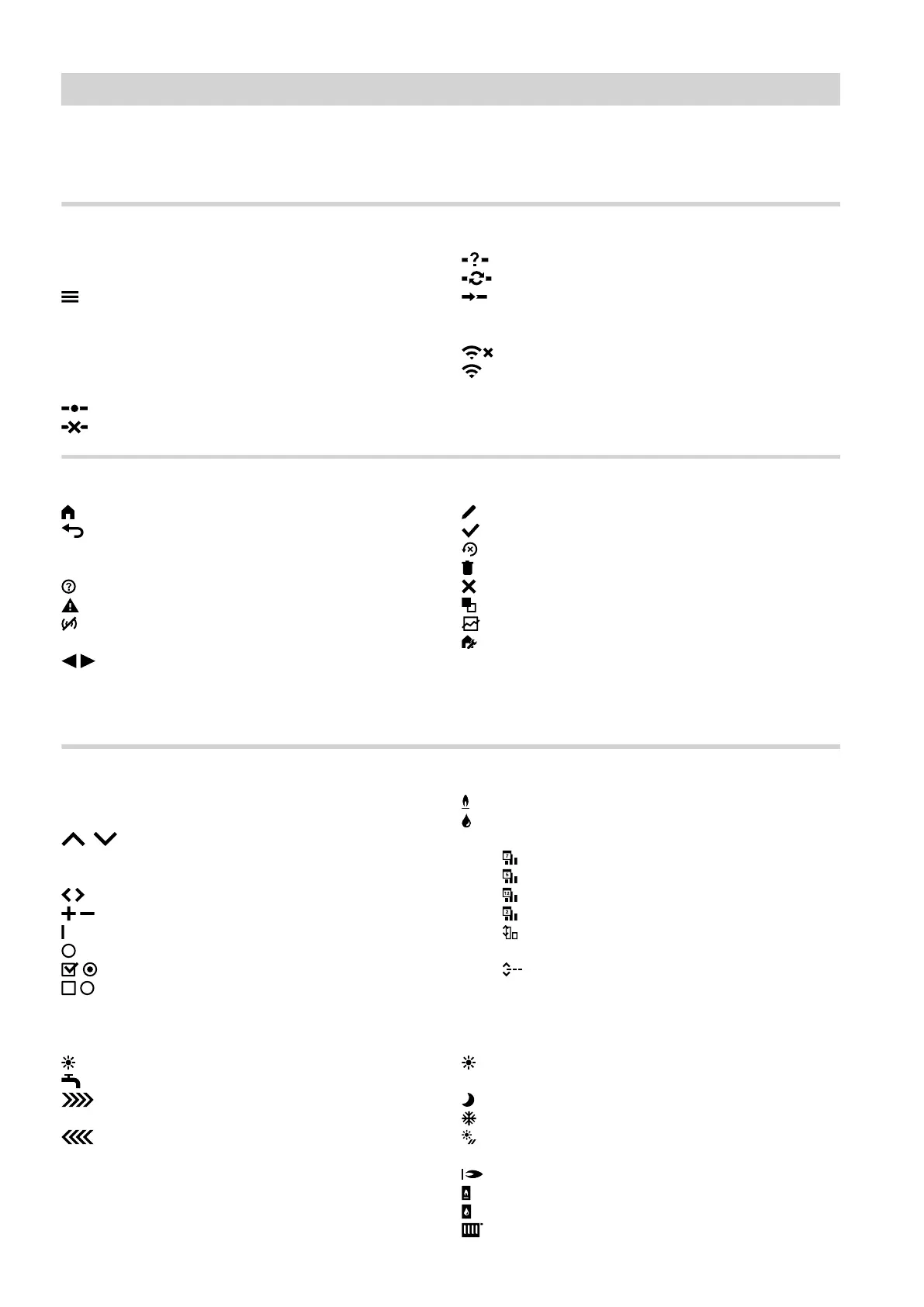

Buttons and icons in the menu bar
Buttons in the menu bar
Main menu call-up
" Heating circuit ..." Heating circuit selection
Icons in the menu bar
LAN internet interface
Connection active
No connection
Unknown error on connection
Software update is being performed
Establishing a connection
WiFi service interface
No connection
Connection active
Buttons in the navigation area
Home screen call-up
One step back in the menu
or
Abort a setting
Help text call-up
Fault message or service message call-up
Fault message or service message acknowl-
edgement
/ Energy cockpit or favourites call-up from home
screen
or
Menu scrolling
Settings adjustment
Entry or selection confirmation
Entry reset
Entry or selection deletion
Setting or selection cancellation
Copy setting
Energy statement call-up
For contractors only:
Service menu call-up
Buttons and icons in the function area
General buttons in the function area
/ Scroll up or down
or
Increase or decrease value
/ Scroll left or right
/ Increase or decrease value
Function on
Function off
/ Entry selection
/ Entry deselection
Buttons and icons in the energy cockpit
Solar energy yield call-up
DHW cylinder heat-up condition call-up
The DHW cylinder is heated by the solar thermal
system.
The DHW cylinder is heated by the boiler.
Gas boiler operating data call-up
Oil boiler operating data call-up
Fuel consumption call-up:
Last 7 days
Last 5 weeks
Last 12 months
Last 2 years
Energy proportions setup for central heating
and DHW heating
Energy consumption correction factor setup
Central heating and DHW heating buttons and
icons
Central heating at standard room temperature
(preferred temperature)
Central heating with reduced room temperature
Frost protection enabled
In conjunction with a solar thermal system:
Solar circuit pump running
Burner (gas or oil) in operation
Operation with gas
Operation with oil
Central heating settings menu open
Appendix
Buttons and icons
5798582
