Siting the DHW cylinder and checking the anode connection
1.
A
3.
3x
2.
A
B
B
A

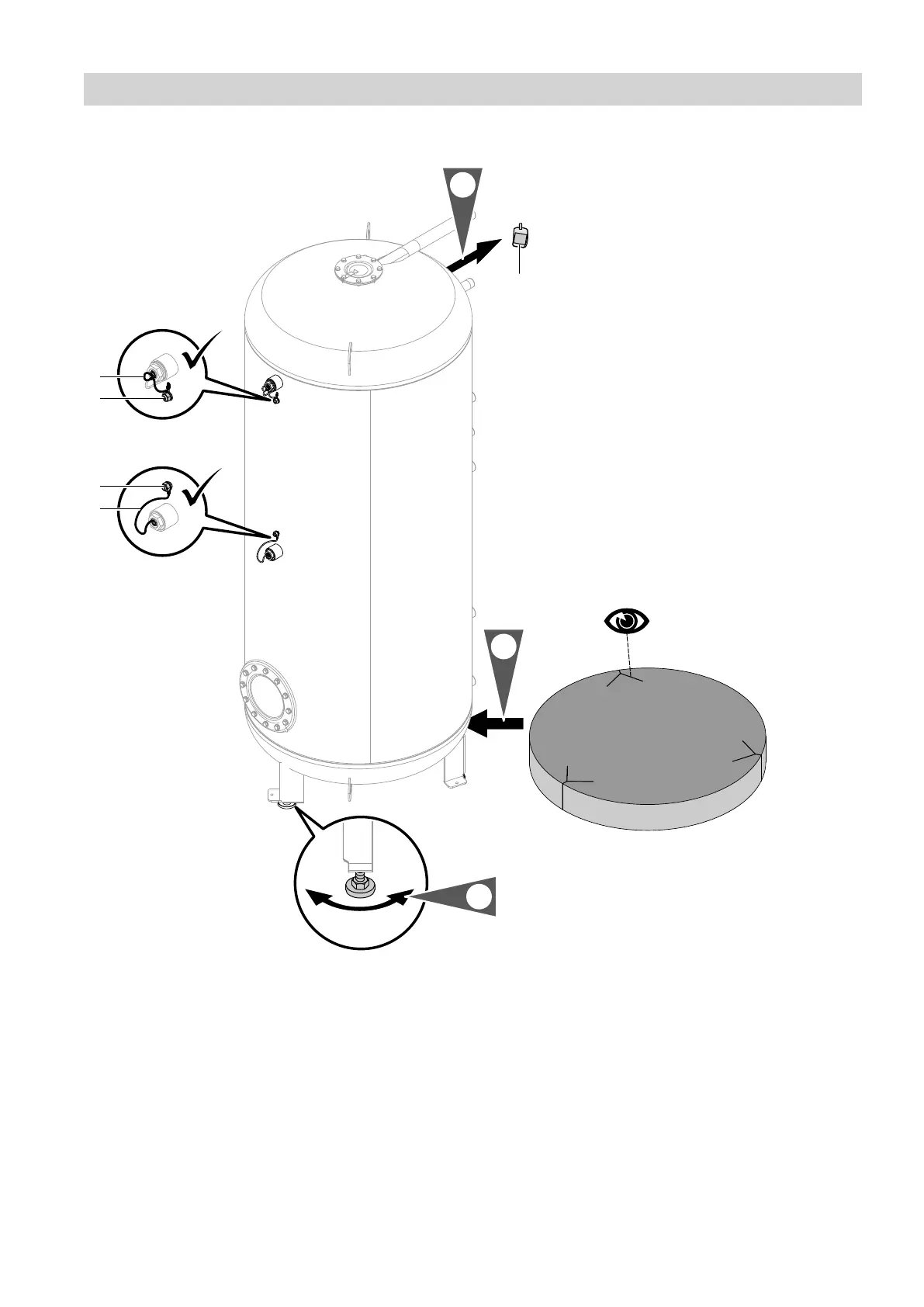

Fig. 8
A
Magnesium anode
B
Earth cable
Note
Check that the earth cable is connected to the magne-
sium anode.
■
Insert the adjustable feet into the legs as far as they
will go and use them to level the DHW cylinder.
■
Never extend the adjustable feet beyond a total
length of 35 mm.
