Fitting the cylinder temperature sensor and thermometer sensor (if supplied)
8.
2.
6.
5.
3.
4.
1.
7.
8.

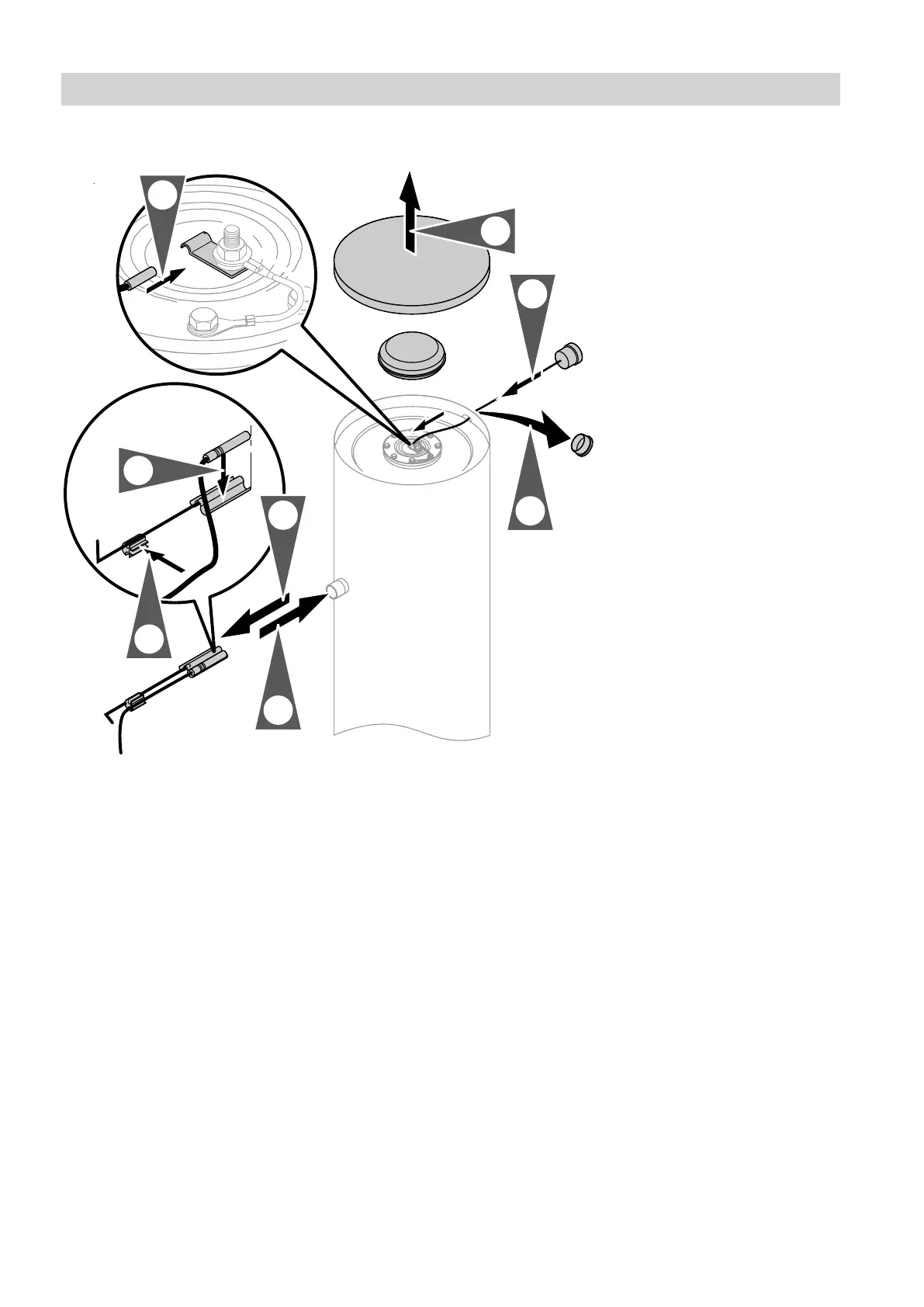

Fig. 5
■
300 l: Sensor retainer is supplied with the fascia.
■
Secure the sensor on the outside of the sensor
retainer contact spring (not in the groove) so that it is
flush with the front of the spring.
■
Never wrap insulating tape around the sensor.
■
Insert the sensor retainer together with the sensor as
far as they will go into the sensor well.
■
Insert the thermometer sensor as far as it will go into
the clamping bracket on the flange cover.
Siting DHW cylinders (up to 300 l)
5813557
