Viessmann VITOCELL 100-V Installation Instructions

14
Fitting the thermometer (if supplied), thermometer sensor and cover strips
A
7.
1.
5.
6.
3.
2.
4.

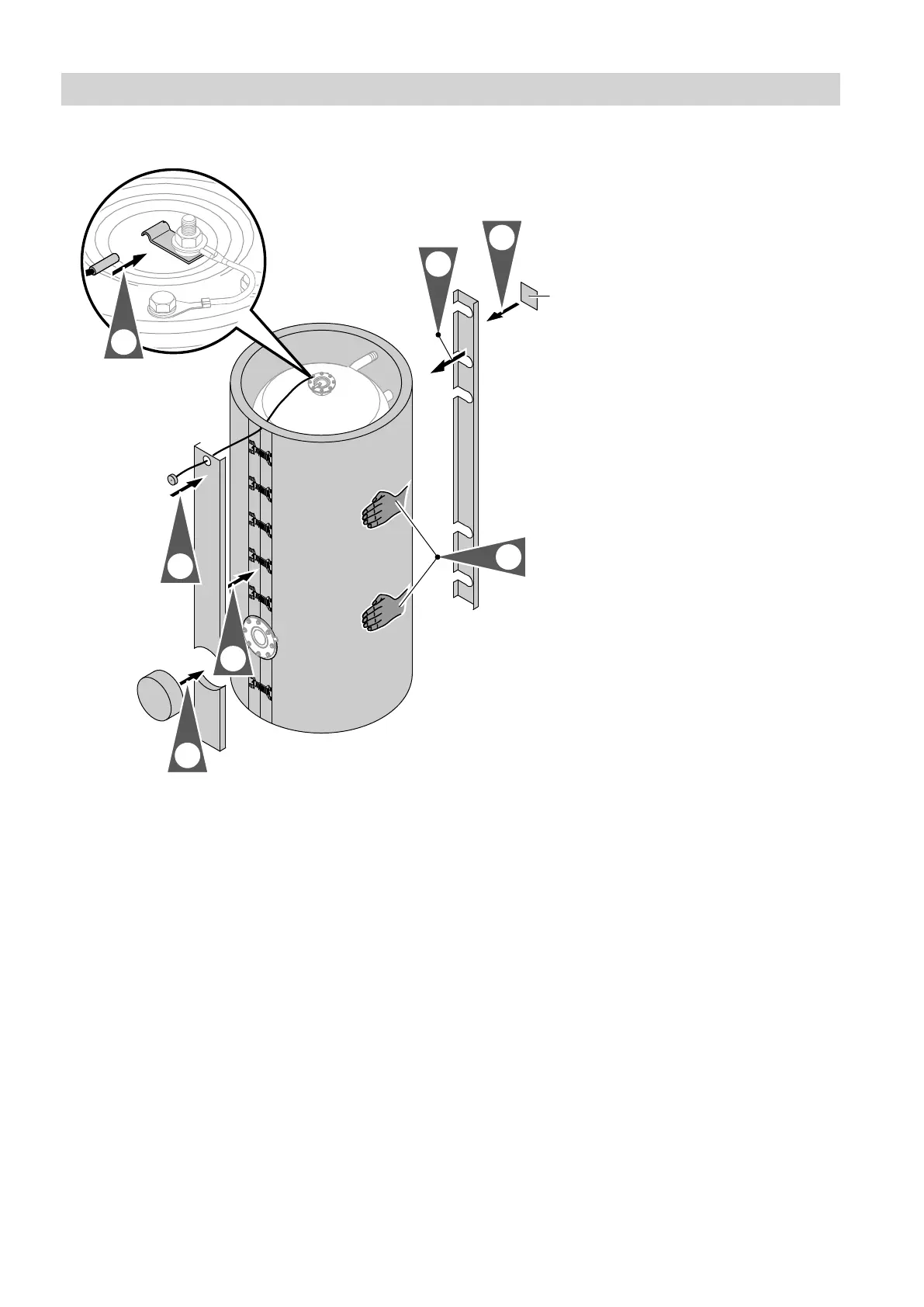

Fig. 11
A
Type plate (self-adhesive)
1. Fit the thermal insulation jacket evenly around the
cylinder body by patting it.
2. For 500 l: Guide the thermometer lead through the
front cover strip and thermal insulation jacket.
Note
If no thermometer is being installed, seal the hole
with a cover (pipe collar).
3. For 500 l: Insert the thermometer sensor as far as
it will go into the clamping bracket.
4. Fit the flange cover.
5. Fit the front cover strip.
6. Fit the back cover strip.
7. Affix the type plate.
Thermal insulation (500 to 950 l) (cont.)
