Viessmann VITOCELL 100-V Installation Instructions

16

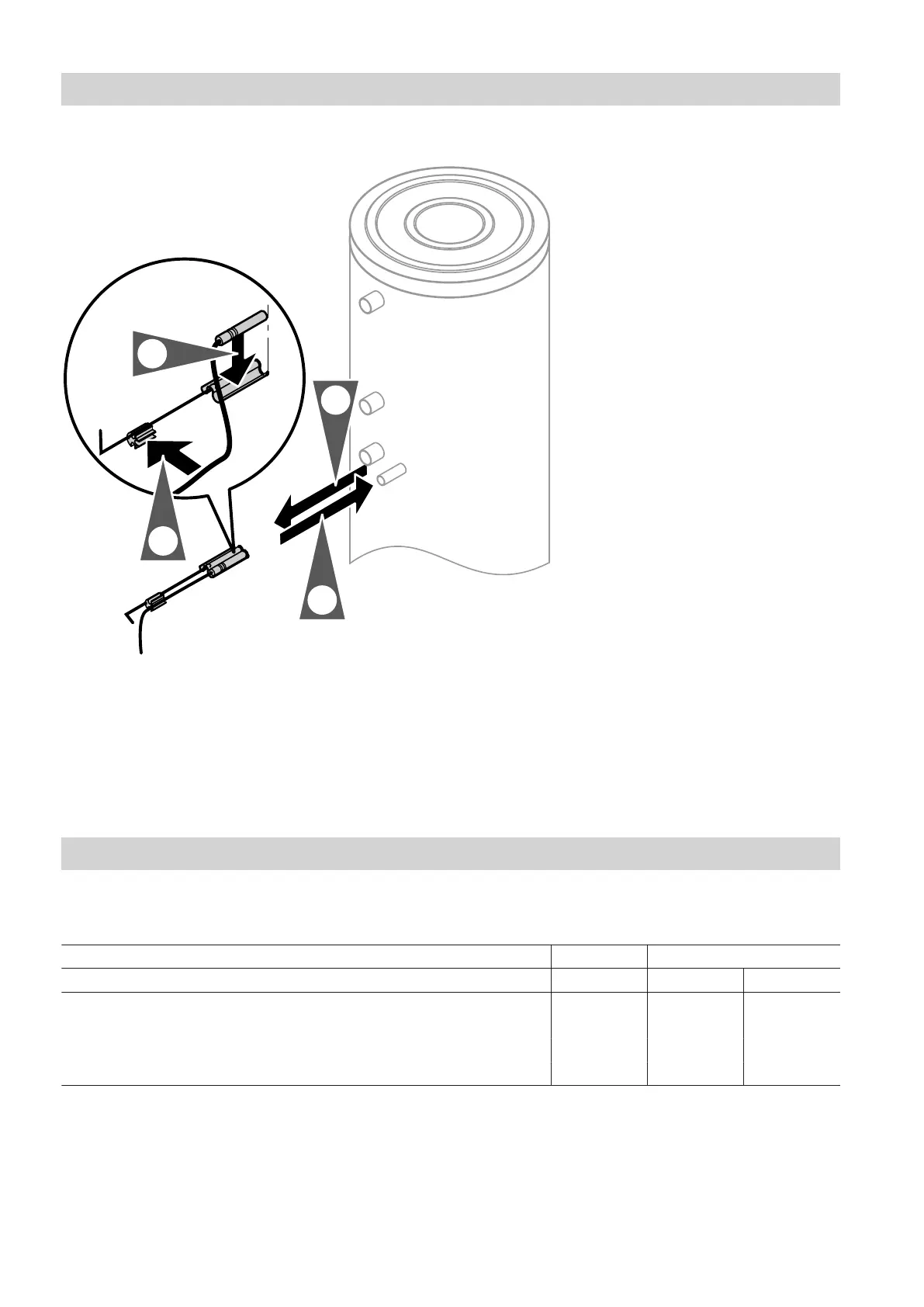

Fitting the cylinder temperature sensor or temperature controller
4.
1.
2.
3.
Fig. 13
■
Secure the sensor on the outside of the sensor
retainer contact spring (not in the groove) so that it is
flush with the front of the spring.
■
Never wrap insulating tape around the sensor.
■
Insert the sensor retainer with sensor into the sensor
well as far as it will go.
Preparing a multi cylinder bank
300 and 500 l:
Dimensions of the connections of Viessmann headers (accessories)
Capacity per cylinder l 300 500
Number of cylinders 2 2 3
Connections
■
Heating water flow and return DN 50 50 50
■
Cold water, DHW R 1¼ 1¼ 1½
DHW circulation R 1 1 1
500 l DHW cylinders
5813557
