Viessmann VITOCELL 100-V - DHW Circulation Pipe for Cylinder Banks

17

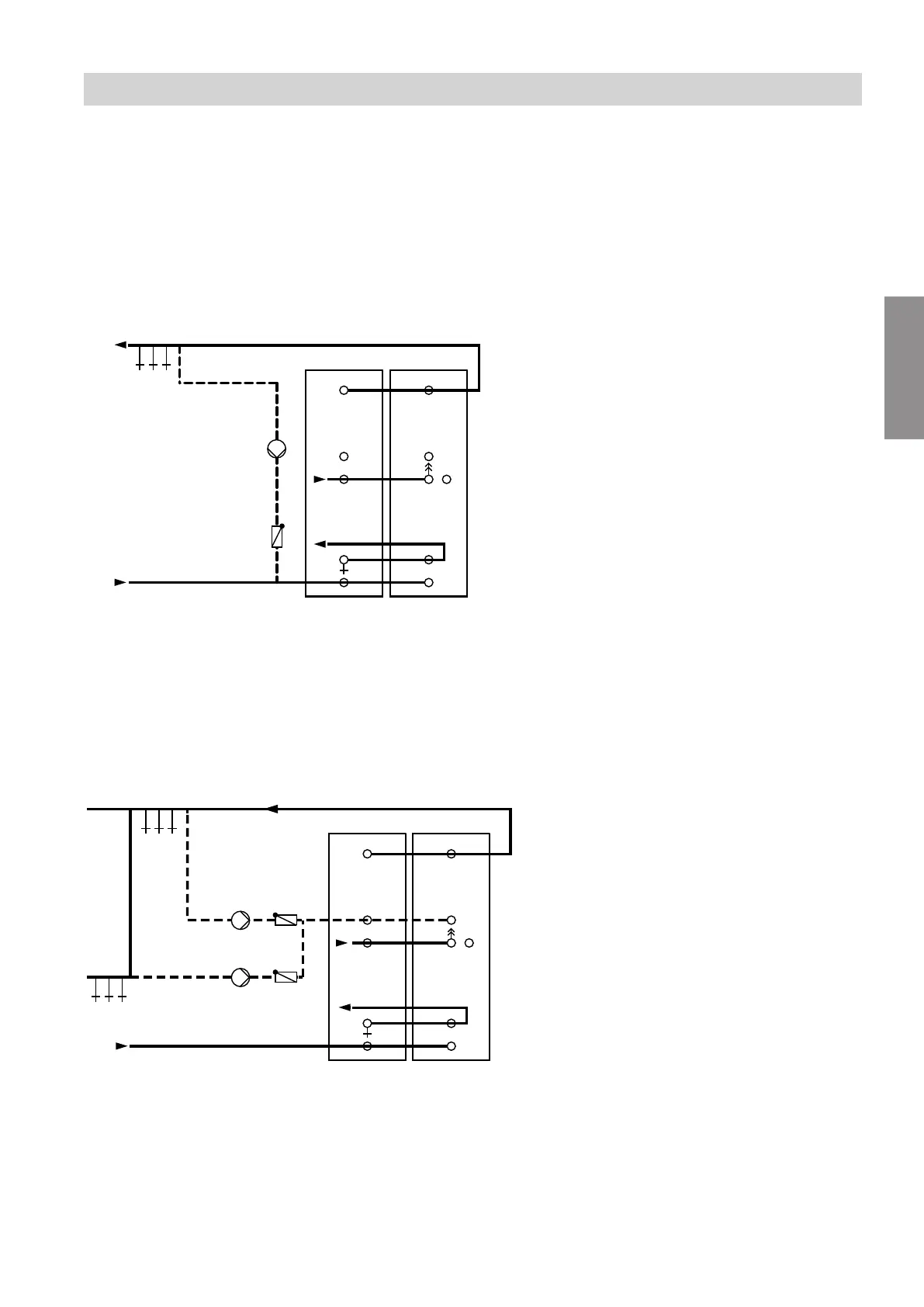

DHW circulation pipe for cylinder banks
Note
Always implement the cylinder banks with connected
DHW circulation.
Connect the DHW circulation pipe when linking several
cylinders in conjunction with boilers or district heating
systems without a heating water return temperature
limiting facility and a DHW circulation pipe:
A
WW
KW
Z
ZP
Fig. 14
A
Spring-loaded check valve
KW Cold water
WW DHW
Z DHW circulation pipe
ZP DHW circulation pump
Connect the DHW circulation pipe when connecting
several cylinders in conjunction with district heating
systems with a heating water return temperature limit-
ing facility and/or several DHW circulation pipes:
WW
KW
ZP
Z
ZP
A
A
Fig. 15
A
Spring-loaded check valve
KW Cold water
WW DHW
Z DHW circulation pipe
ZP DHW circulation pump
Installation sequence
Connections on the DHW side (cont.)
6150608
Installation
