Commissioning the DHW cylinder
1x
7x
8x
A
B
F E B A
CD
2x
E
G
300 l

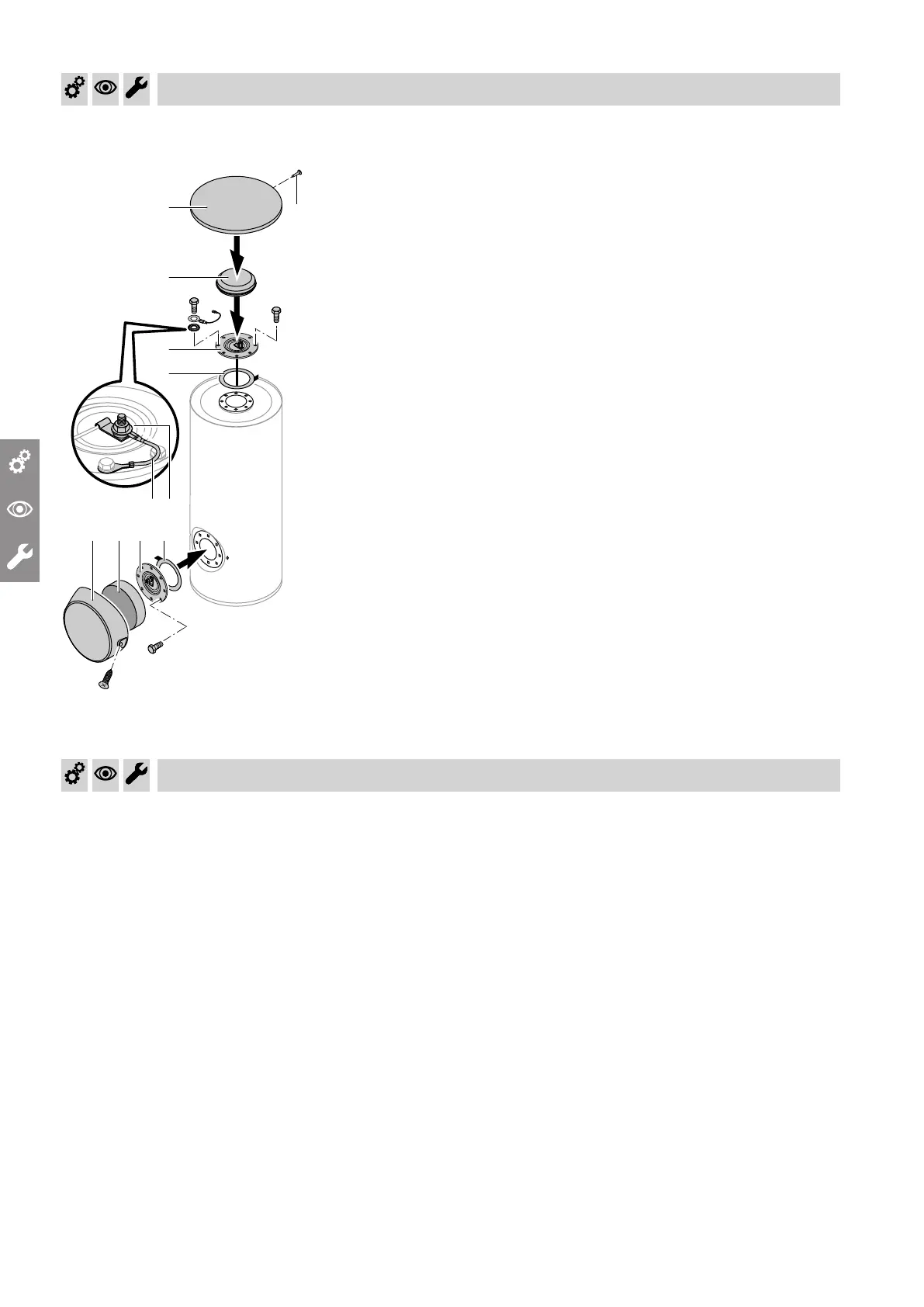

Fig. 18
1. Reconnect the DHW cylinder to the pipework.
2.
Insert new gaskets
A
underneath flange covers
B
.
3.
Fit flange cover
B
with earth cable
C
and tighten
the screws with a maximum torque of 25 Nm.
4.
Push earth cable
C
onto tab
D
.
5. Fill the DHW cylinder on the DHW side.
Retighten the flange cover with a maximum torque
of 25 Nm.
6. Fit the thermometer sensor (if installed).
Note
■
160 to 200 l:
Guide the thermometer cable through the groove
in the thermal insulation and the hole in the sheet
steel casing.
■
300 l:
Route the thermometer lead through the groove
in fleece or EPS flange insulation
E
.
7. Install thermal insulation (fleece or EPS flange
insulation/thermal insulation mat)
E
, cap
F
and
top cover
G
(300 l version with screw).
Checking the connections on the water side for tightness
Commissioning, inspection, maintenance
Commissioning the DHW cylinder
