Viessmann VITOCELL 100-W Installation And Service Instructions For Contractors

10
A
1.
5.
3.
4.
2.

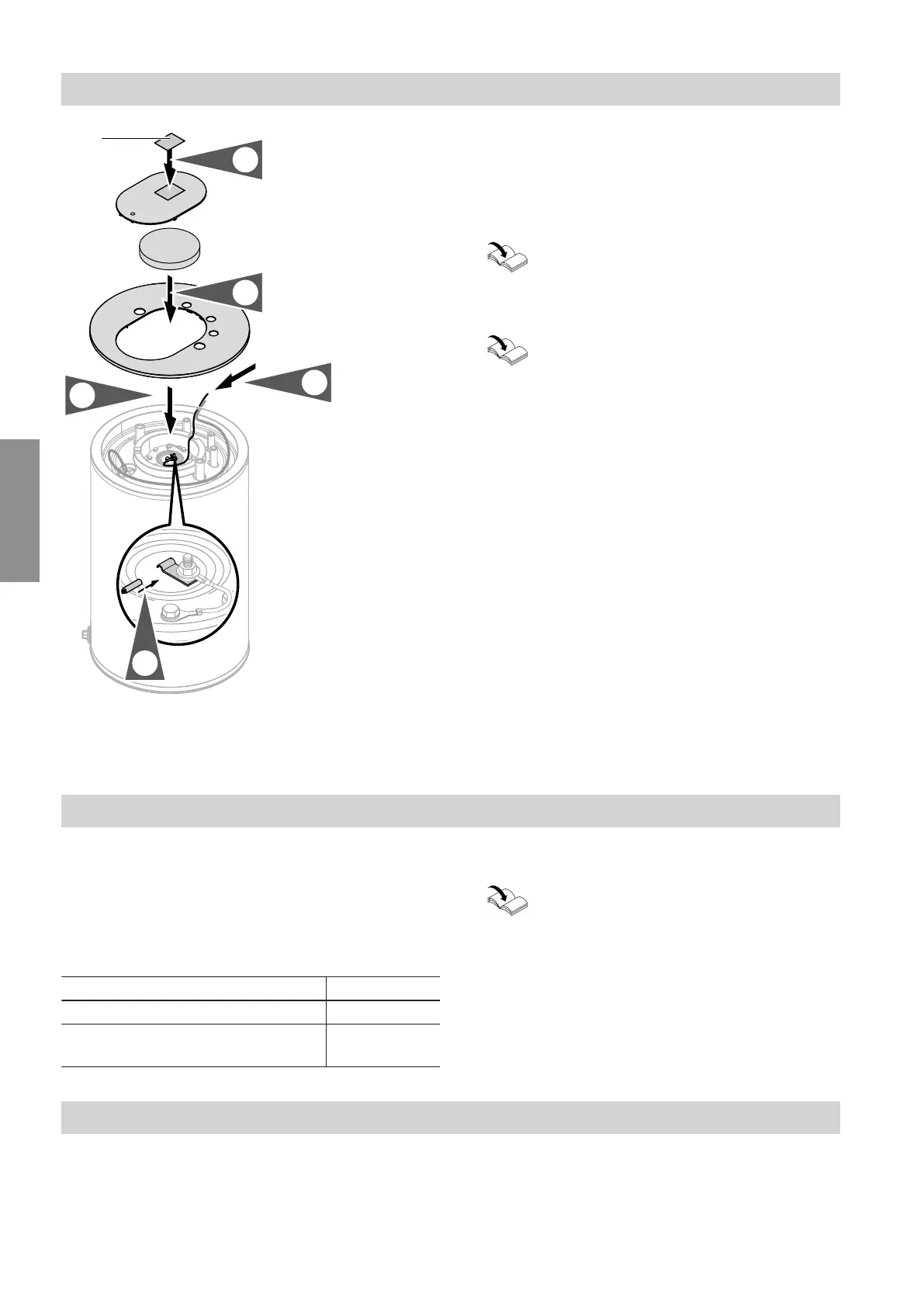

Fig. 6
A
Type plate
1. Route the thermometer lead through the groove in
the flange rim.
2. Insert the thermometer sensor as far as it will go
into the clamping bracket.
Installation instructions, casing for connect-
ing leads/cables
6. Secure the thermometer (accessory) to the wall.
Installation instructions for wall thermometer
Connections on the heating water side
■
Connect all pipework with detachable fittings.
■
Seal any connections that are not required with red
brass caps.
■
Adjust the temperature controller and high limit
safety cut-out so that the DHW temperature in the
DHW cylinder does not exceed 95 °C.
Permissible temperature 160 °C
Permissible operating pressure 10 bar (1 MPa)
Test pressure
16 bar
(1.6 MPa)
1. Connect the pipes on the heating water side:
Connection set installation instructions
2. Only for heating water flow temperatures in excess
of 110 °C:
Install an additional type-tested high limit safety
cut-out if the system does not already have one.
For this, use a temperature limiter and high limit
safety cut-out combination device (TR/STB).
Connections on the DHW side
■
For connections on the DHW side, observe
DIN 1988 and DIN 4753.
■
Seal in the drain valve at the drain connection and
check its function.
■
Connect all pipework with detachable fittings.
■
Seal any connections that are not required with red
brass caps.
Installation sequence
Thermometer sensor (if supplied), closing the appliance
6150584
Installation
