9
6.
3.
4.
1.
2.
A
B
5.

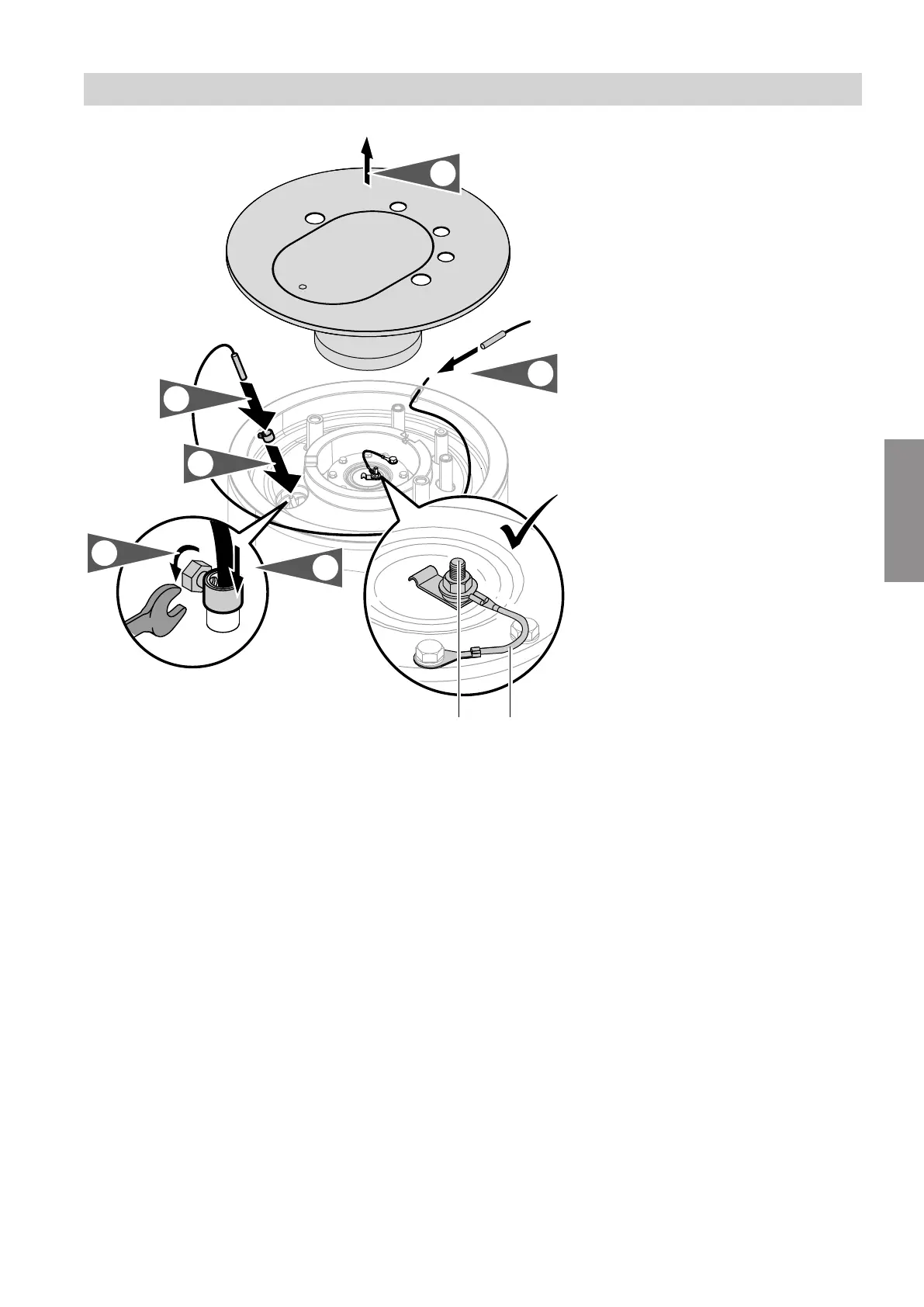

Fig. 5
A
Protective magnesium anode
B
Earth cable
2. Route the sensor lead around the r.h. side past the
cylinder return to the sensor well.
Note
Push through the thermal insulation to route the
sensor lead through the opening.
Note
Never wrap insulating tape around the sensor.
5. Insert the cylinder temperature sensor into the sen-
sor well as far as it will go.
6. Secure sensor lead with strain relief sleeve.
Installation sequence
Cylinder temperature sensor, anode connection
6150584
Installation
