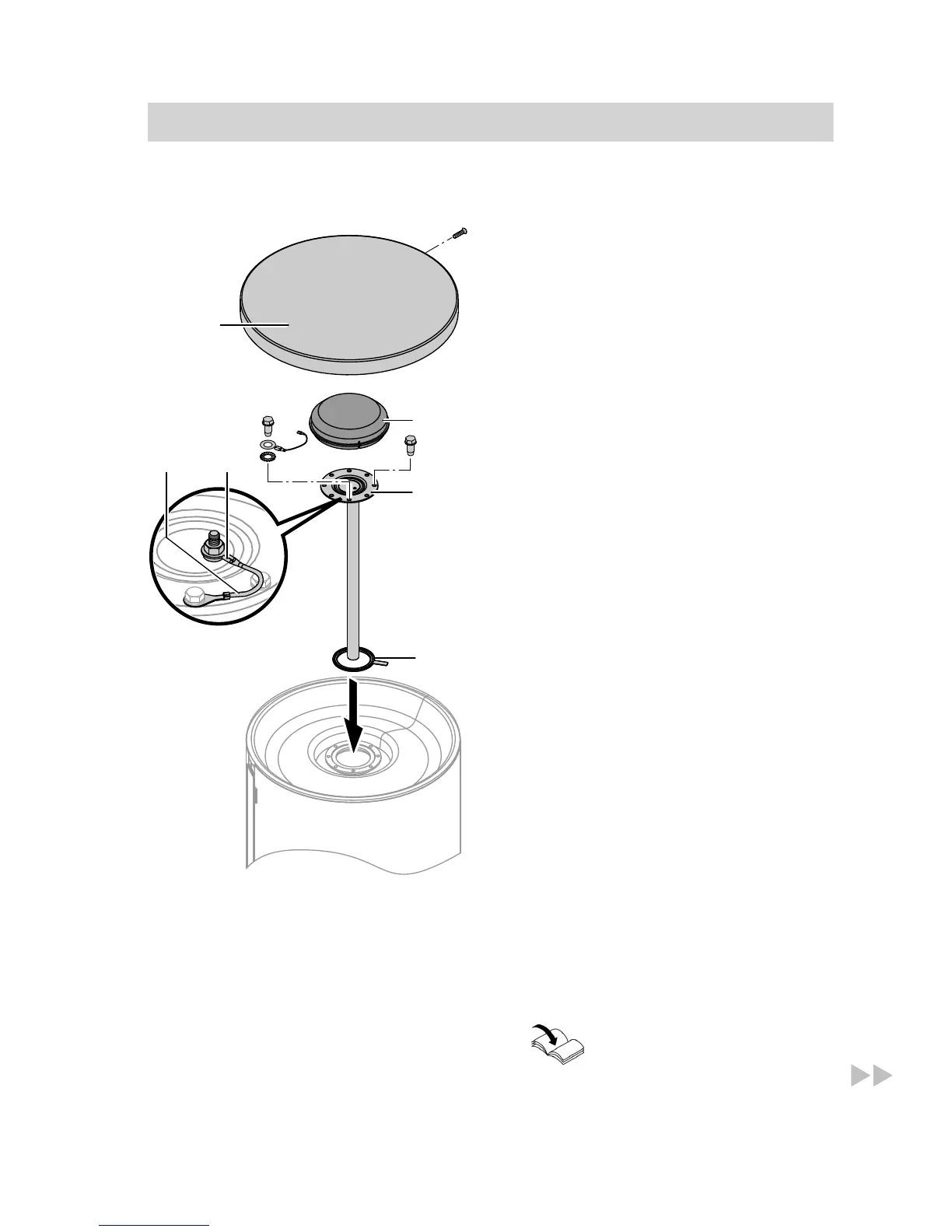

1. Reconnect the DHW cylinder to the
pipework.
2.
Insert new gasket G under flange
cover
E
.
3.
Mount flange cover E with earth
cable
C
and tighten the screws with
a maximum torque of 25 Nm.
4.
Push earth cable C onto tab D.
5. Fill the DHW cylinder from the DHW
side, then retighten flange cover
E
with a torque of 25 Nm.
6.
Mount flange insulation B and cover
A
.
Replacing the Vitosolic 100/solar control module
1. Remove thermal insulation towards
the front.
2. Remove the Vitosolic 100 towards
the front
or
remove the solar control module by
pulling it forward.
3. Open the control unit casing and dis-
connect the cables/leads.
Vitosolic 100/solar control
module installation and serv-
ice instructions
Commissioning, inspection, maintenance
Further details regarding the individual steps
(cont.)
5773 800 GB
