Vitodens 100-W, B1HE/B1KE Combi Installation/Service
Applicability
The boiler serial number must be provided when ordering
replacement parts. Both the 16-digit serial number bar
code on the rating plate and the 12-digit ASME serial
number correlate to each other. Providing either serial
number is sufficient.
Model No. Serial No.
B1HE - 85 7722772
B1HE - 120 7722773
B1HE - 150 7722774
B1HE - 199 7722775
B1KE - 120 7722776
B1KE - 199 7722777
IMPORTANT
General Information

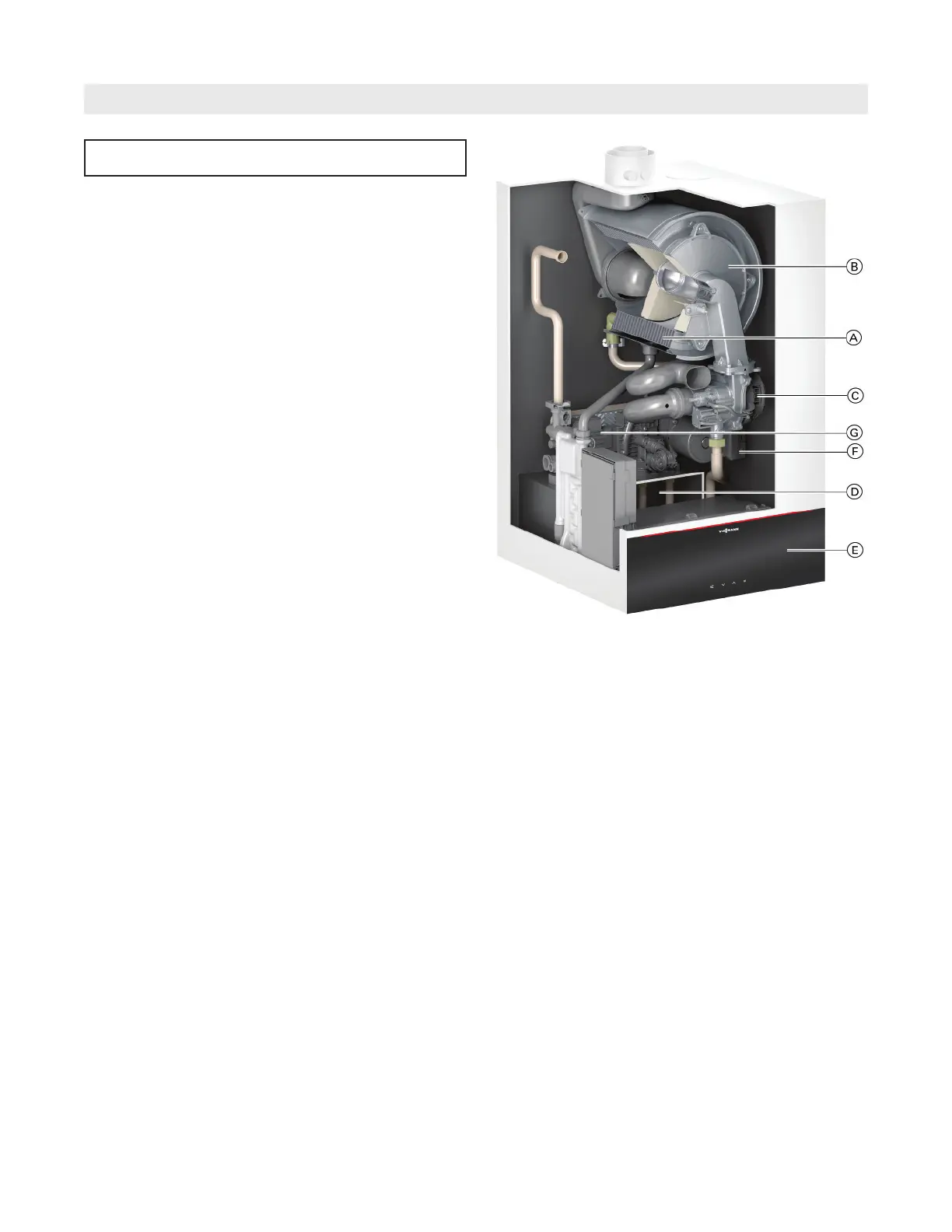

Boiler cross-section
Legend
A Inox-Radial stainless steel heat exchanger
B Stainless steel MatrixPlus cylinder burner
C Burner blower
D Gas and hydronic connections
E Black and white 3.5 inch boiler control display
F Integrated boiler/DHW production pump
G DHW plate heat exchanger (combi boilers only)
To Next Page
