Boiler Connections
16
Wall Mounting

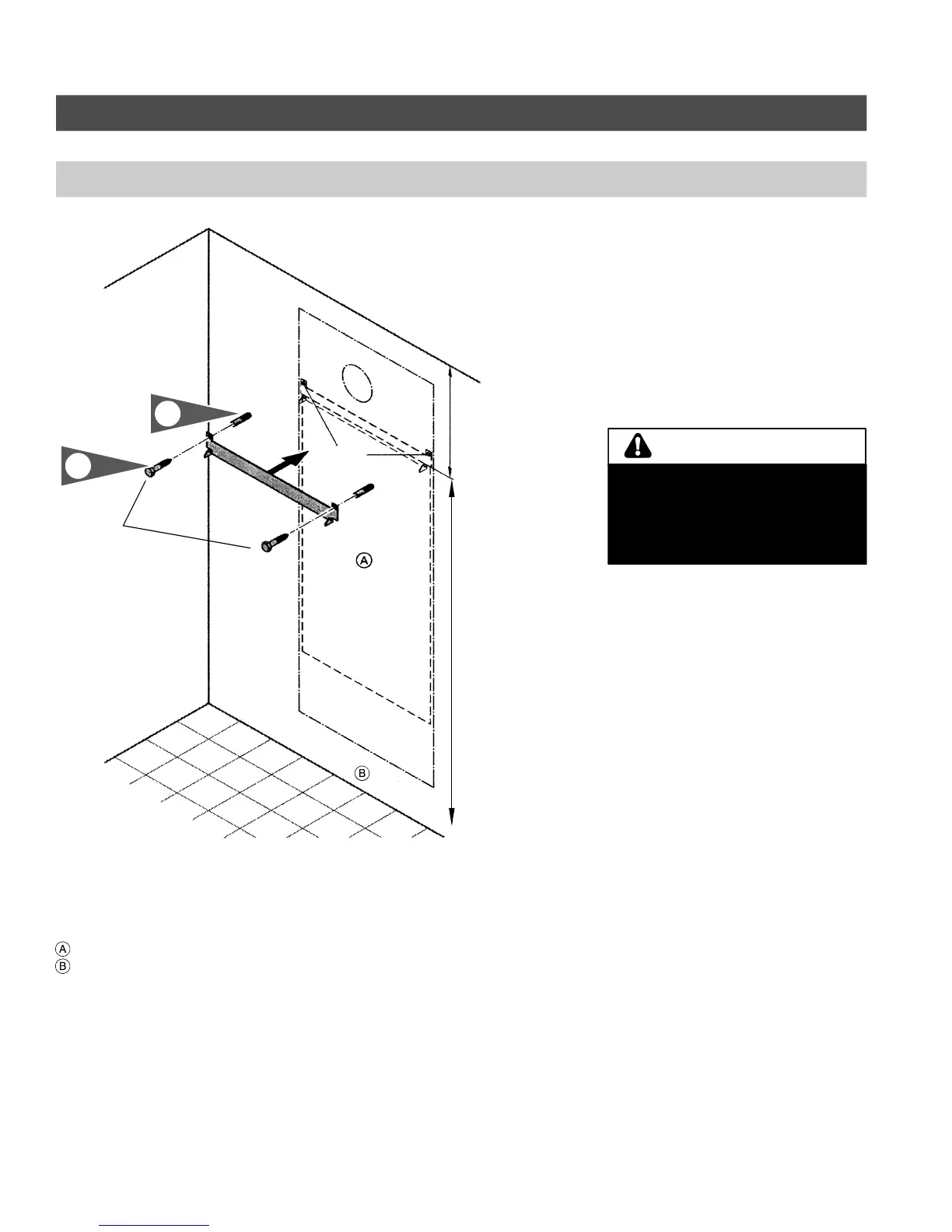

Wall mounting bracket installation
Legend
Mounting template
Finished floor level
Dimensions
a 12” / 300mm
b min. 45” / 1143mm
The Vitodens 100-W can be
wall-mounted on
H a brick/concrete wall
H wood studs
H metal studs
Following are the installation
instructions for the mounting bracket
on each material. Skip to the
installation instructions applicable to
your installation requirements.
Installation of mounting bracket on
brick/concrete wall:
1. Drill holes (Ø
3
/
8
”/10 mm), using
mounting template supplied with the
boiler.
2. Align wall mounting bracket and
attach to wall with the screws and
plastic anchors supplied.
5581 775 1.3
Ø
3
/
8
” /
10mm
2x
1.
2.
a
b
Whichever mounting method is used,
ensure that the bracket is tightly and
securely fastened to wall. Failure to
secure boiler properly could cause
boiler to loosen, posing a severe
safety hazard.
