Viessmann WB1A007 Installation And Servicing Instructions

Boiler Connections

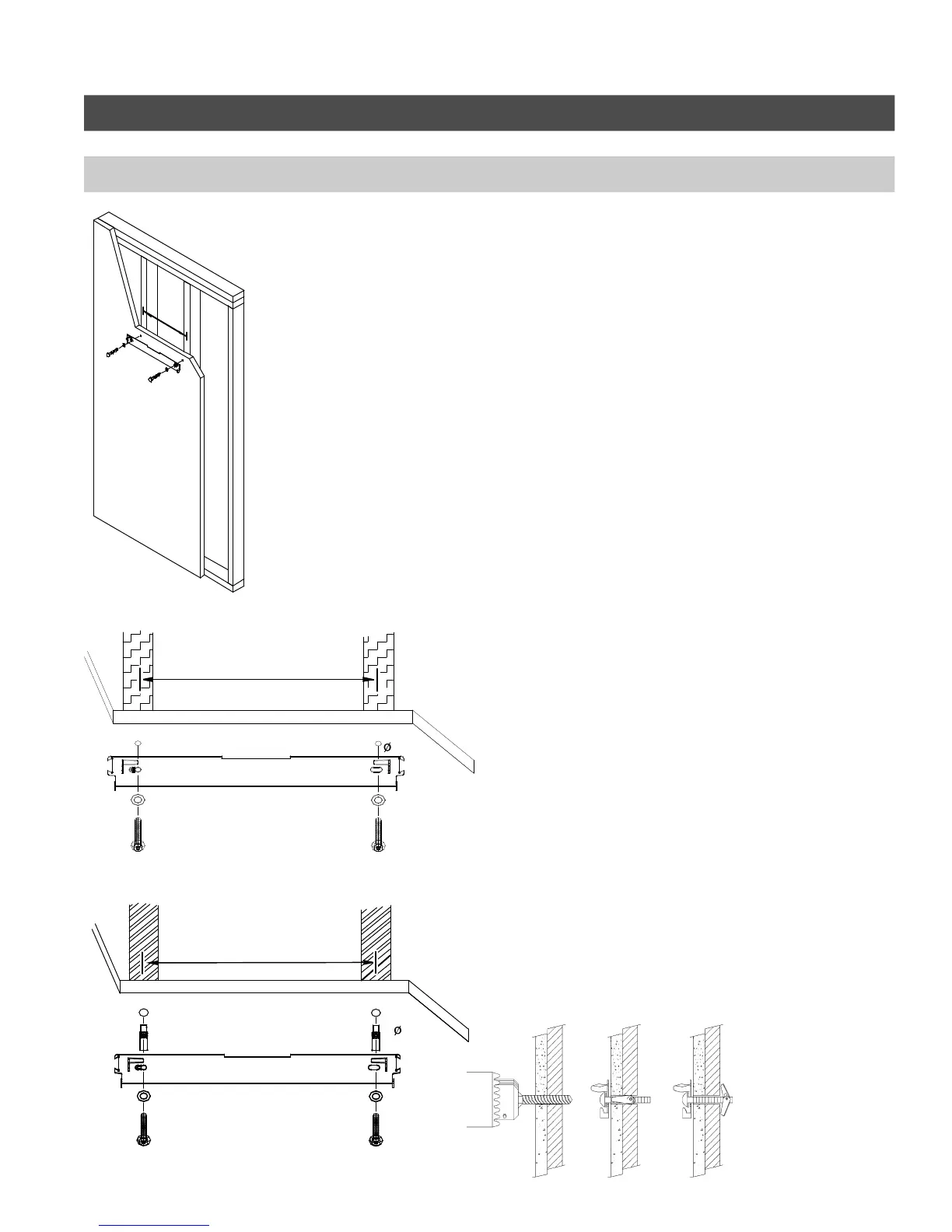

Installation of mounting bracket
a
a = 16”/407 mm
Installation of mounting bracket on wood studs
16”/407 mm
3/16”
2x
Installation of mounting bracket on metal studs
5/8”
2x
16”/407 mm
17
Wall Mounting (continued)
Mounting bracket installation (continued)
Installation of mounting bracket on
wood and metal studs
To mount the Vitodens 100-W boiler
on wood or metal studs, install
mounting bracket on wall as shown on
previous page.
Refer to drawings on the left and
below for more detailed installation
information.
Install mounting bracket on wood studs
as per illustration.
Drill
3
/
16
” pilot holes to insert mounting
bolts.
Ensure that holes are located in the
center of each wood stud.
Install mounting bracket on metal studs
as per illustration.
Drill
5
/
8
” pilot holes to insert mounting
bolts.
Ensure that holes are located in the
center of each metal stud.
Secure mounting bracket with bolts to
metal studs as shown.
5581 775 1.3
