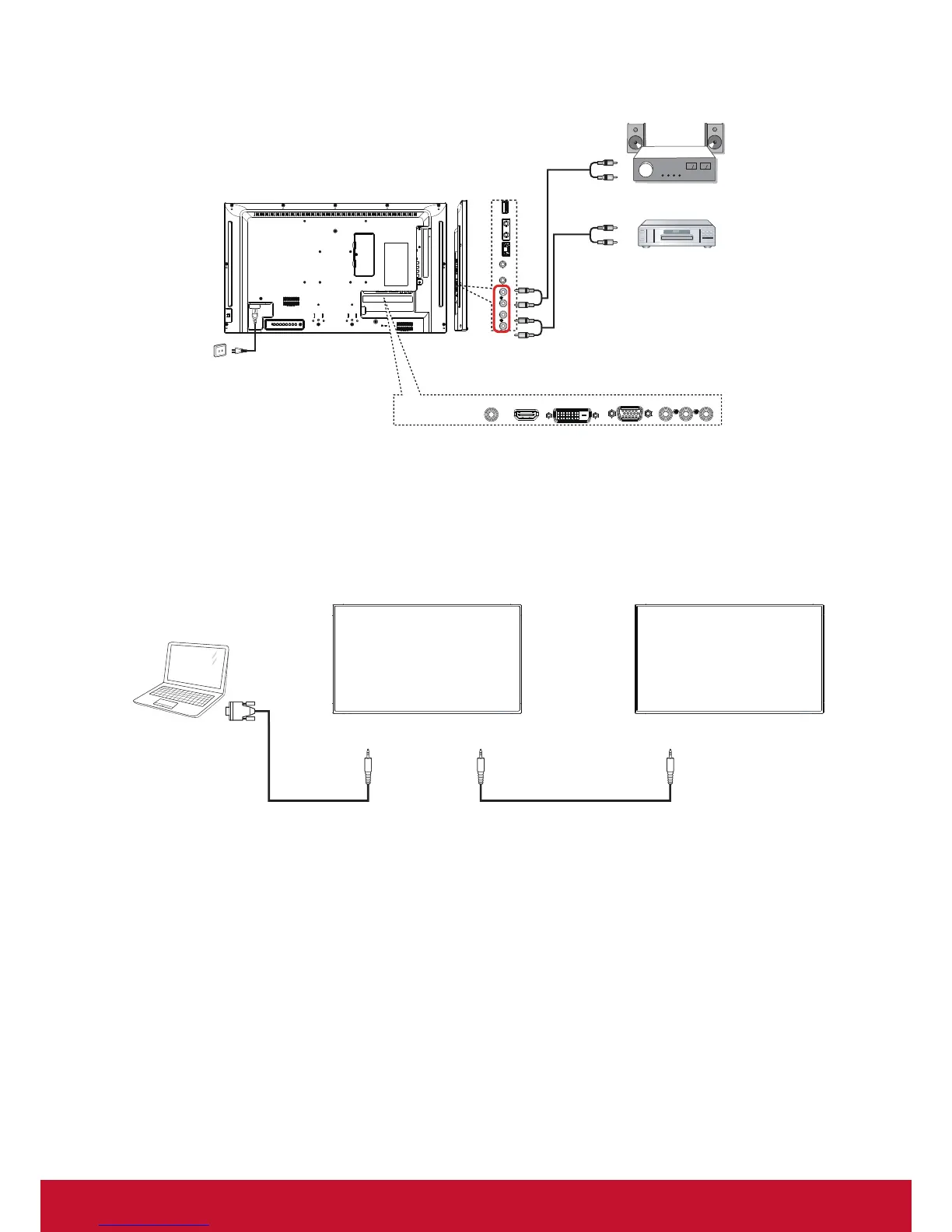

3.3. Connecting Audio Equipment
3.3.1. Connecting an external audio device
AC IN
AC IN
LRL R
INOUTRJ45IN USB
OUT
HDMI IN DVI IN COMPONENT INVGA INPC Line IN
PC
HDMI Out
[HDMI IN]
LRL R
INOUTRJ45IN
USB
OUT
HDMI IN DVI IN COMPONENT INVGA INPC Line IN
DVD / VCR / VCD
STEREO AMPLIFIER
COMPONENT OUT (YPbPr)
AUDIO IN
AUDIO OUT
3.4. Connecting Multiple Displays in a Daisy-chain Configuration
You can interconnect multiple displays to create a daisy-chain conguration for applications such as a video
wall.
3.4.1. Display control connection
Connect the [RS232C OUT] connector of DISPLAY 1 to the [RS232C IN] connector of DISPLAY 2.
PC
[RS-232C]
DISPLAY 1
[RS-232C IN] [RS-232C OUT] [RS-232C IN]
DISPLAY 2
