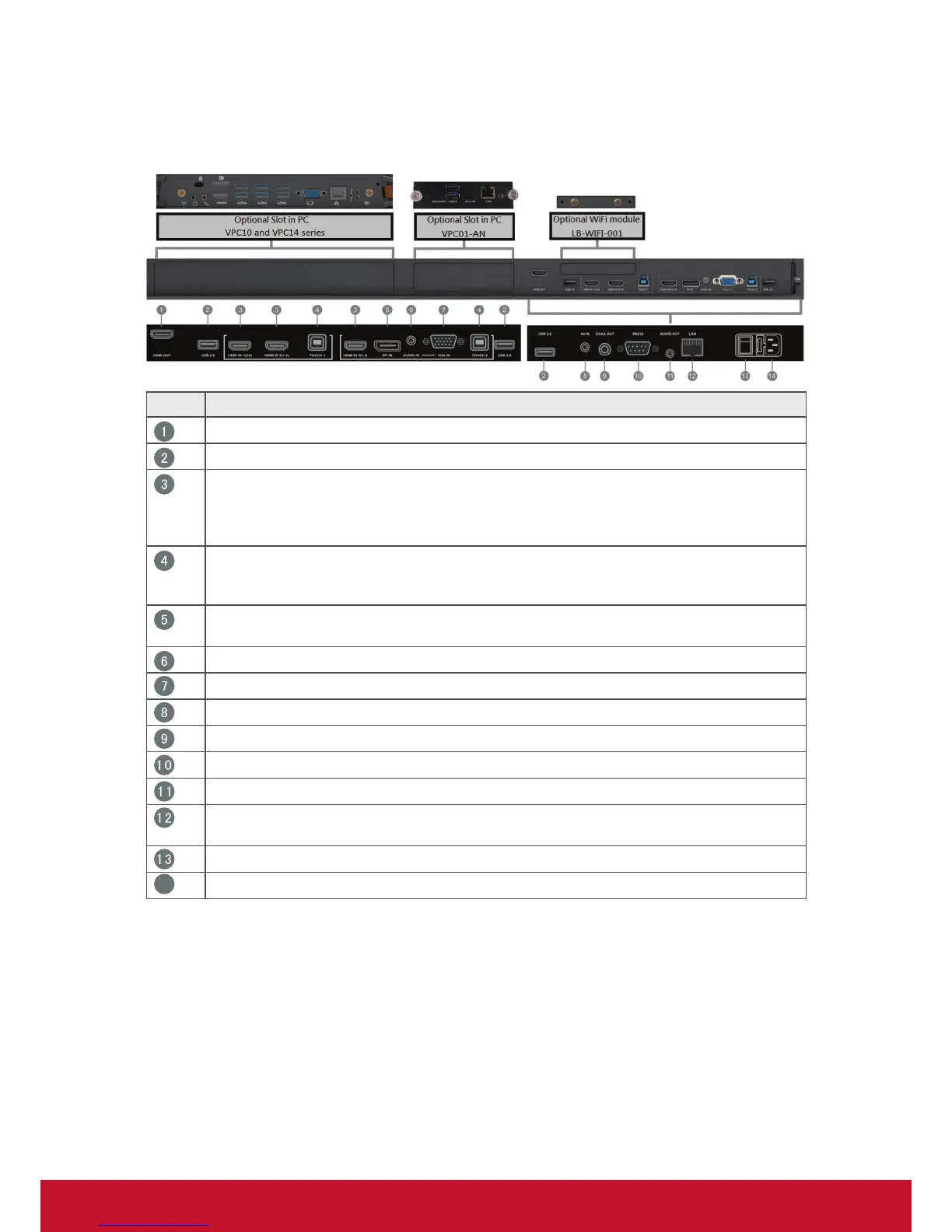

2.2 Terminal Interface Overview
Item Description
Extend content out to another display devices
USB port for Embedded Player
High-definition multimedia interface signal input, connect to PC with HDMI
output, set-top box, or other video device
HDMI 1 supports up to 3840x2160@60Hz
HDMI 2 and 3 support up to 3840x2160@30Hz
Touch signal output to the external PC
Touch 1 for HDMI IN 1 and 2
Touch 2 for HDMI IN 3, DP IN and VGA IN
Connected to devices with DisplayPort output function
DP supports up to 3840x2160@30Hz
External computer audio input
External computer image input
Composite video and audio input
Coaxial output
Serial interface, used for mutual transfer of data between devices
Audio output to the external speaker
Standard RJ45 (10/100MHz) Internet connection interface(This network
port is used for Embedded Player and Slot in PC)
Power On / Off switch
14
AC power input
