ViewSonic M1 - Projection Dimensions

12
Projecon Dimensions
• 16:9 Image on a 16:9 Screen
NOTE: 

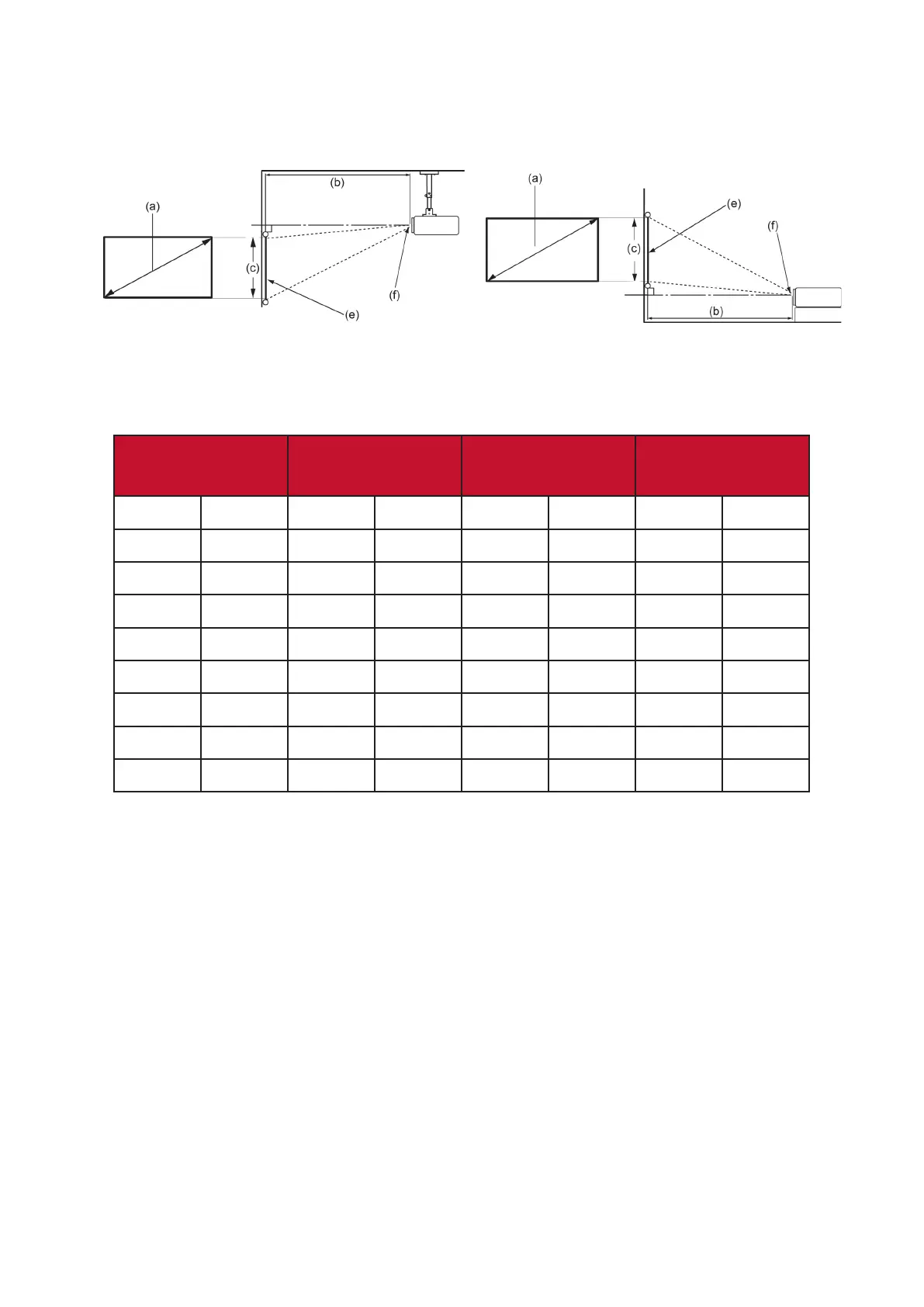

16:9 Image on a 16:9 Screen
(a) Screen Size
(b) Projecon
Distance
(c) Image Height Image Width
in.
cm
in.
m
in.
cm
in.
mm
30 76.2 32.16 0.82 14.7 37.36 26.15 664
40 101.6 42.88 1.09 19.6 49.81 34.86 886
50 127 53.6 1.36 24.5 62.26 43.58 1107
60 152.4 64.32 1.63 29.4 74.72 52.29 1328
70 177.8 75.04 1.91 34.3 87.17 61.01 1550
80 203.2 85.76 2.18 39.2 99.62 69.73 1771
90 228.6 96.48 2.45 44.1 112.07 78.44 1992
100 254 107.2 2.72 49 124.53 87.16 2214
NOTE: There is a 3% tolerance among these numbers due to optical component

distance before permanently installing the projector.
